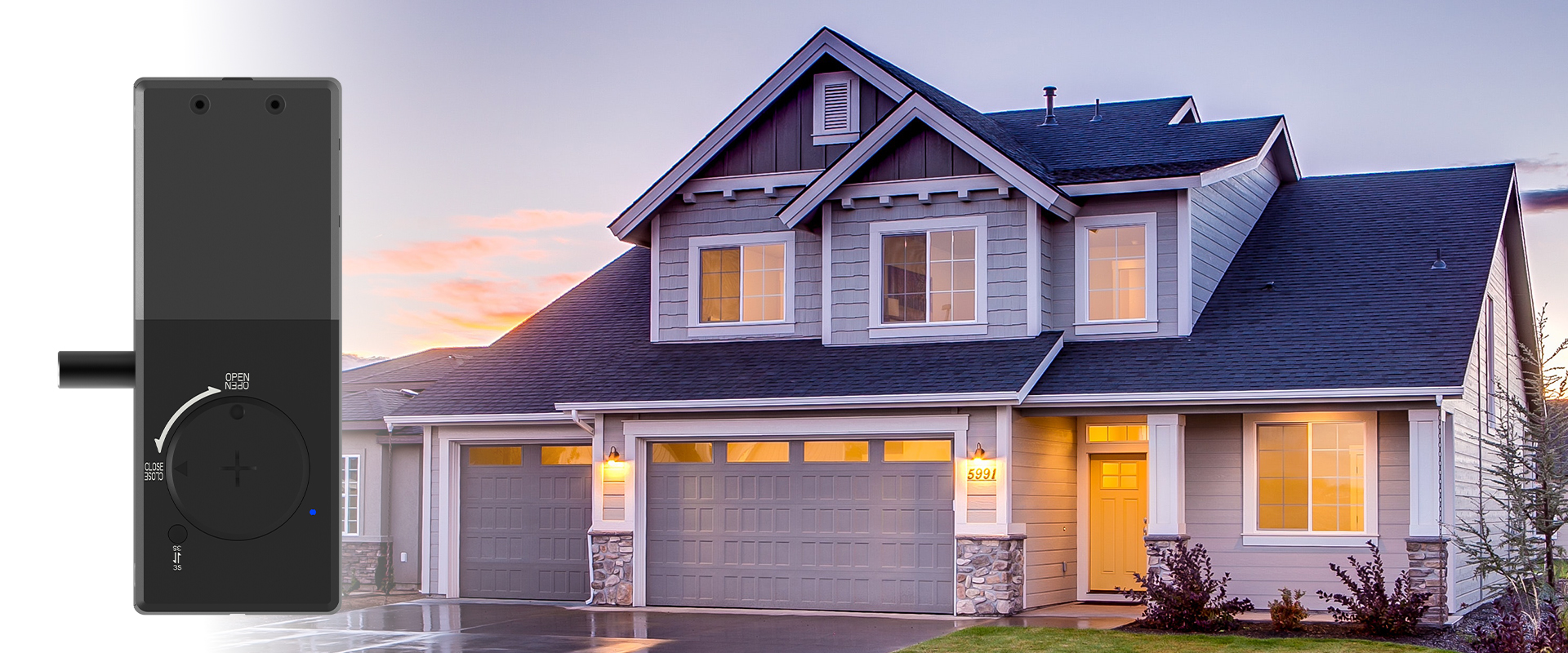

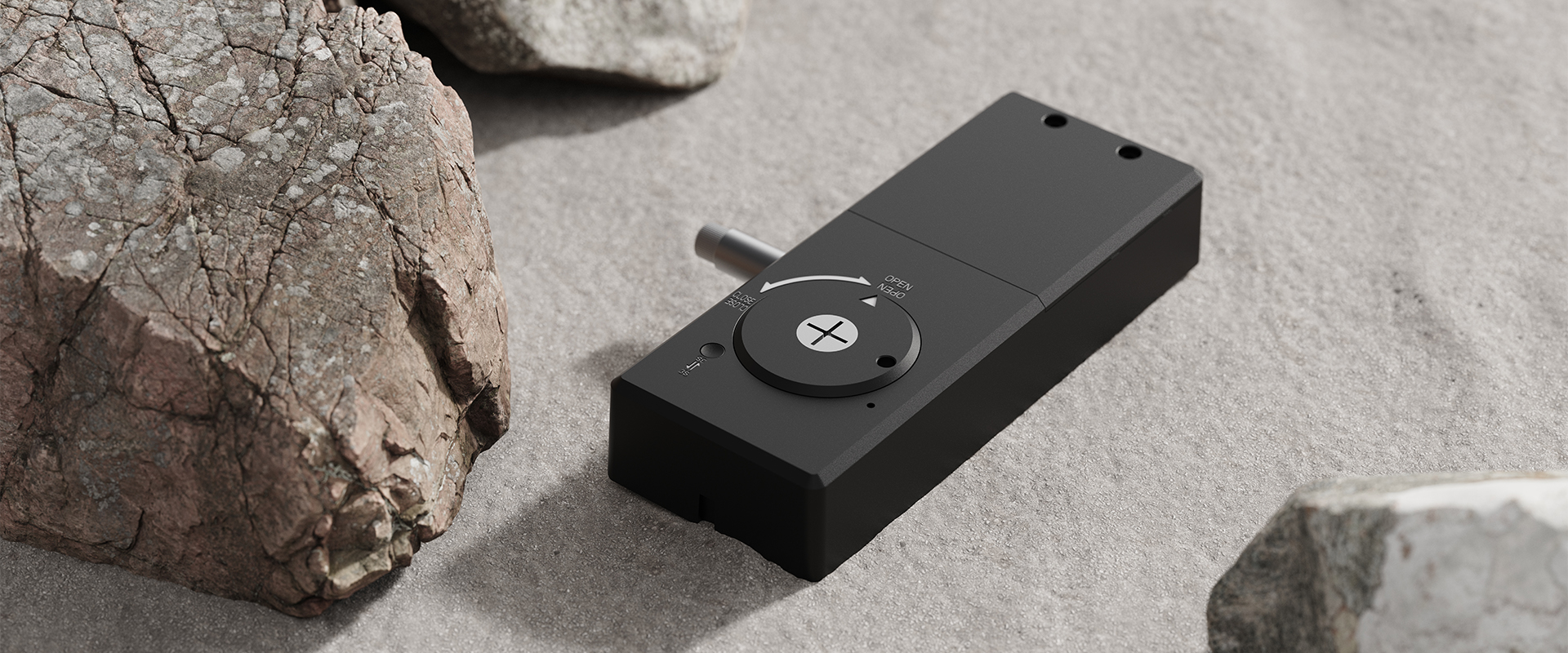

WIRELESS E-LOCK

E-LOCK

E-LOCK

Description:

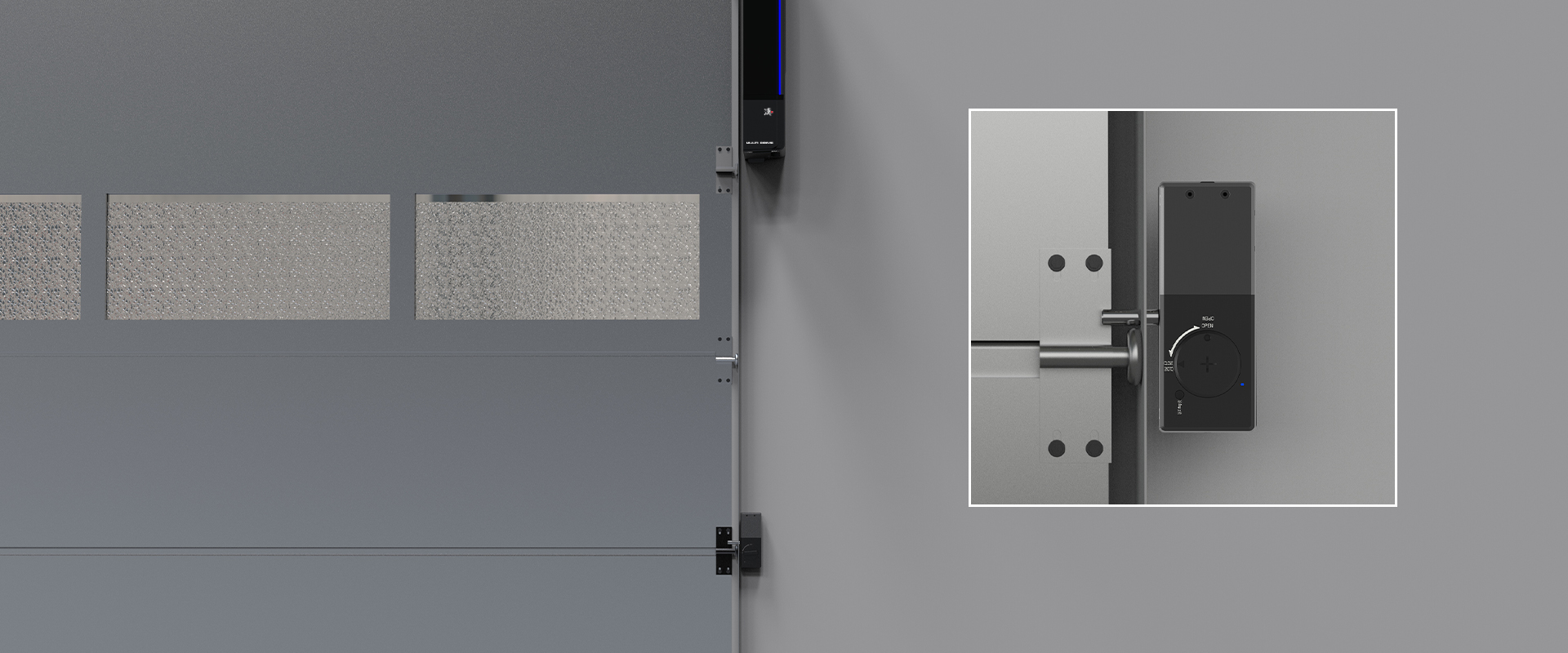

The E-Lock is only compatible with the Force Door Multi-drive version and all DC/FC/AC industrial door versions.


Parameter:

Radio technology:                              Trio-Frequency technology

Frequency:                                         Multi from 409.025 MHz - 458.4 MHz

Signal modulation:                             FSK

Signal range:                                      20 meters

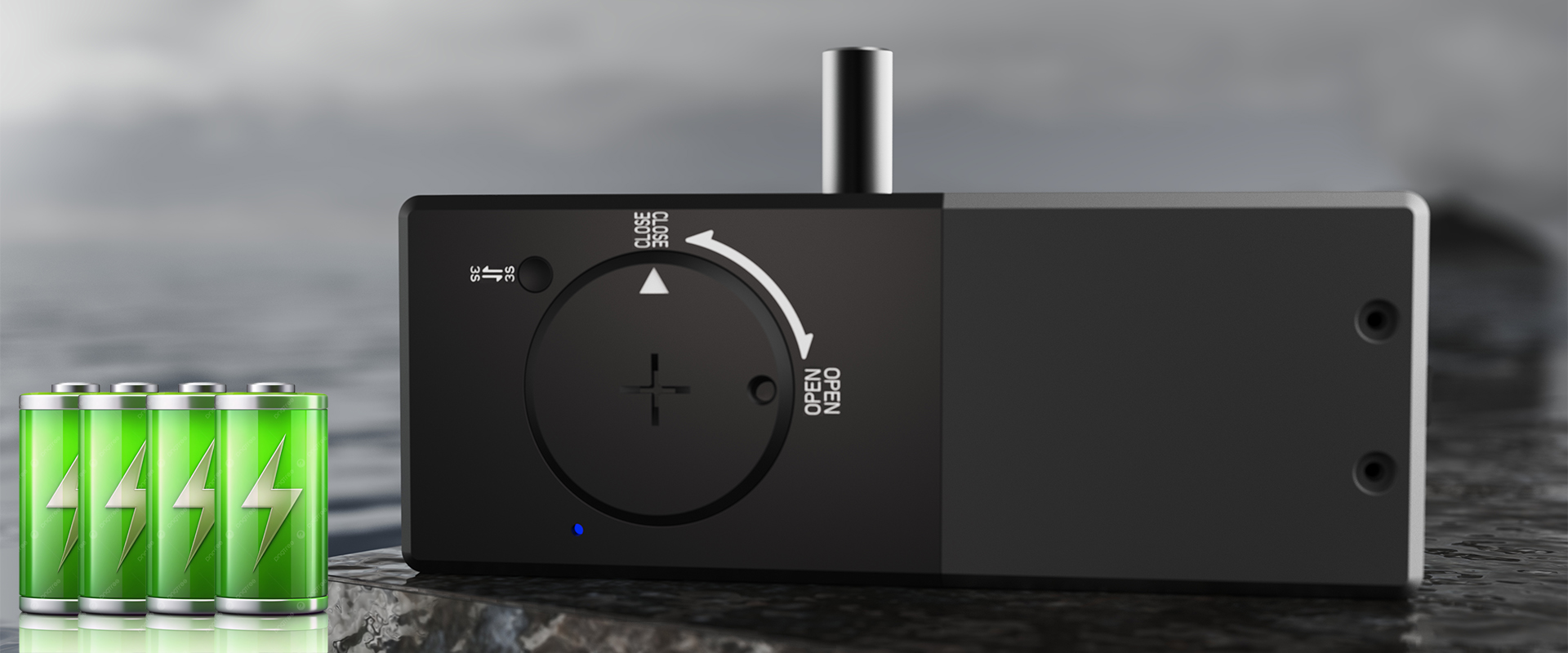

Power supply:                                    6V DC (4 x 1.5V AAA battery)

Battery capacity:                                1500 mAh

Standby consumption:                      72ua

Operation consumption:                    200mA

Uncaging time:                                  0.3s

IP grade:                                             IP 43

Operating temperature:                     -20°C+60°C


Technology & Standards

2014/53/EU(EU Regulations)

2006/42/EC(EU Regulations)

EMC CISPR32(Australian regulations)
