MULTI DRIVE GARAGE & COMMERCIAL DOOR OPENER

Multi Drive - a new innovative operator for garage / commercial doors
Support side installation, rail installation and middle shaft installation;

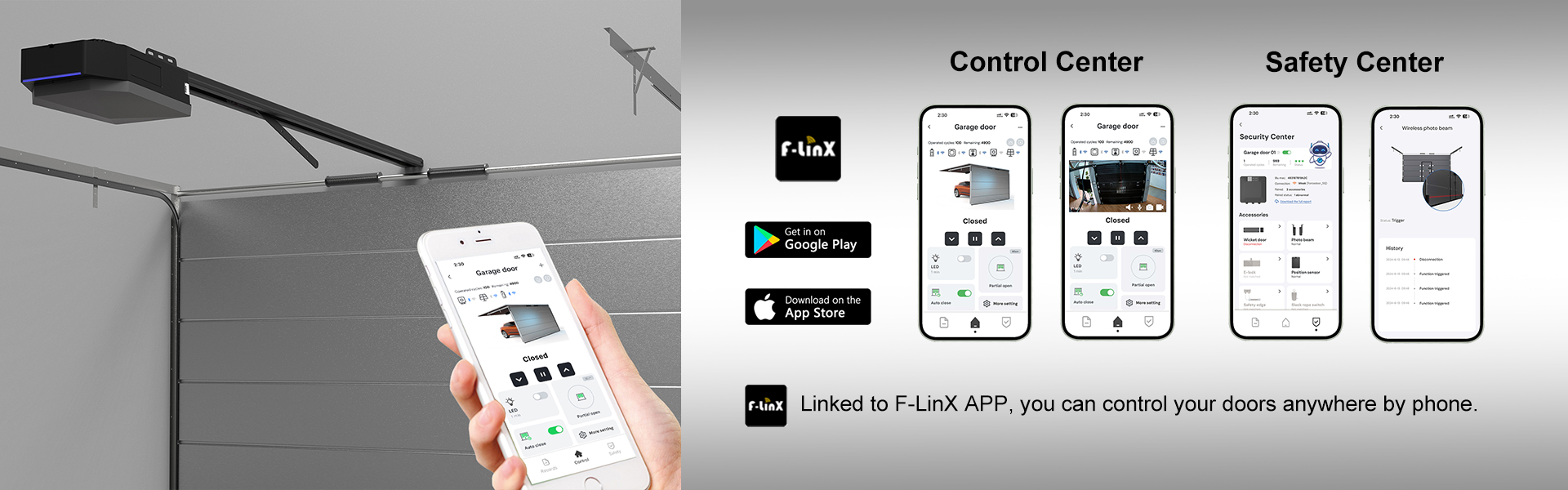

Bulti-in Wifi modular, allow user control your garage / commercial doors everywhere of the world by F-linx APP.

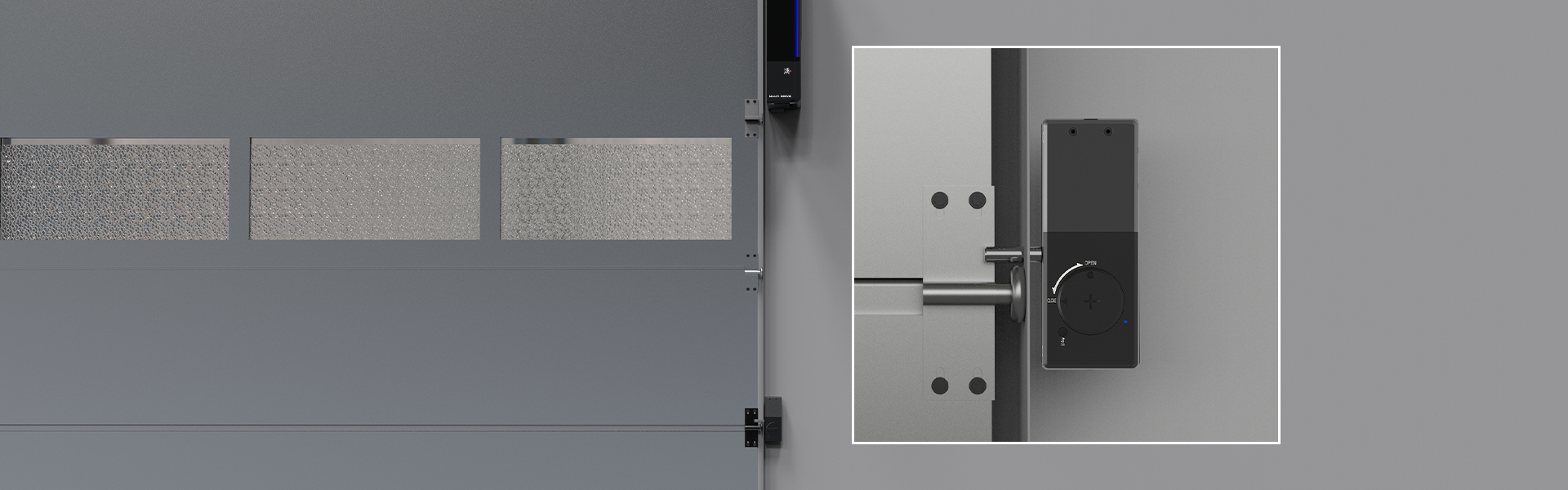

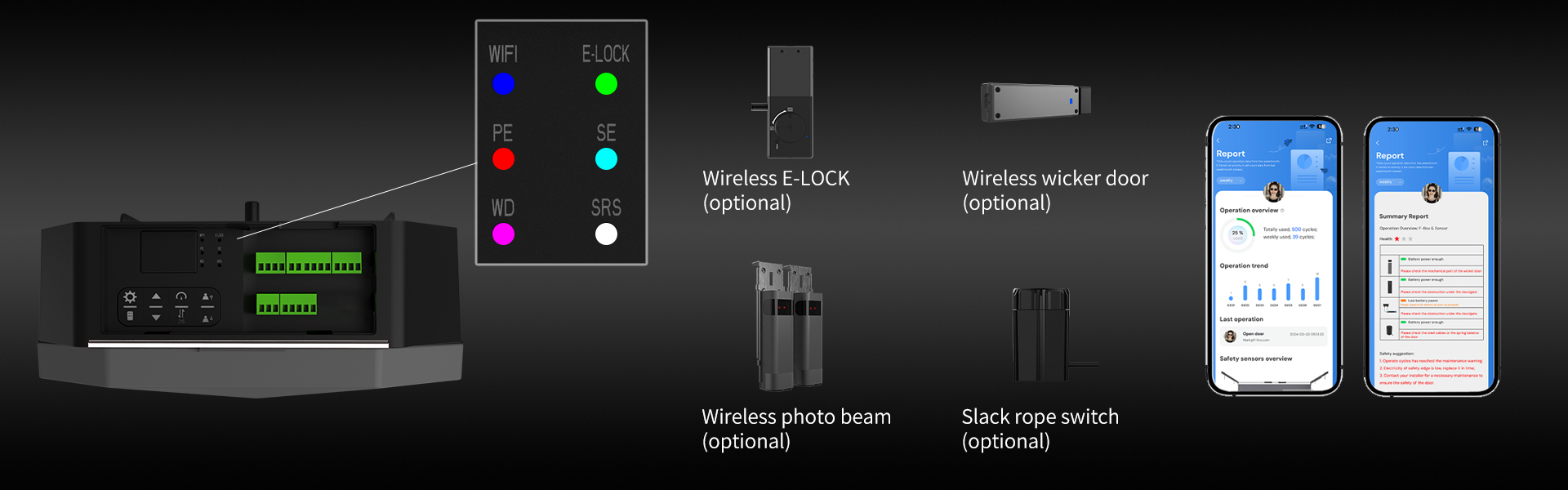

Bulti-in wireless safety receiver modular, support pairing wireless safety accessories directly, e.g. wireless E-LOCK, wireless photo beam, wireless wicket door switch and wireless safety edge;

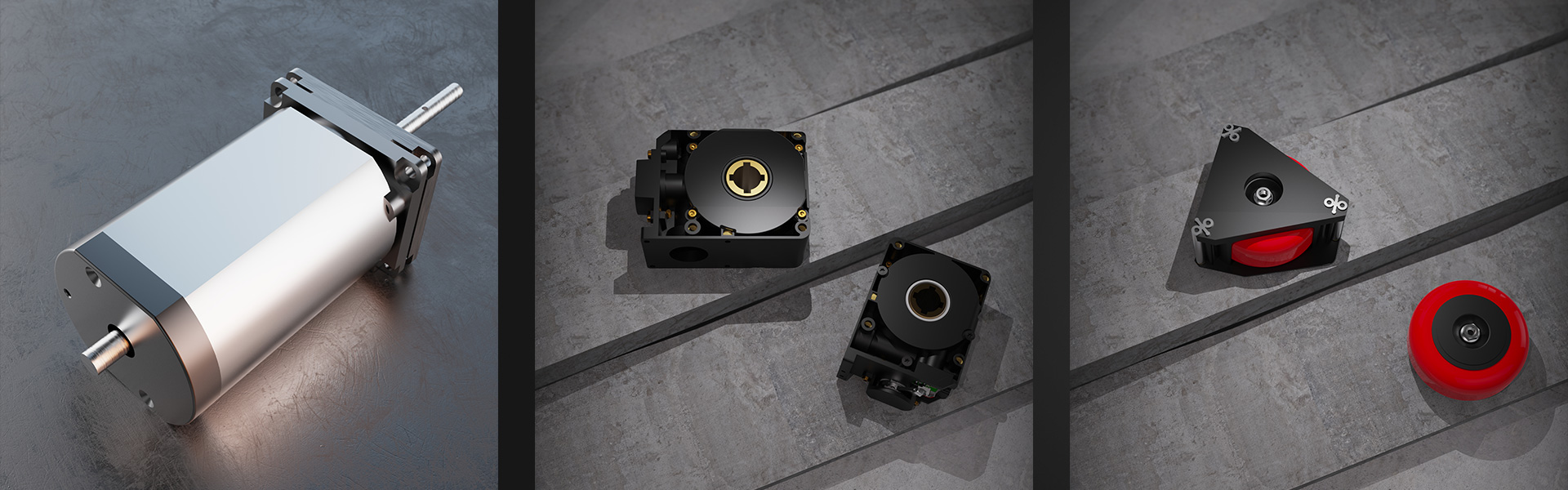

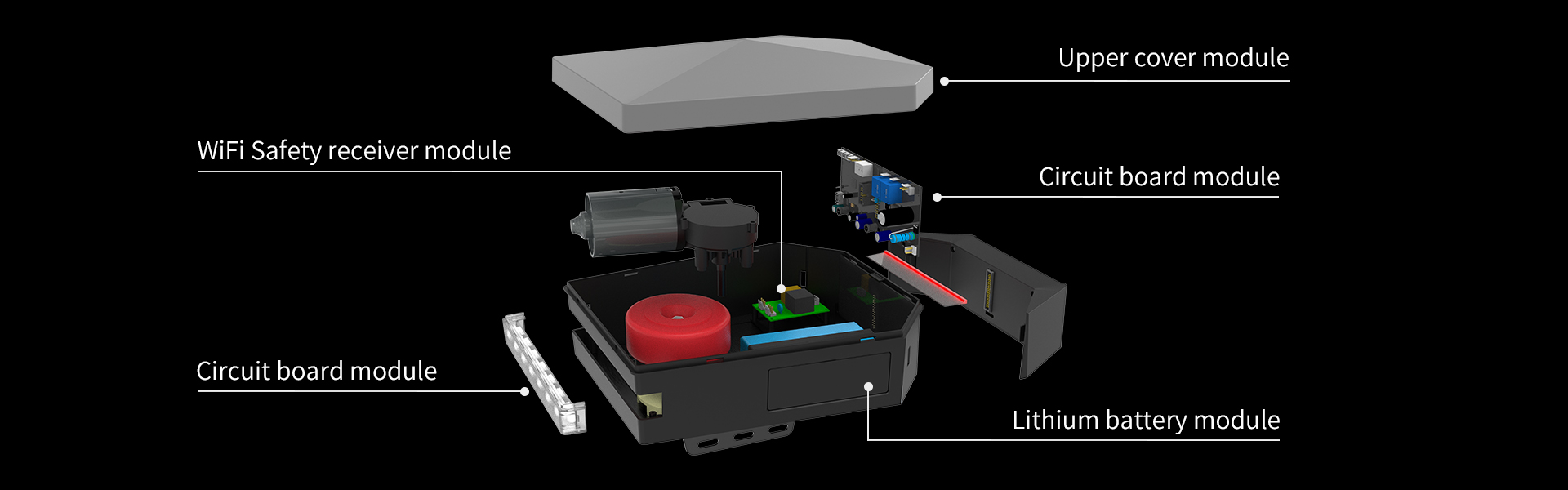

Modular design, easy to upgrade(STD to PRO) and maintain;

Parameters

Model1000N / 18N.m1500N / 25N.m1800N / 35N.m
Max. output torque                25Nm30Nm35Nm
Rated output torque                21Nm26Nm31Nm

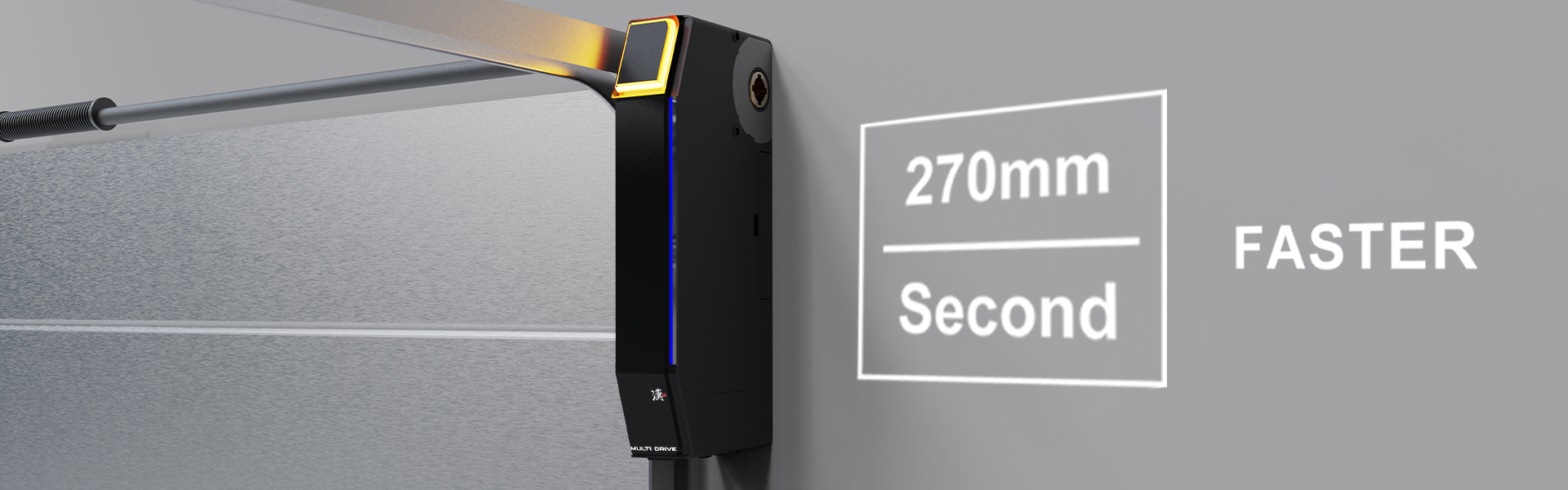

Output speed24-40rpm
Output shaft/hollow shaft       φ25.4 mm
Input voltage                                   110-127V or 220-240V
Static holding  torque                           200Nm
Motor power                280W330W380W
Control system                           30V DC
Duty rating

Door area ≤10m²    60cycles/H (Max)

Door area＞10m²    20cycles/H

Limit switch range15 turns
Temperature range

-20°C~+60°C

Installation

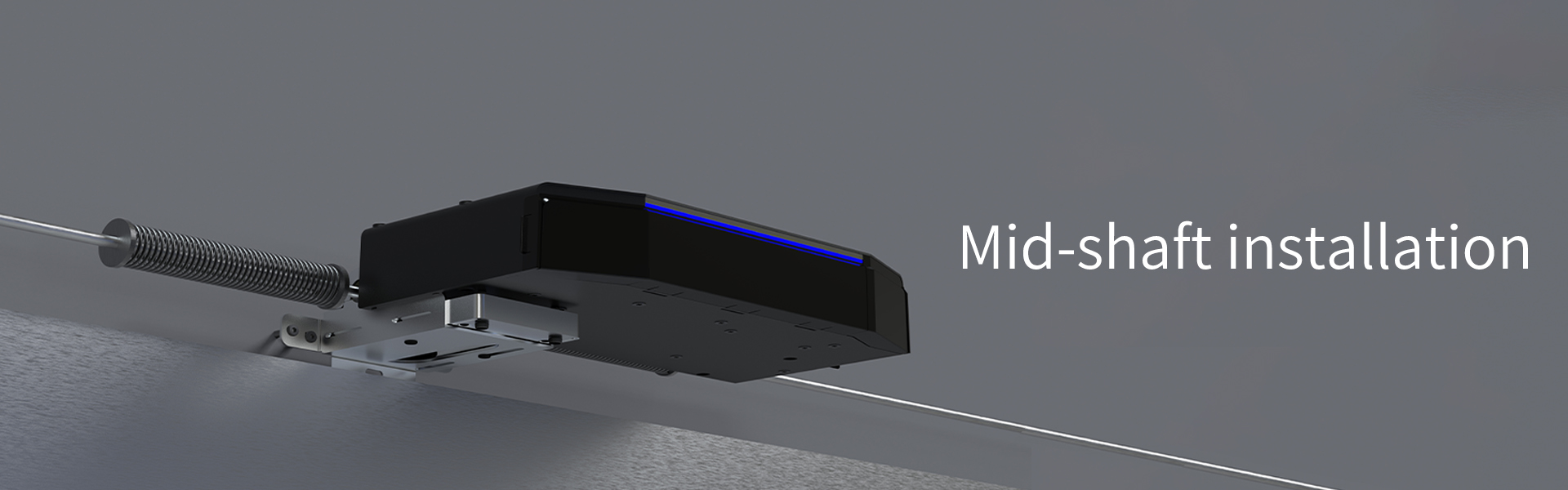

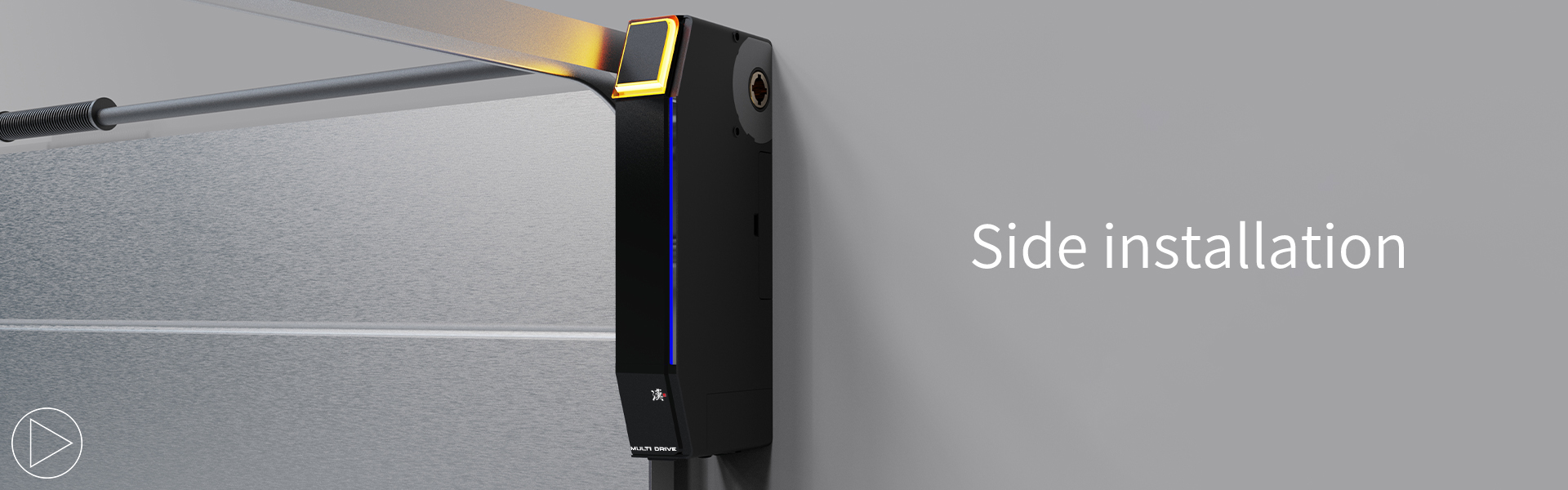

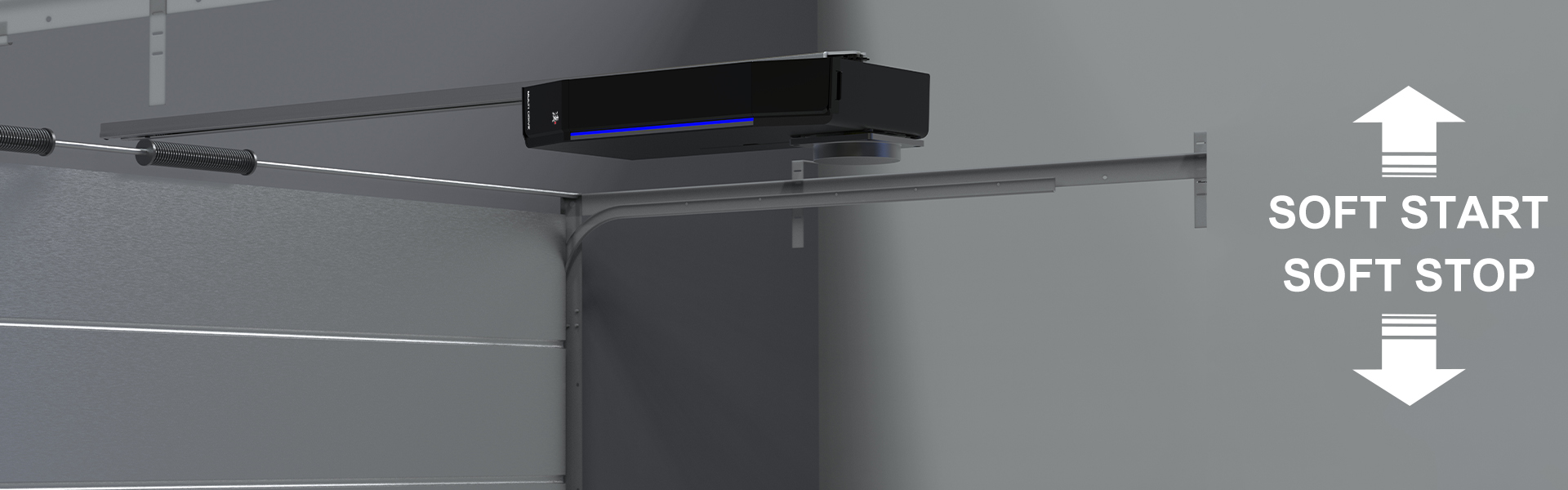

Side installation, Mid-shaft installation, Rail installation

Recommendation: Door Size










Standard LiftHigh LiftVertical Lift



Side installation

1000N / 18N.m12m²12m²10m²
1500N / 25N.m15m²15m²13m²
1800N / 35N.m18m²18m²16m²




Mid-shaft installation

1000N / 18N.m10m²10m²8m²
1500N / 25N.m12m²12m²10m²
1800N / 35N.m14m²14m²12m²

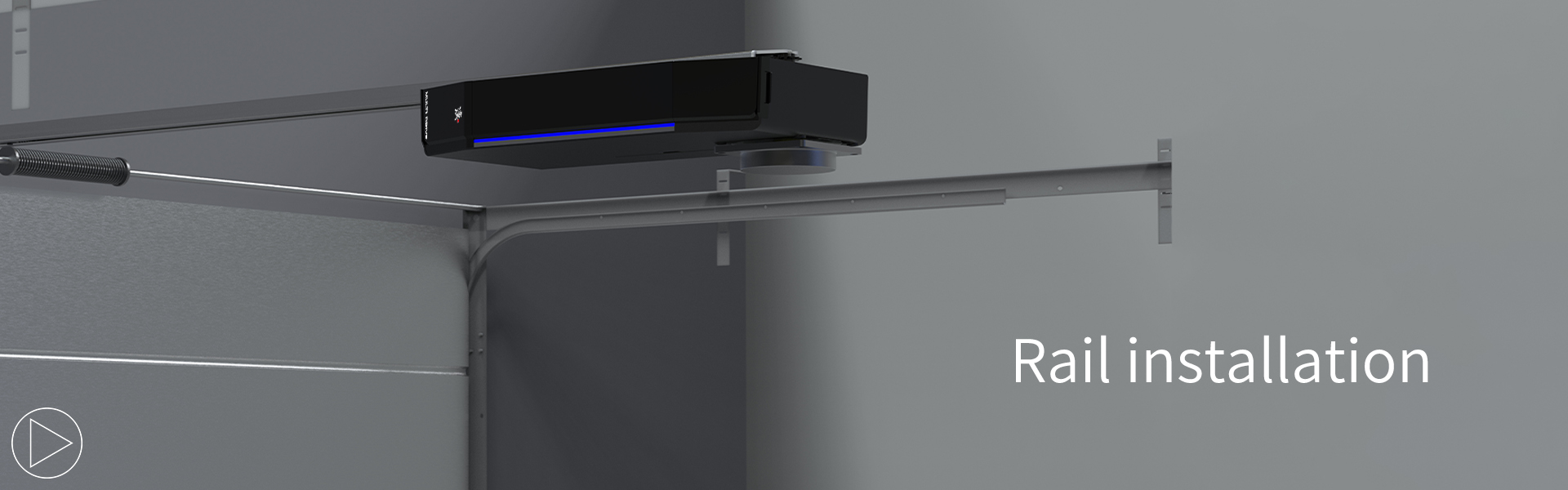

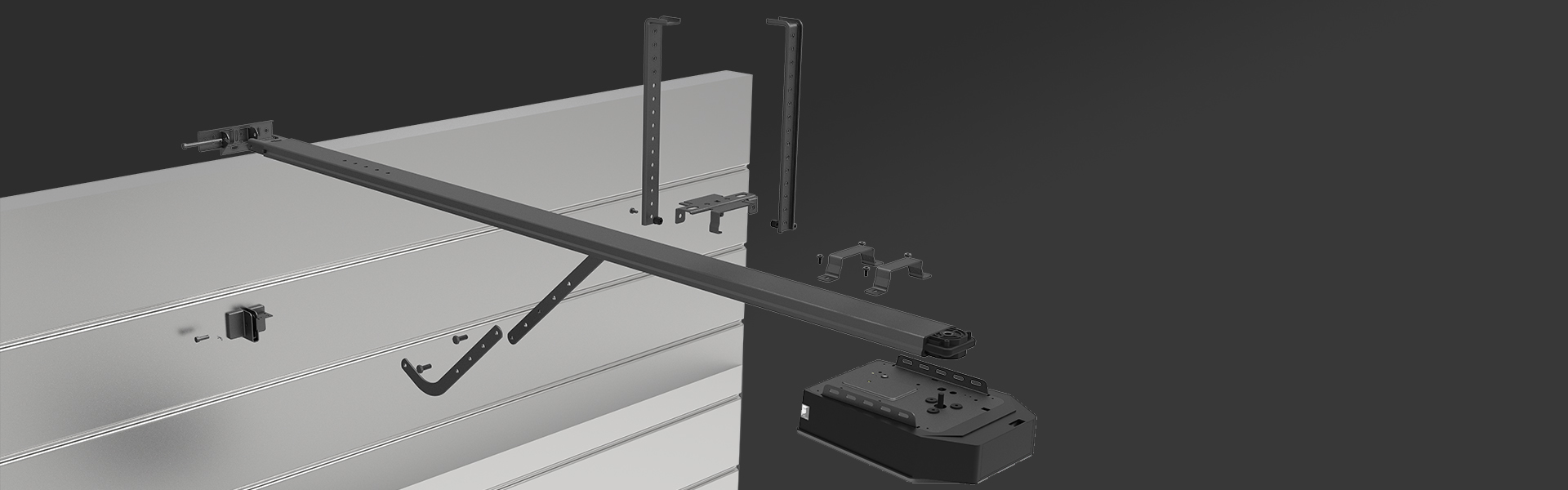

Rail installation


1000N / 18N.m1500N / 25N.m1800N / 35N.m

12m²14m²16m²




- The above door area recommendation only based on the insulated door panel with 40mm thickness, and the door weight ≤11KG per sq.m.

- The above door area recommendation only based on a well spring balanced garage / commercial doors.




Technology & standards

All of our door motors garage are CE, RCM & TUV certified for the entire European & Australian market. Our products have EN12453 & EN12445 and include all of the options to make your products smart and compatible in home automation.

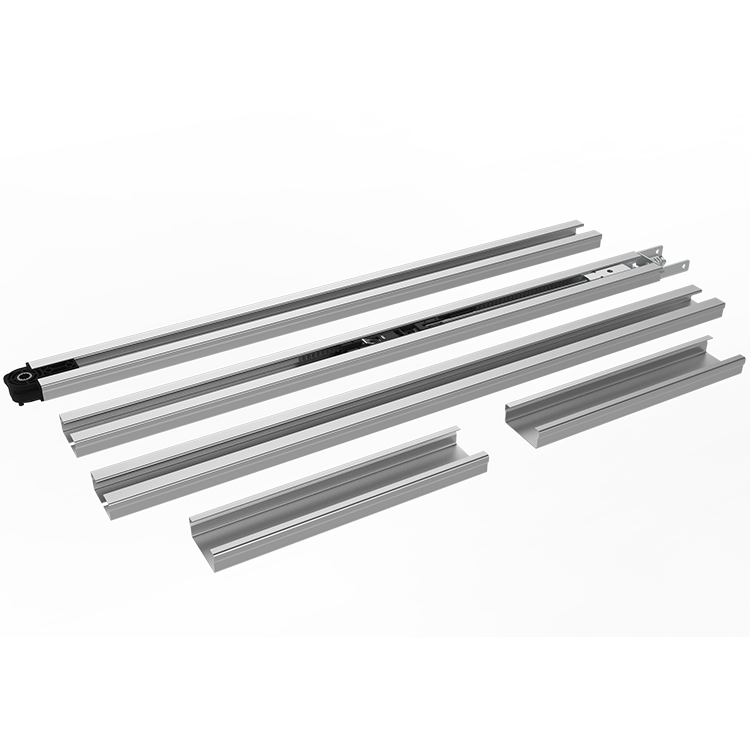

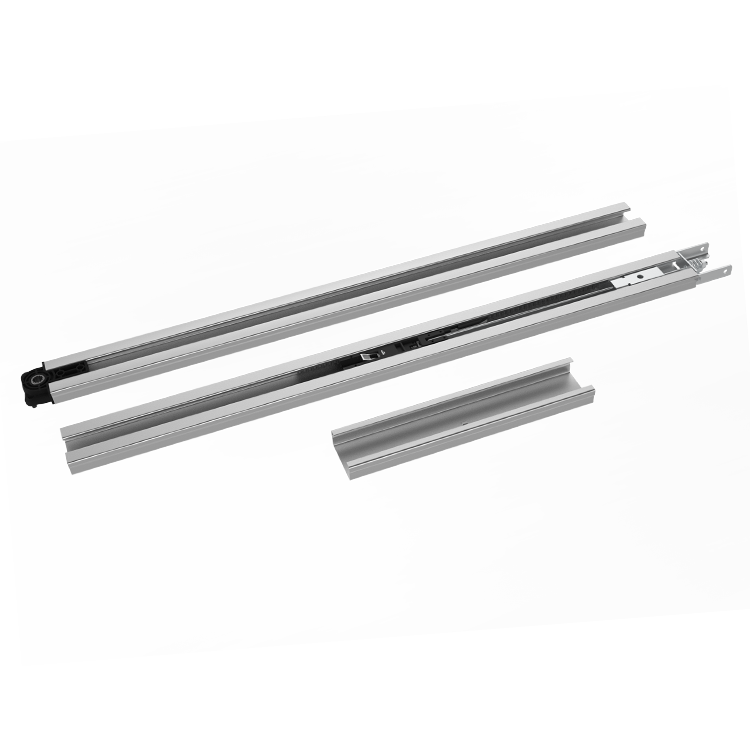

C-RAIL



Single C rail

Length(mm)3300                      4000
For doors up(mm)2450                     3200

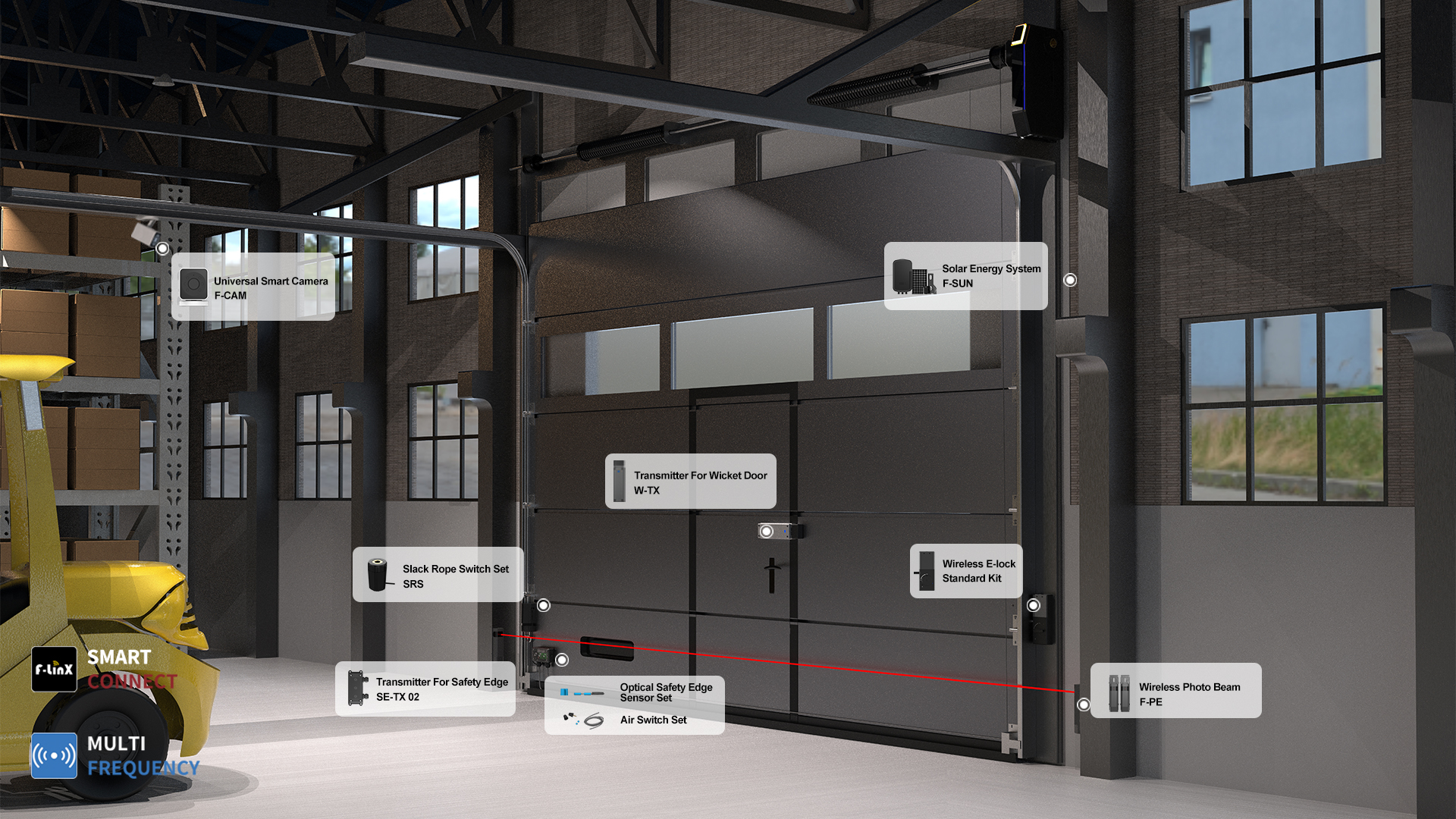

Recommended accessories



Universal smart camera

Support cloud and T card storage

Support montion detection, send you a thumbnail alert and notifications

Two-way audio, you can listen and talk remotely from your phone

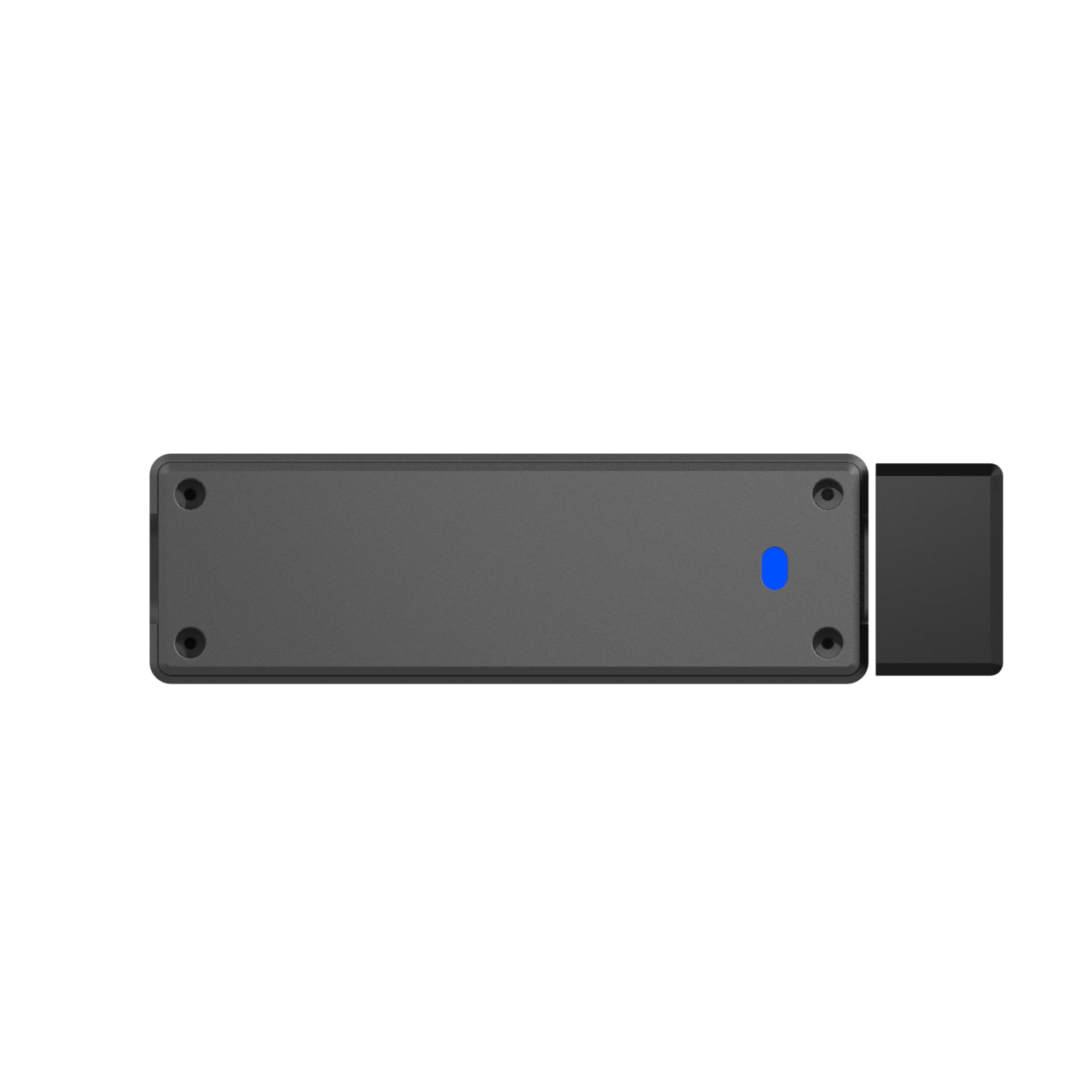

Wicket transmitter for wicket doors      Magnetic sensor, contact-free magnetic detector

Height adjustable mounting base for the various wicket doors frame

Trio-Frequency technology for anti-interference

Approximate battery life of 2 years

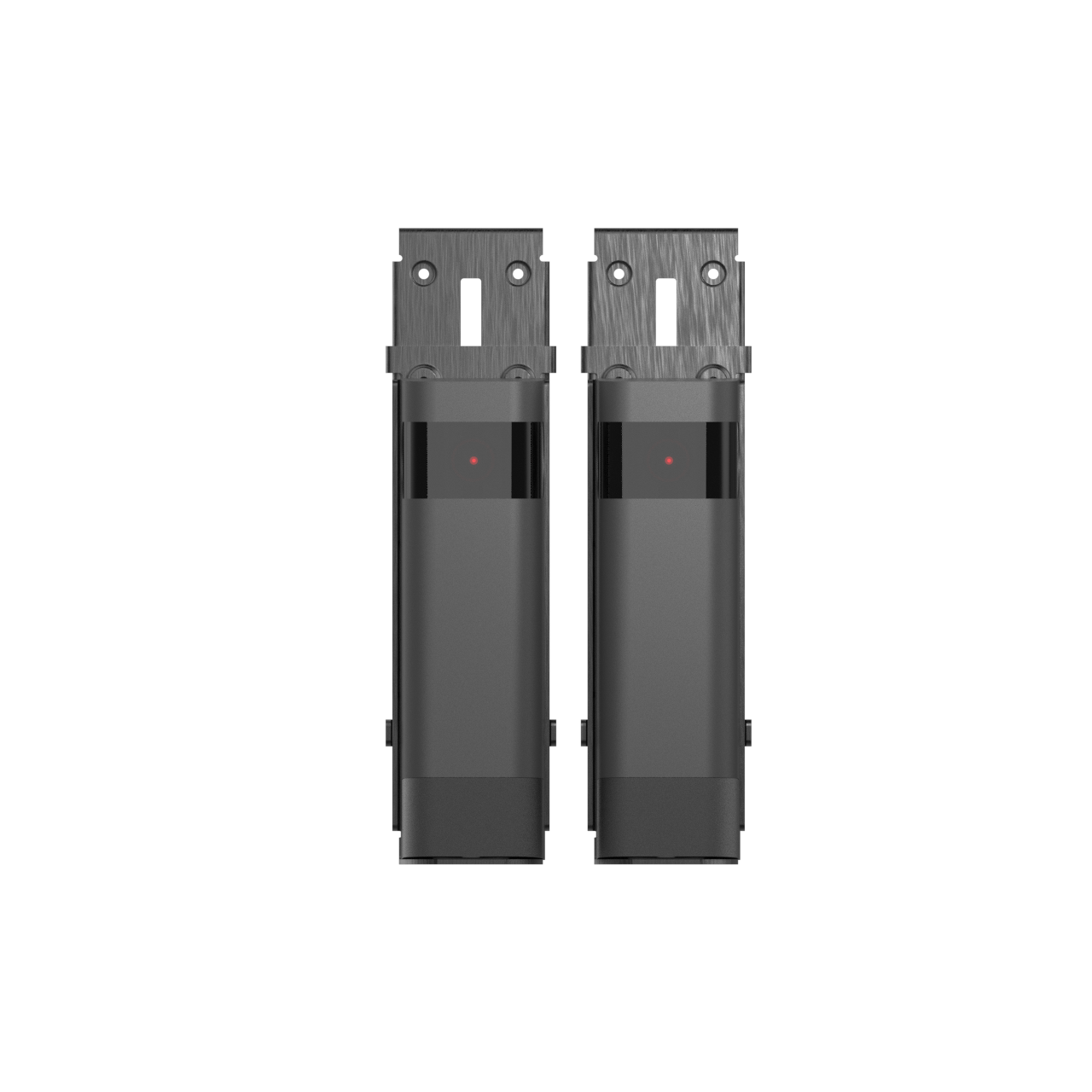

Transmitter for photo beam

Trio-Frequency technology for anti-interference

Both the transmitter and the receiver are connectable to the contact of a mechanical or resistive safety edge with NC or NO contacts

Adjustable switch to adjust the infrared beam transmitting power for various environment

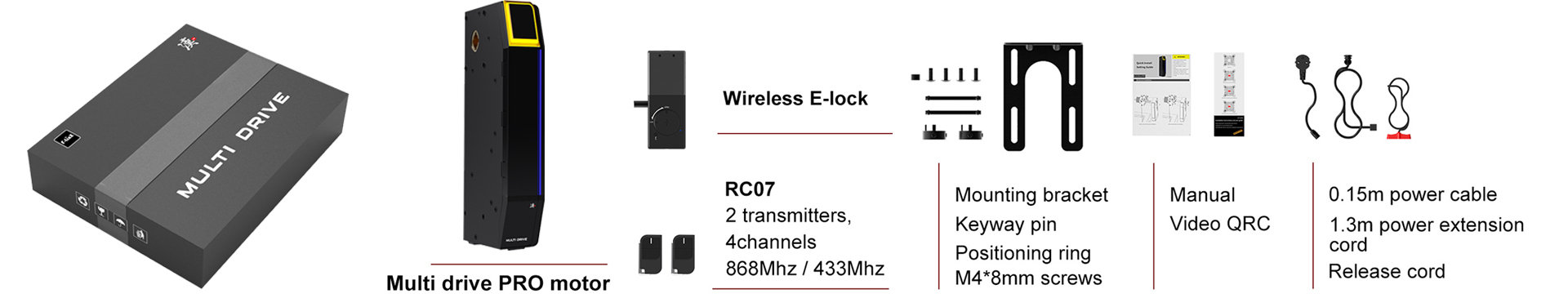

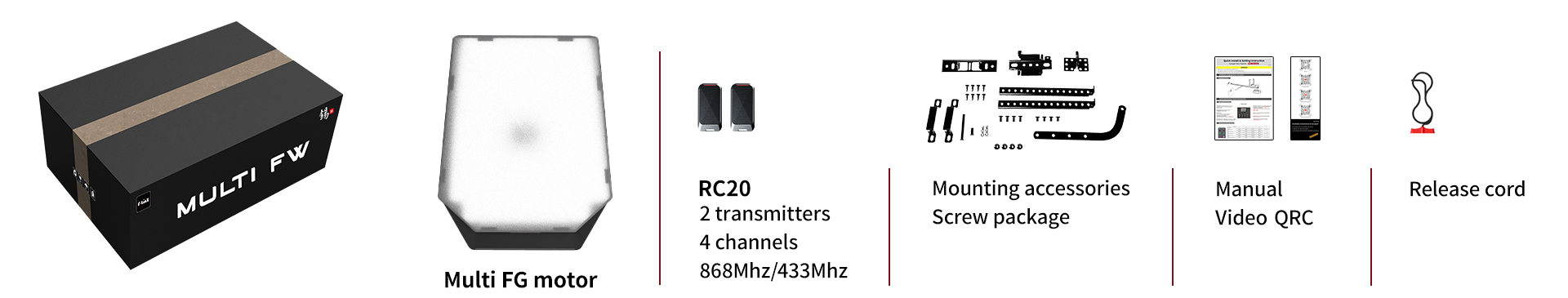

STANDARD KIT
