F-BEAM

Description:

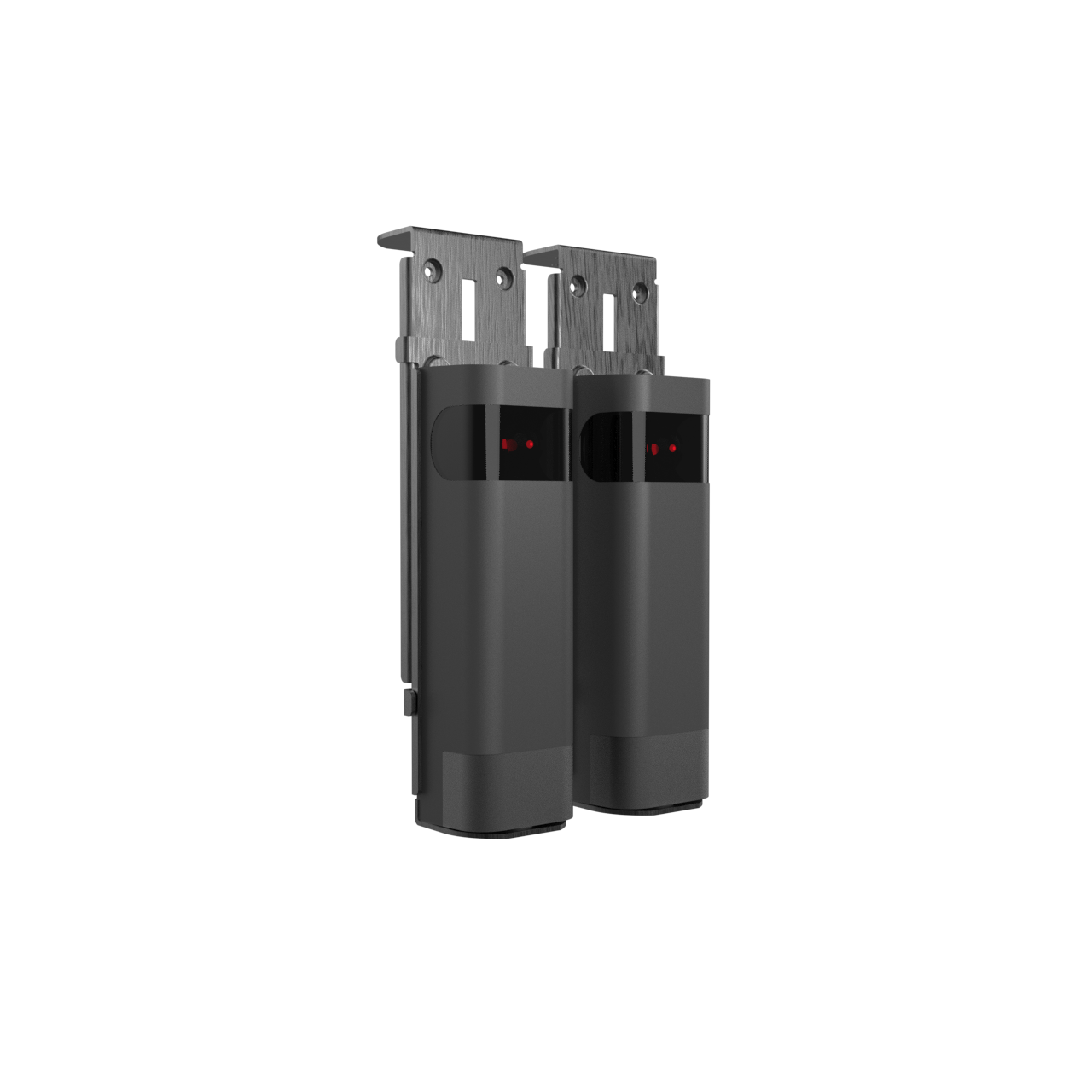

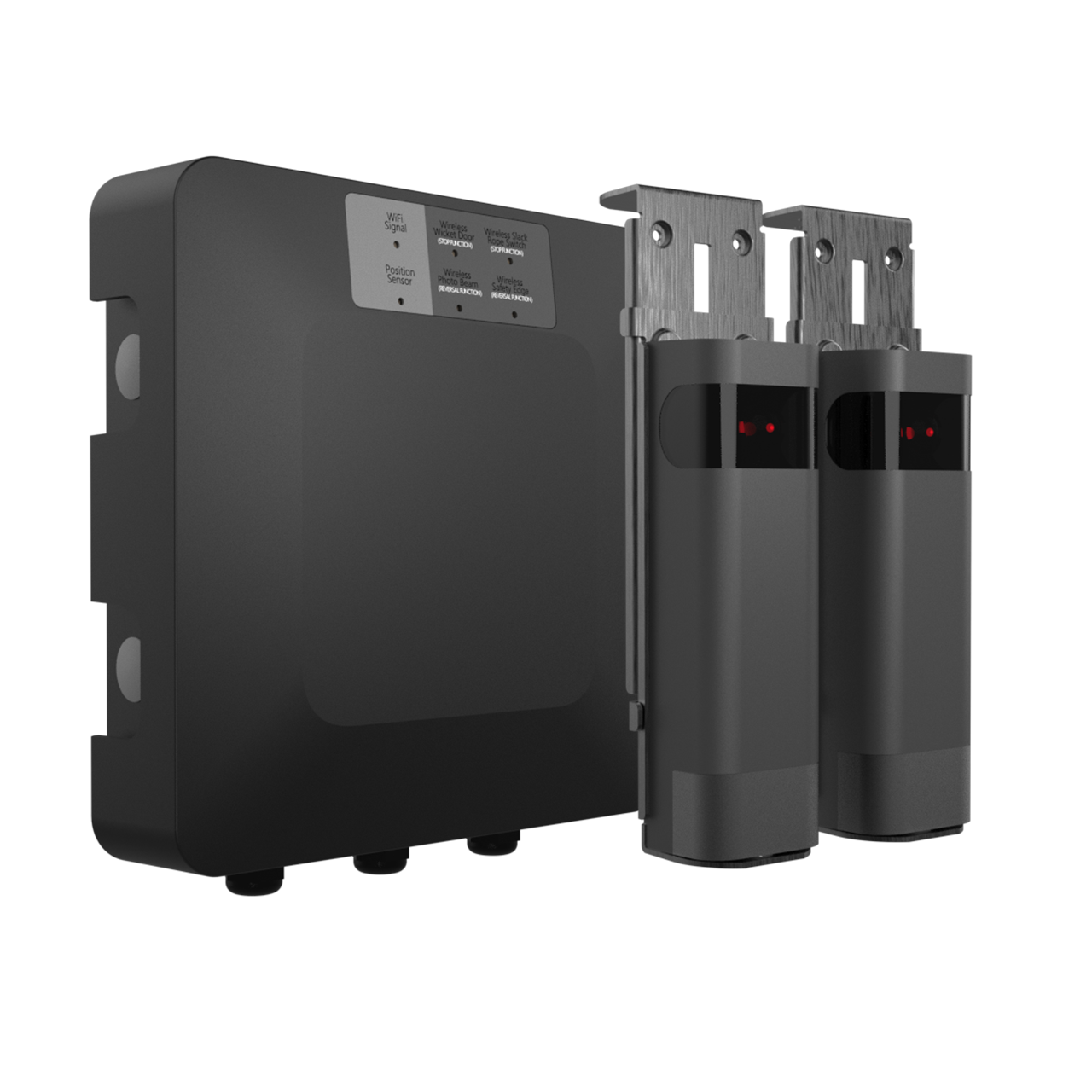

Wireless communication using multi frequency technology between F-box and wireless photo beam.

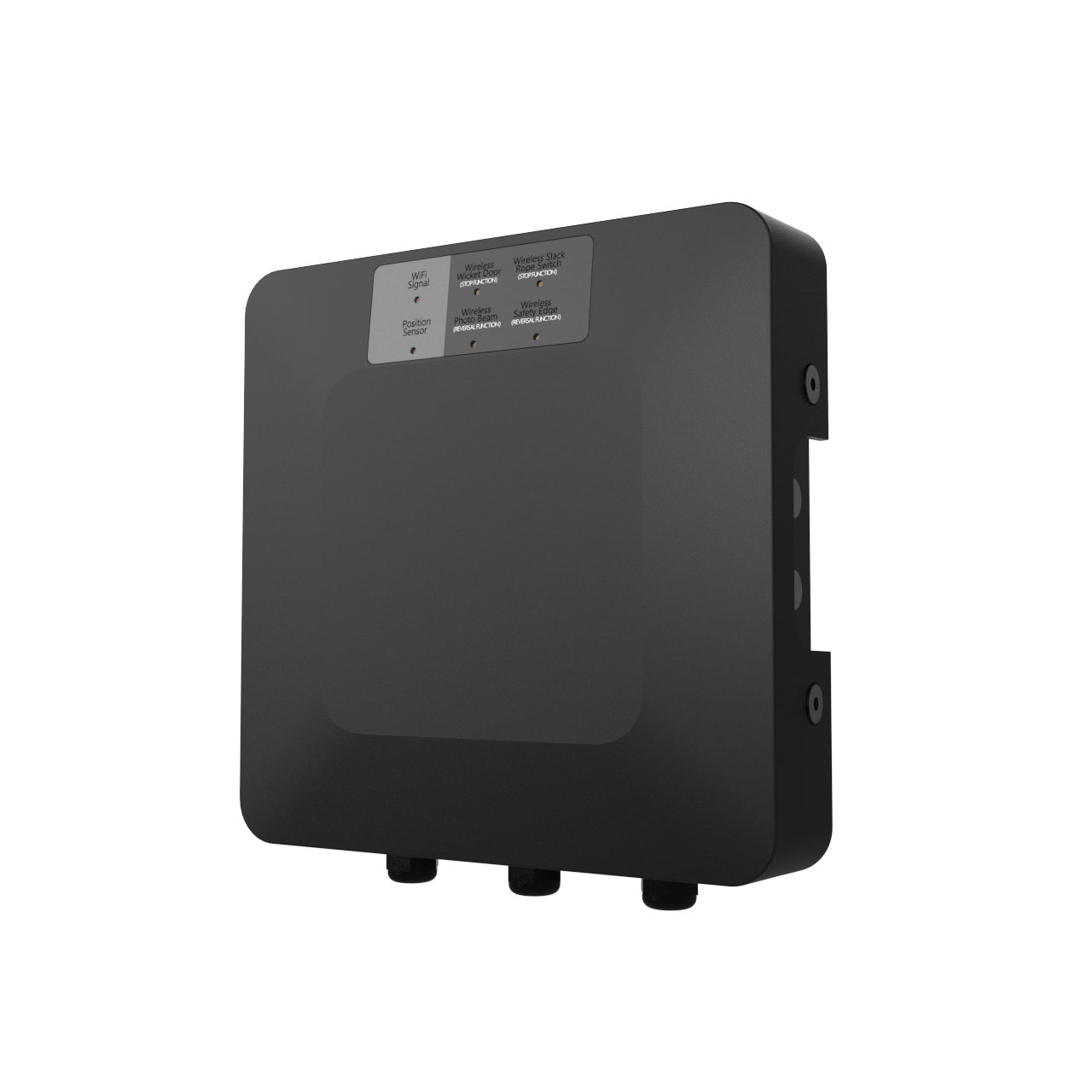

The F-box with a built-in WiFi module, this allow users to linked with "F-linX" APP for "safety center" to track all information about wireless photo beam of the door and gates.


Parameter:

Radio technology:                              Trio-Frequency technology

Frequency:                                         Multi from 409.025 MHz - 458.4 MHz

Signal modulation:                             FSK

Signal range:                                      20 meters

Power supply:                                    3.6V DC (1 x 3.6V lithium battery)

Channels:                                           2 channels

Battery capacity:                                2600 mAh

Transmitting power adjustable:          Yes

Adjustable Angle for Tx and Rx:         Horizontally (-90° ~ +90°)

Operating consumption:                     7 meters - 35uA

                                                           10 meters - 49uA

RX consumption:                                Operation - 5.3mA

                                                            Standby - 60uA

IP grade:                                             IP 65

Operating temperature:                      -20°C ~ +60°C


Technology & Standards

RED Directive 2014/53/EU

Machine Directive 2006/42/EC

EMC Directive 2014/30/EU
