WUXI FORCE TECHNOLOGY CO.,LTD.

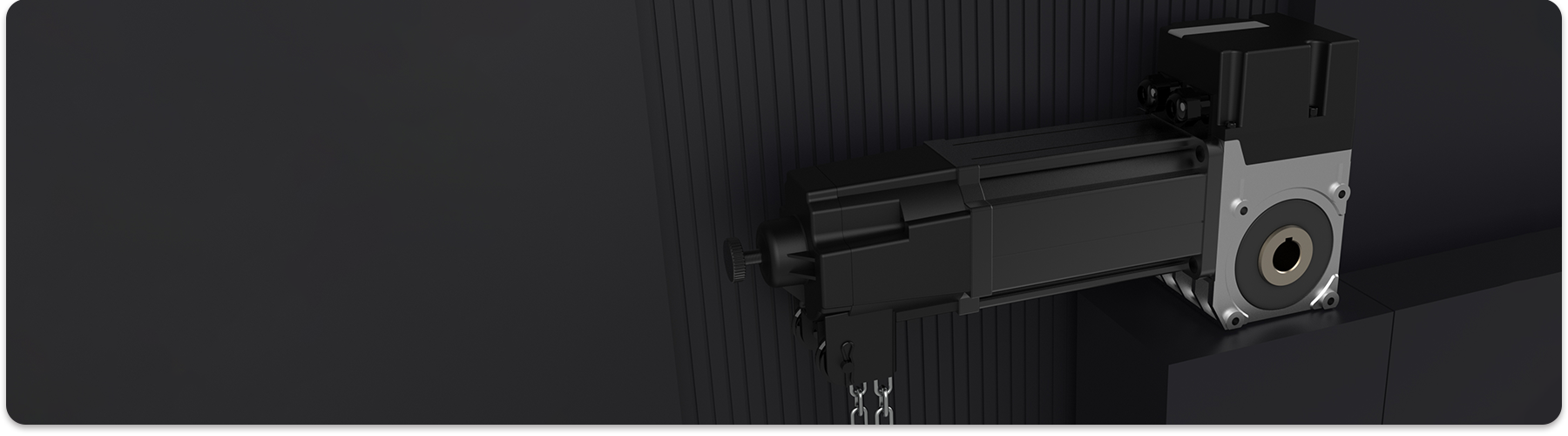

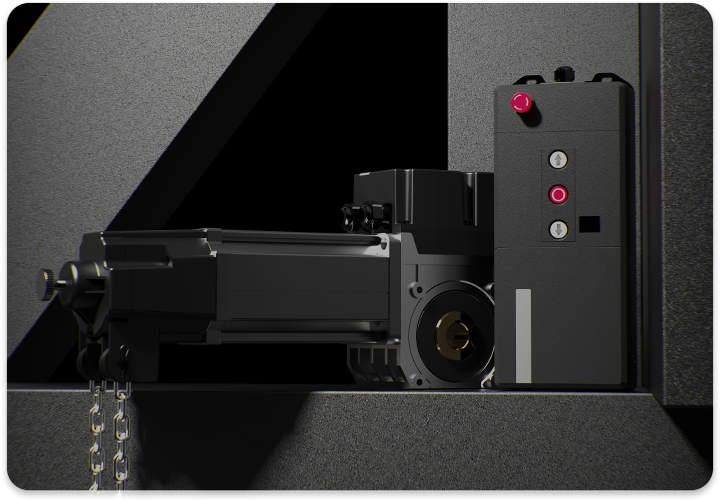

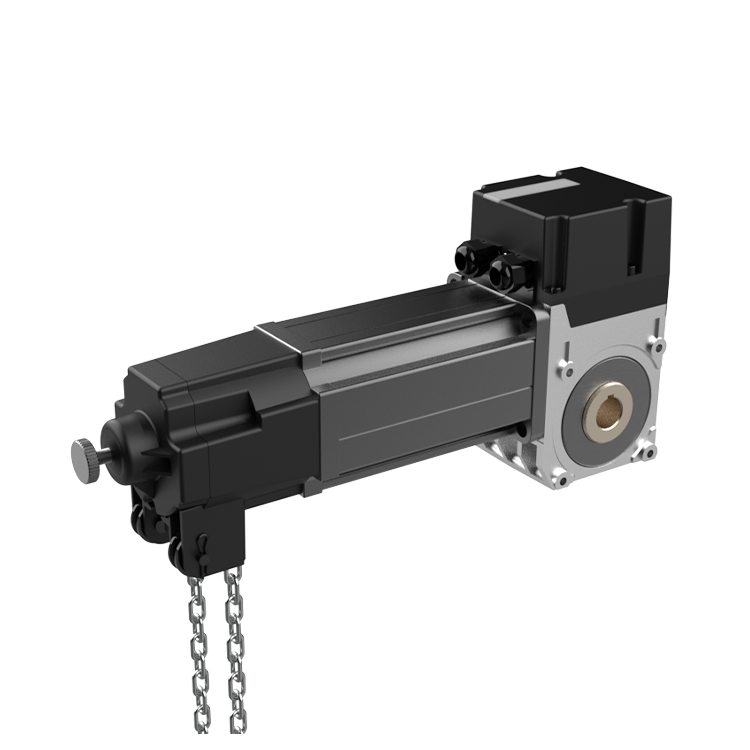

AC 90 STD 220V/400V Industrial Door Drive

Utilizing alternating current (AC) power, the openers offer powerful performance and consistent operation, making them ideal for demanding environments.

Recommendation:door size & weight

Standard lifting

Size & Weight

- Up To 30 M²

- Up To 390Kgs

High Lifting

Size & Weight

- Up To 30 M²

- Up To 390Kgs

Vertical lifting

Size & Weight

- Up To 30 M²

- Up To 390Kgs

PARAMETER

Max. output torque	100Nm
Rated output torque	90Nm
Output speed	24rpm
Output shaft/hollow shaft	φ25.4mm/φ31.8 mm
Static holding torque	400Nm
Door area		≤30m²
Input voltage		220V(1+10%), 400V(1+10%)
Standard Frequency		50Hz
Motor power		0.7KW
Control system		24V DC
Thermal protection temperature		120 °C
Max. cycles per hour		20 cycles
Class of protection		IP54
Limit switch		15 turns
Duty rating		S3=40%ED
Temperature range		-20°C~+60°C

RECOMMENDED ACCESSORIES

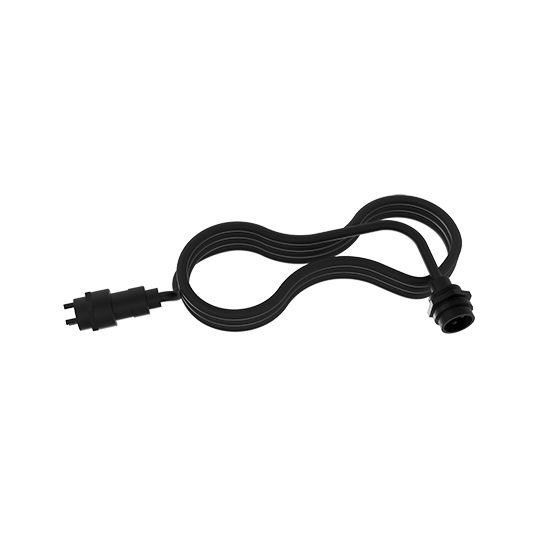

Wired optical safety edge kit

Optical safety edge with 5 wires spring cable for industrial doors

Voltage: DC12-24V

Power consumption: Below 6mA

Detection distance: 0.5m-10m

Error distance: Less than 10% of detection distance

Detect object: Translucent/Non-transparent ojects

Physical dimension: 37*13mm

IP grade: IP67

Operating temperature: -20℃ - +70℃

Wicket Door Switch Kit

For wicket door

trio-frequency technology for

anti-interference

Magnetic sensor, contact-free magnetic detector

Height adjustable mounting base for the

various wicket door frame

Flash light

Working voltage: 24V DC/AC & 80V-250V AC

Flicker frequency: 1 Hz

IP level: IP 64

Working temperature: -20℃ ~ +60℃

Inner antenna to extend the effective distance of controller

Model
More Model Choices for You! Unlocking Infinite Possibilities.

● AC 90 STD 220V / 400V
● AC 140 STD 400V
● AC 90 PRO 220V / 400V
● AC 140 PRO 400V
Integrated radio frequency receiver module
Optional: 433Mhz / 868Mhz

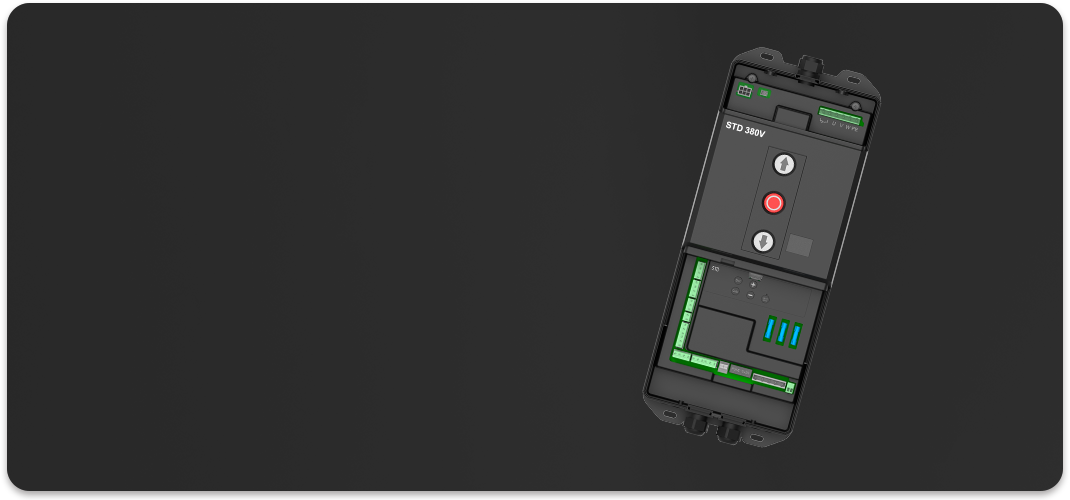

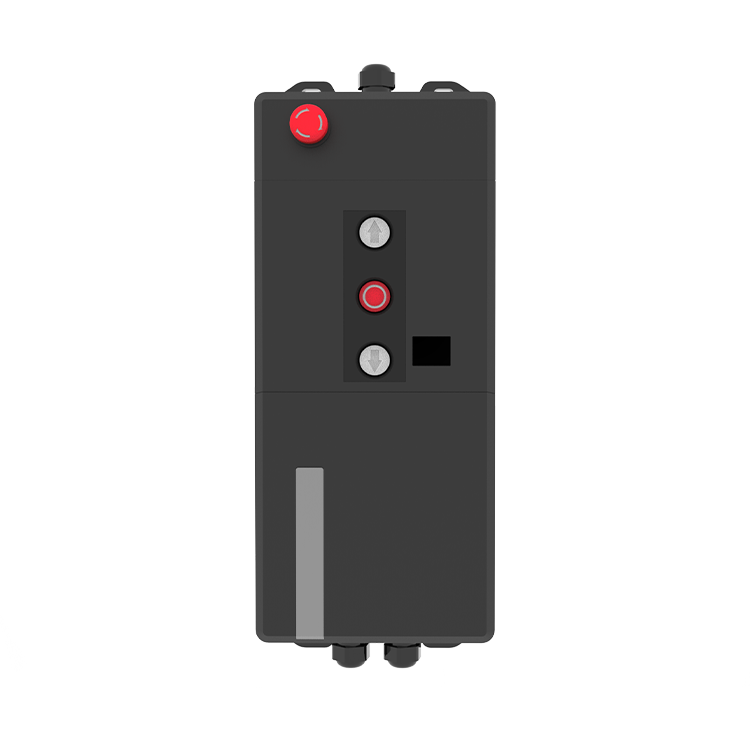

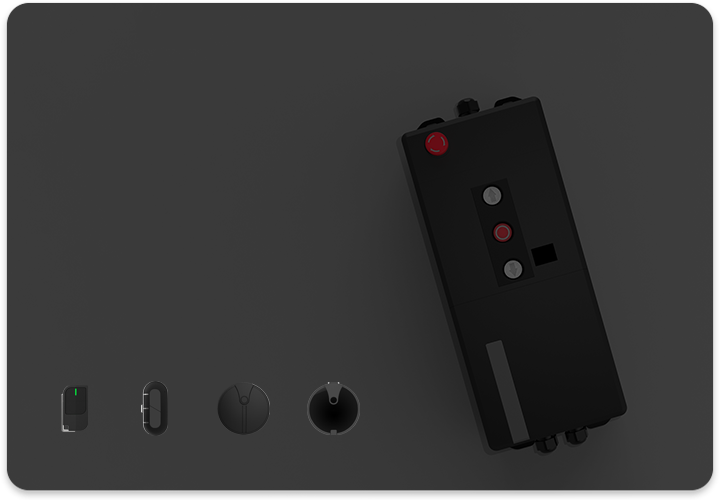

AC Control Box product updates
● Externally Mounted Fuse Design
No Disassembly Needed, One-Step Replacement.

● Power Optimization
3L+N / 3L+G / 3L three power supply methods.

● Grounding and High Voltage Isolation
DesignEnhanced Protection for Worry-Free Safety.

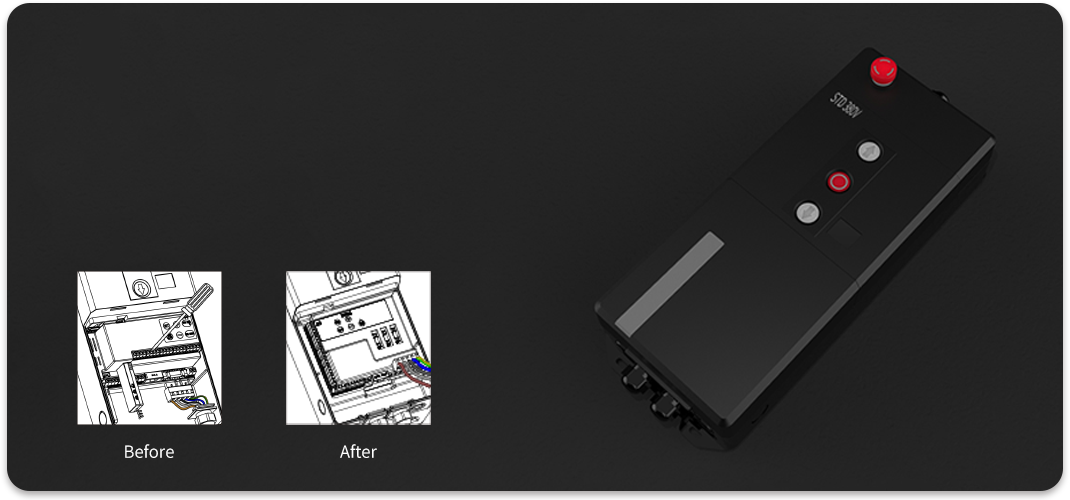

AC Control Box product updates
● Optimized Button Layout, More Comfortable Experience.

● Plug-in Port Design, More Efficient Installation.
