WUXI FORCE TECHNOLOGY CO.,LTD.

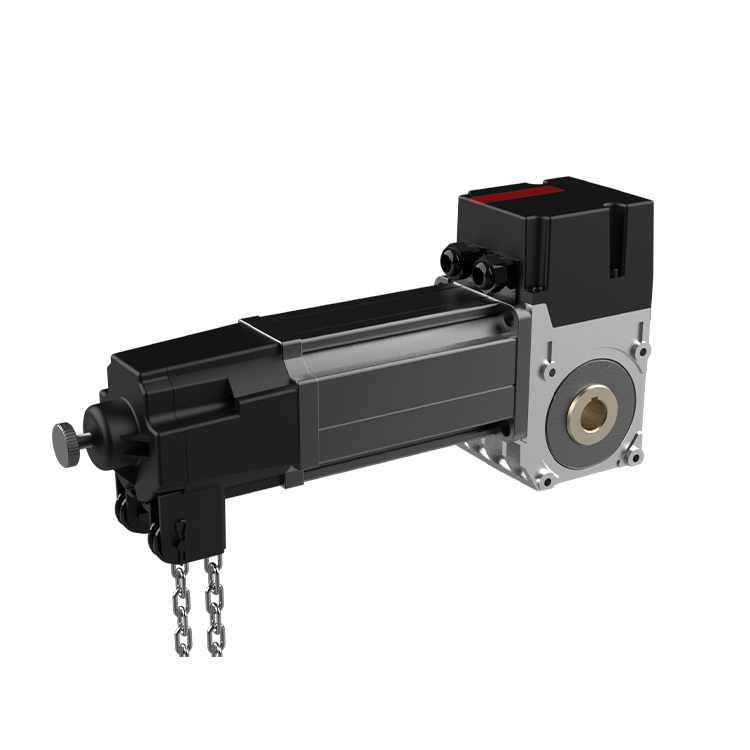

FC 120 Industrial Door Drive

Innovated frequency converter technology brings more smooth and powerful operations,

convenient speed regulation for door manufacturers and installers.

Recommendation:door size & weight

Standard lifting

Size & Weight

- Up To 40 M²

- Up To 520Kgs

High Lifting

Size & Weight

- Up To 40 M²

- Up To 520Kgs

Vertical lifting

Size & Weight

- Up To 40 M²

- Up To 520Kgs

PARAMETER

Max. output torque	140Nm
Rated output torque	120Nm
Output speed	12rpm - 32rpm
Output shaft/hollow shaft	φ25.4mm/φ31.75 mm
Static holding torque	400Nm
Door area		≤40m²
Input voltage		110V/220V(1+10%), 380V-420V
Standard Frequency		50HZ
Motor power		0.85KW
Current		3.1A
Control system		24V DC
Thermal protection temperature		105 °C
Max. cycles per hour		20 cycles
Class of protection		IP54
Limit switch		15 turns
Duty rating		S3=40%ED
Temperature range		-20°C~+60°C

RECOMMENDED ACCESSORIES

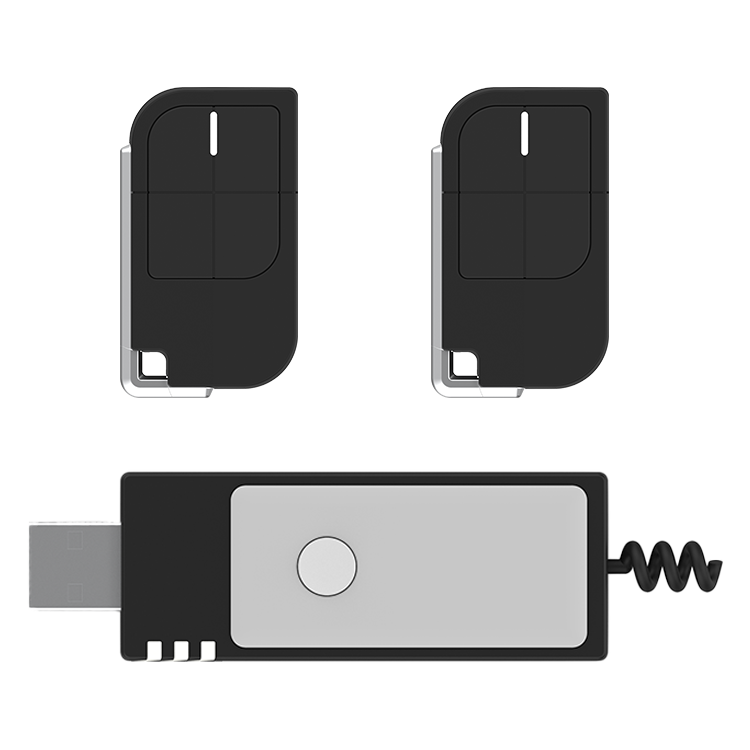

RADIO KIT

Radio kit 433 MHz

RC07 transmitter*2,433.92MHz,4 channels

Plug-in receiver*1,433.92MHz

Radio kit 868 MHz

RC07 transmitter *2,868MHz,4 channels

Plug-in receiver*1,868MHz

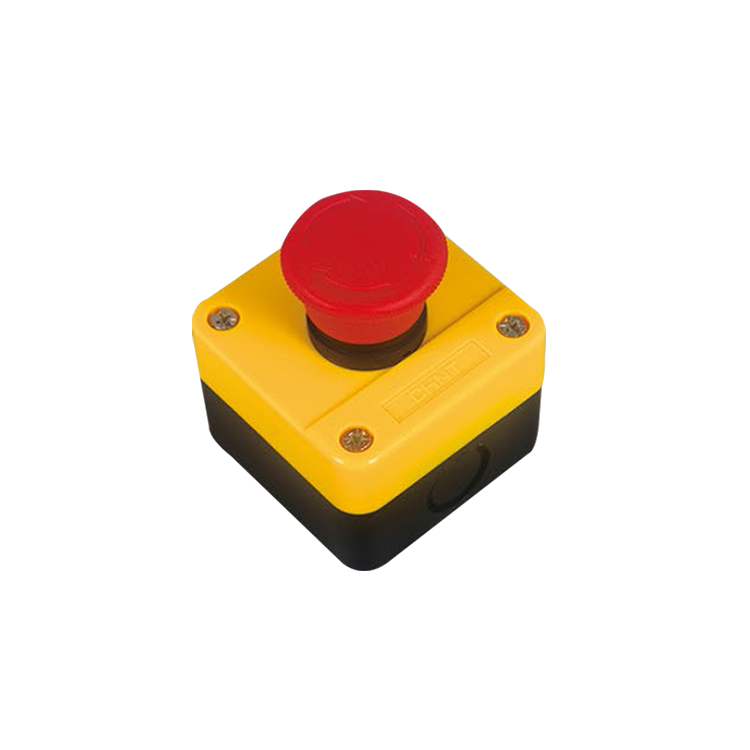

EMERGENCY STOP ASSY(POWER STOP)

Emergency stop assy-power stop with 3.5m cable

Emergency stop assy-power stop with 4.5m cable

Emergency stop assy-power stop with 5.5m cable

Emergency stop assy-power stop with 6.5m cable

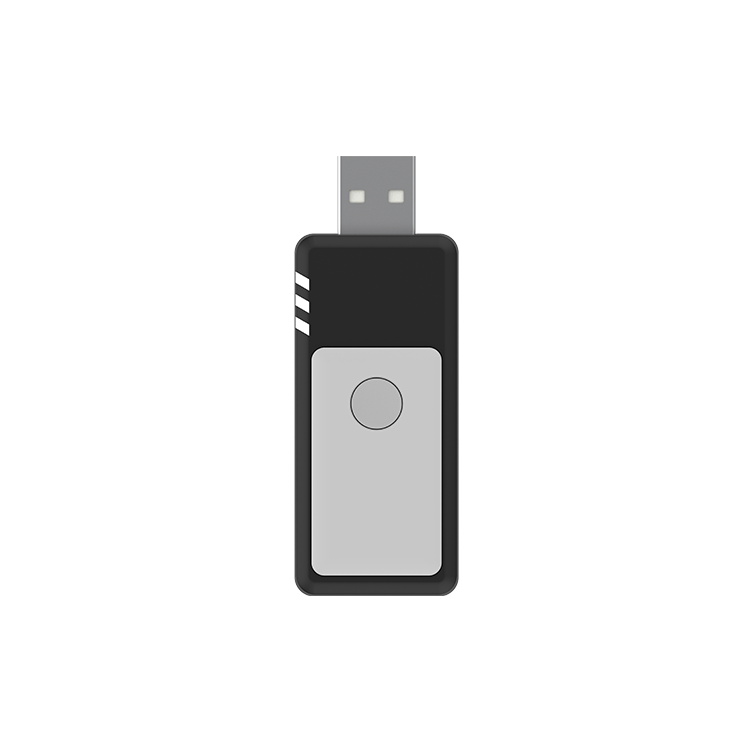

USB WIFI MODULE

New F-linX APP with nice UI design

Most of the basic function settings included

Powerful security center

Interactive communication platform in the future

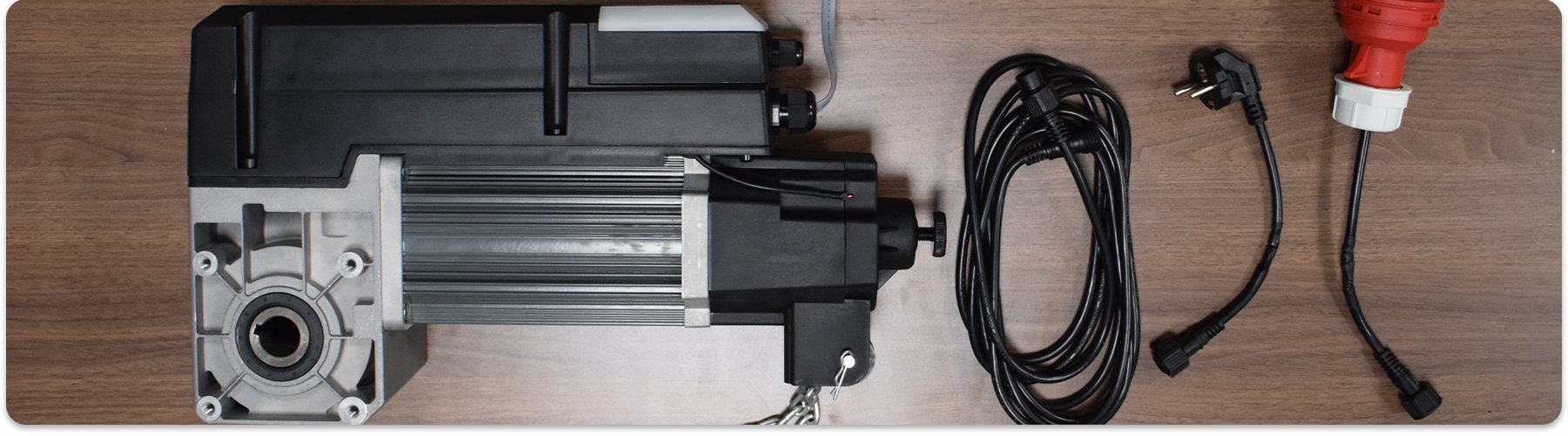

Convenient Installation
We supply 2 different power plugs (one is 220-240V single
phase plug and another one is 380-420V 3-phase plug) in
every package. This brings the real convenience for
installation works.

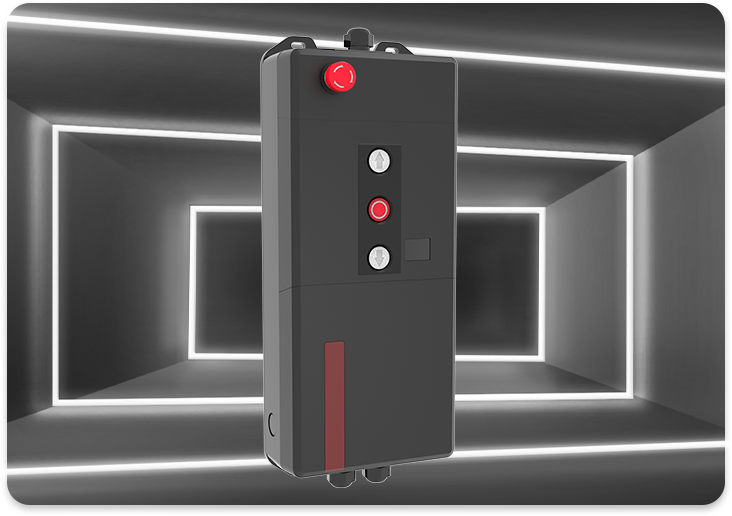

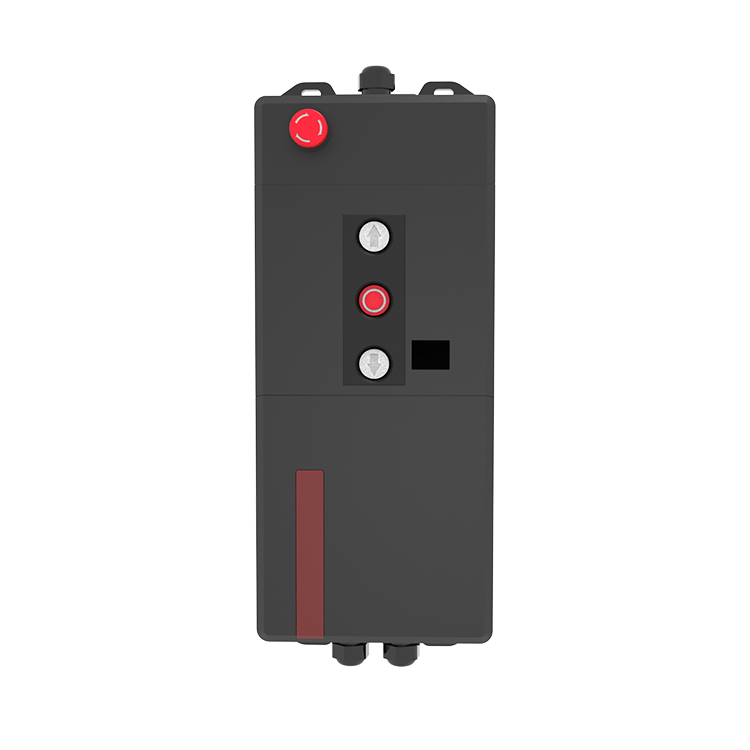

FC control box
Overload Protection Function
Overload protection function, it's a final safety protection when the safety sensors or safety edges don't work. It can well guarantee the safety of your life and property.

ABOUT

PRODUCTS

MULTI DRIVE

SMART & SAFETY SYSTEMS

Frequency converter Industrial Door Drive

FC 120

Recommendation:door size & weight

PARAMETER

FEATURES

Convenient Installation

We supply 2 different power plugs (one is 220-240V single phase plug and another one is 380-420V 3-phase plug) in every package. This brings the real convenience for installation works.

FC control box

Overload Protection Function

Overload protection function, it's a final safety protection when the safety sensors or safety edges don't work. It can well guarantee the safety of your life and property.

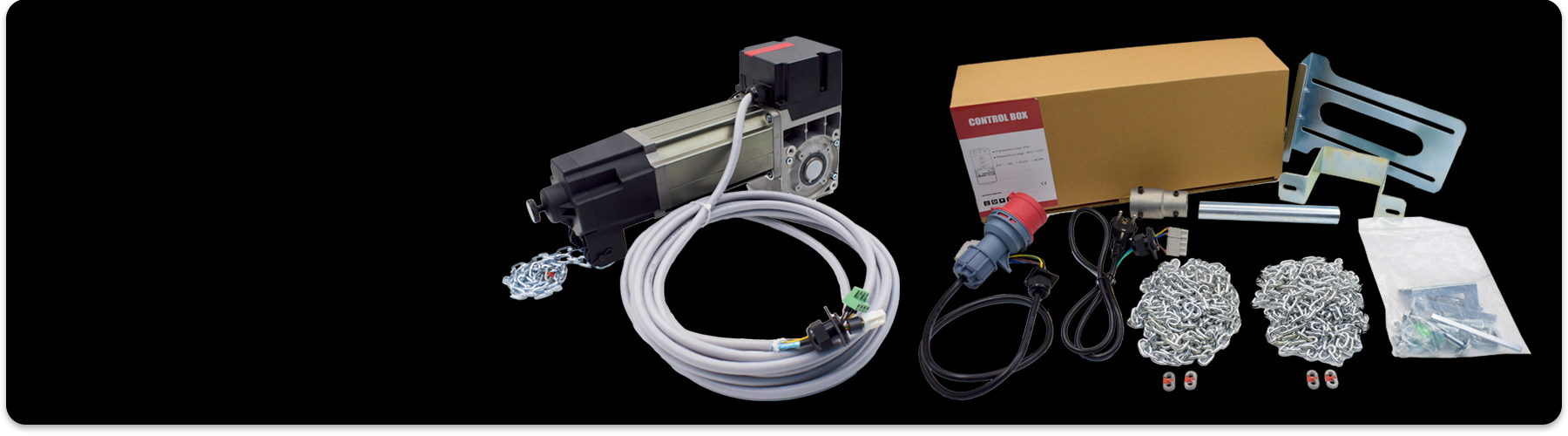

STANDARD KIT
