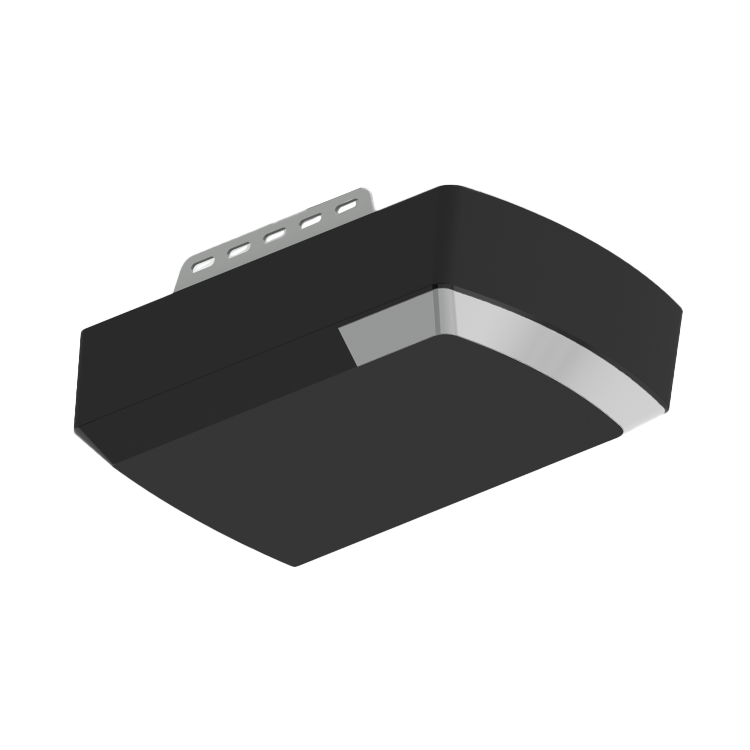

Force-Ultiamte Garage Door Opener

Ultimate series sectional garage door opener adopts a uniqueU-shaped lamp design on the basis of adhering to the design

aesthetics.A bright illumination control to be usability on premium garage doors. The Ultimate series sectional garage

door opener have a fast key button and screen interactive interface which is hidden below the dust cover. As a member

of our premium line products, it can meet all your requirements for garage door openers.

PARAMETER

Model	600N/600N-Speed	1000N/1000N-Speed	1200N
Input voltage	220-240V/110-127V,50-60Hz
Max. opening speed	160mm/second 200mm/second
Max. door height	2400-5000mm
Bottom base material	Metal
Frequency	220-240V/110-127V,50-60Hz
Max.doorarea	7m²	11m²	13m²
Max. door weight	90kg	140kg	160kg

TECHNOLOGY & STANDARDS

All of our door motors garage are CE, RCM & TUV certified for the entire European & Australian market.Our products have EN12453 & EN12445.and include all of the options to make your products smart and compatible in home automation.

C-RAIL with chain/belt

	Single C rail	C rail-2 pieces	C rail -3 pieces

Length(mm)	3150	3500	3800	4000
For doors up(mm)	2300	2700	3000	3200

T-RAIL with chain

	Single T rail	T rail - 3 pieces

Length(mm)	3150	3500	3800	4000
For doors up(mm)	2300	2700	3000	3200

ABOUT

PRODUCTS

MULTI DRIVE

SMART & SAFETY SYSTEMS

Force-Ultiamte Garage Door Opener

Force-ULTIAME

PARAMETER

TECHNOLOGY & STANDARDS

C-RAIL with chain/belt

T-RAIL with chain

FEATURES

Stronger Lifting Force

The maximum lifting force of 1000N speed opener reaches 80.8KGS and 600N speed opener reaches 55KGS.

High Brightness Led

The whole surface translucent white LED light cover design. High line LED bright the garage, energy conservation and smart setting for courtesy lighting control.

Auto Close

Force garage door openers have an auto close function. The close time can be adjustable from 15s to 135s.

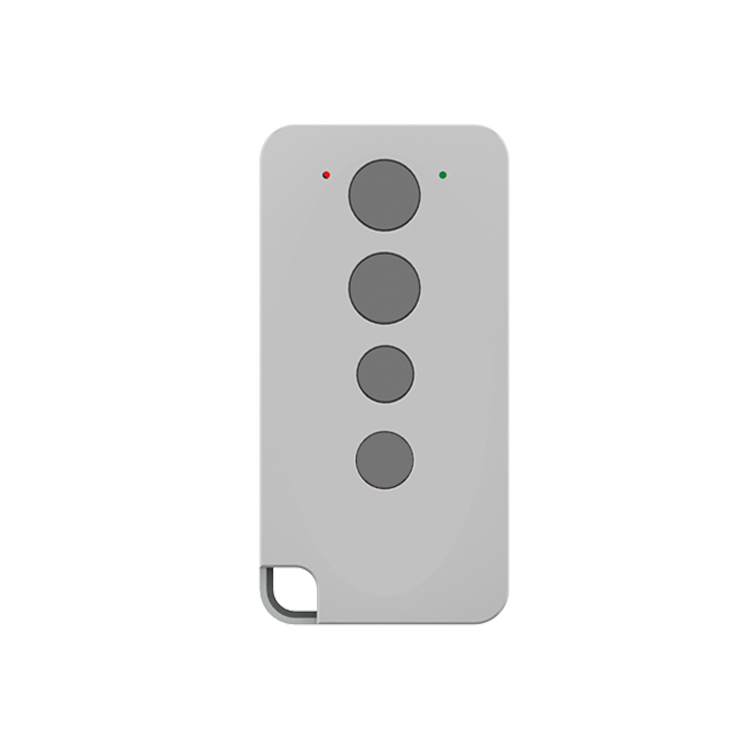

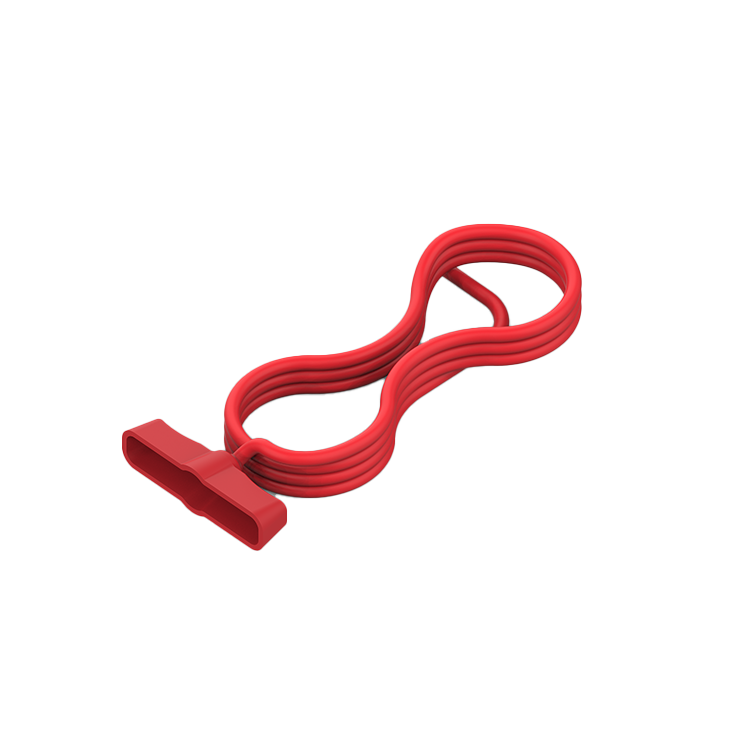

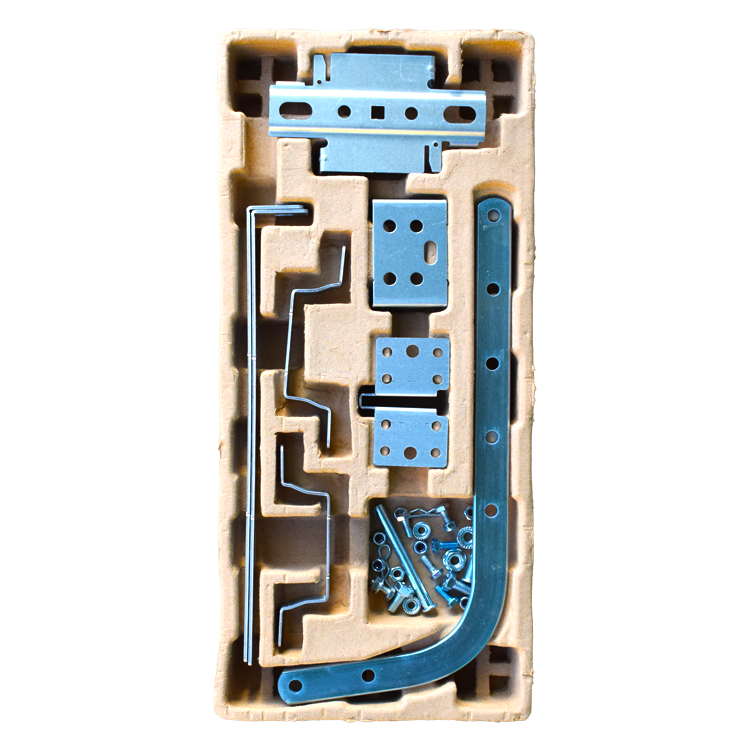

STANDARD KIT

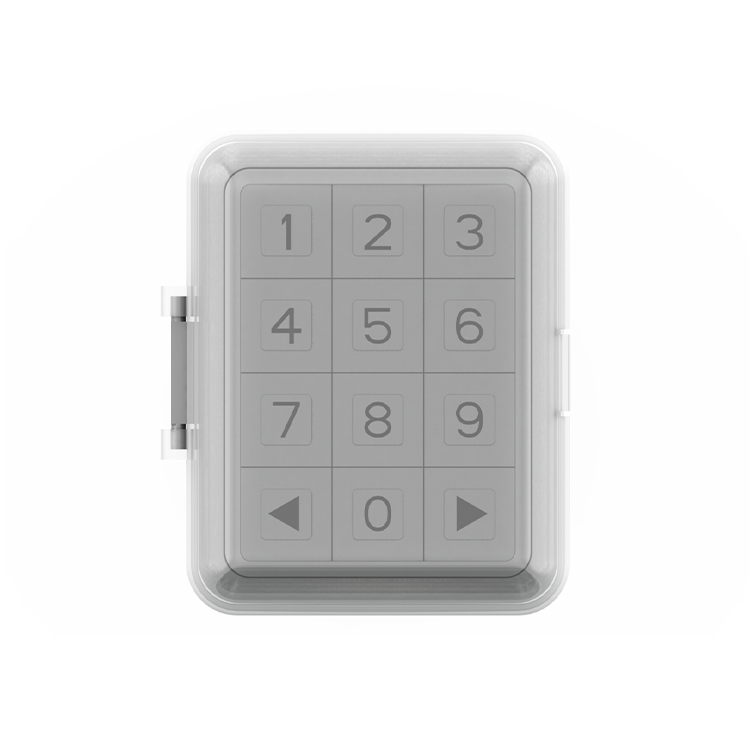

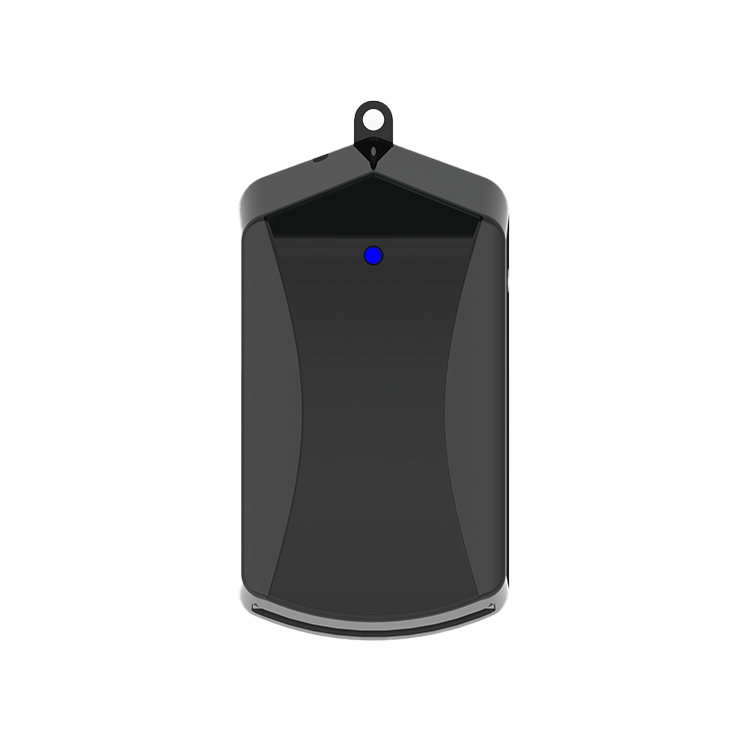

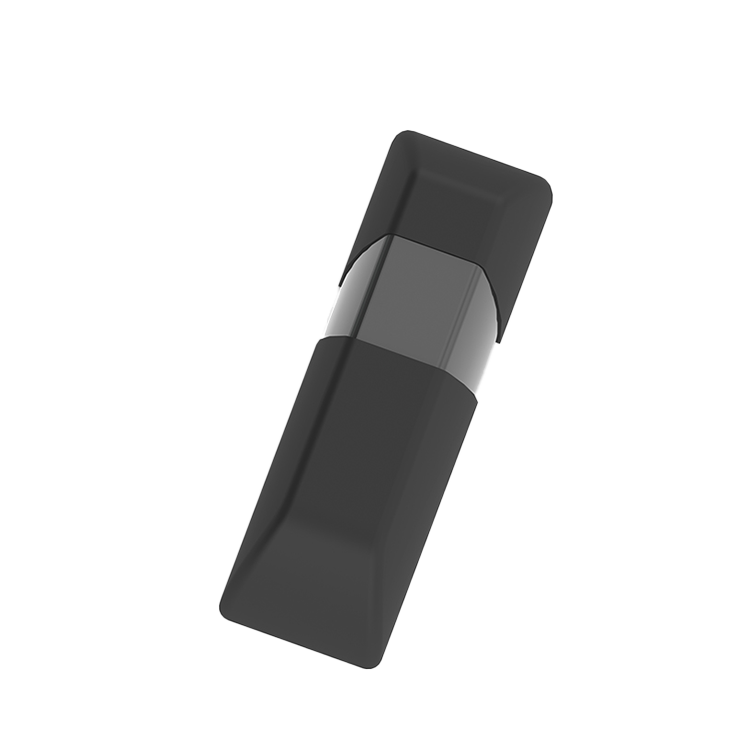

optional accessories

BRING A SAFER EFFECT ON THE DOORS
