F-CORD
Description:

Wireless communication using multi frequency technology between F-box and junction box for wireless slack rope switch kit.

The F-box with a built-in WiFi module, this allow users to linked with "F-linX" APP for "safety center" to track all information about wireless slack rope switch of the door and gates.

Suitable for fitting to cable break devices


Parameter:

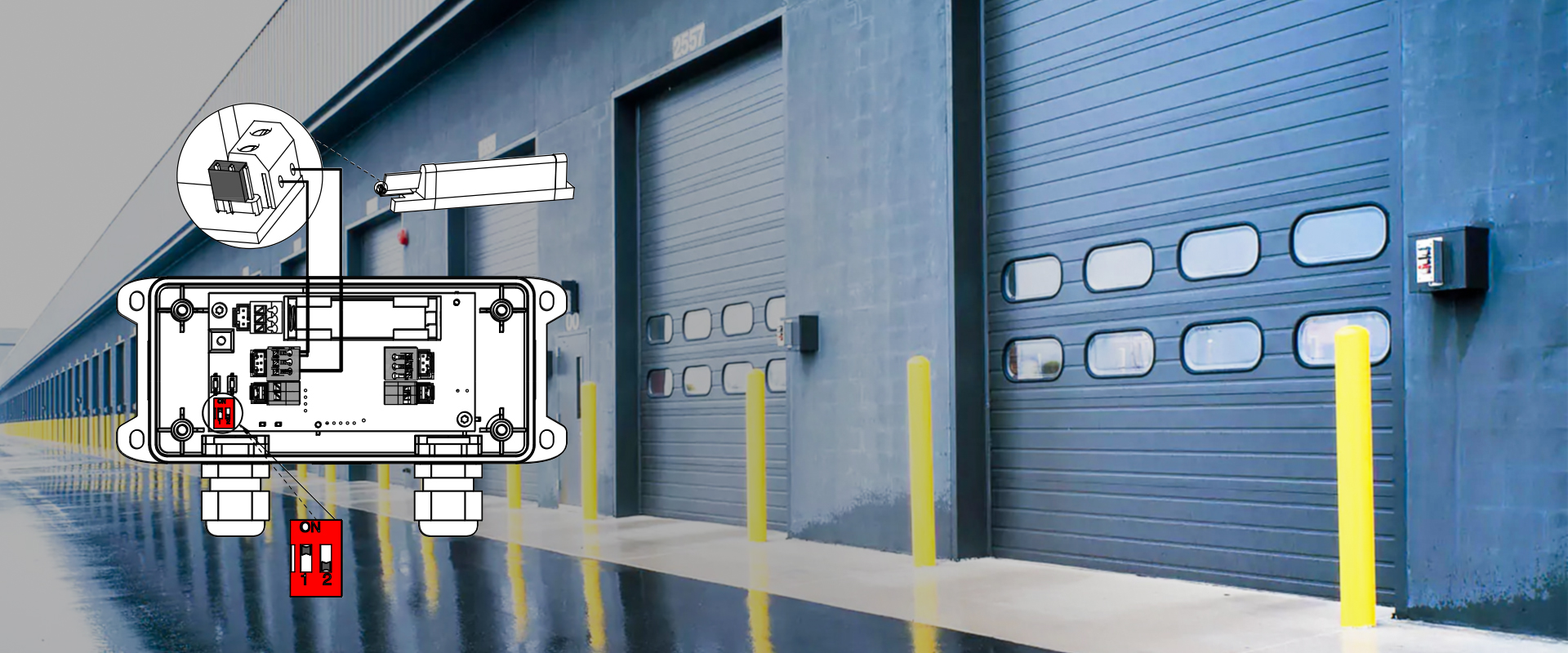

Safety edge transmitter junction box(SE-TX 02)

Radio technology:                         Trio-Frequency technology

Frequency:                                     Multi from 430 MHz - 450 MHz

Signal modulation:                         FSK

Signal range:                                 20 meters

Power supply:                                3.6V DC (1 x 3.6V lithium battery)

Channels:                                      2 channels (Reversal & Stop per channel)

Battery capacity:                            2600 mAh

Operating consumption:                70 ua

Standby:                                        15 ua

IP grade:                                        IP 65

Operating temperature:                 -20°C+60°C

Slack rope switch set(SRS)

Plastic Material:                               PC+ABS

Contac:                                            Micro switch

Connection wire:                             2 wire

Operating temperature:                  -20ºC - +70 º


Technology & Standards

RED Directive 2014/53/EU

Machine Directive 2006/42/EC

EMC Directive 2014/30/EU
