AC Industrial Door Drive

AC 140 PRO 220V/380V

Home / PRODUCTS / Industrial door drive / AC

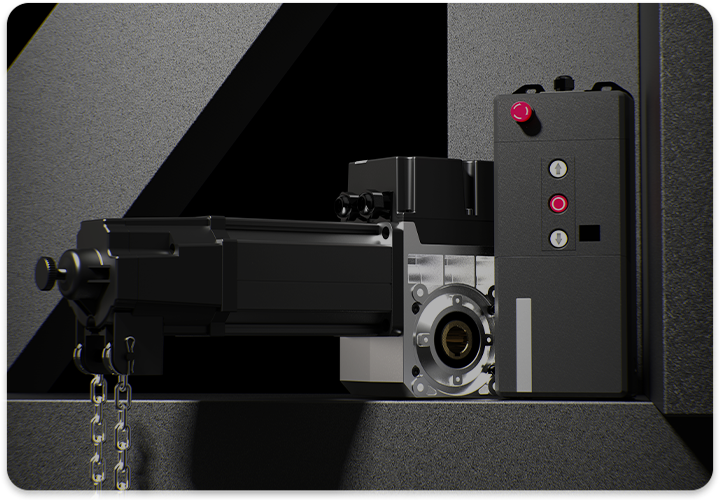

AC 90 PRO 220V/380V Industrial Door Drive

These robust and reliable systems are designed to efficiently open and close heavy-duty doors, providing seamless access for vehicles, machinery and personnel.

Recommendation:door size & weight



Standard lifting

Size & Weight

- Up To 40 M²

- Up To 520Kgs



High Lifting

Size & Weight

- Up To 40 M²

- Up To 520Kgs



Vertical lifting

Size & Weight

- Up To 40 M²

- Up To 520Kgs

PARAMETER

Max. output torque150Nm
Rated output torque90Nm
Output speed24rpm

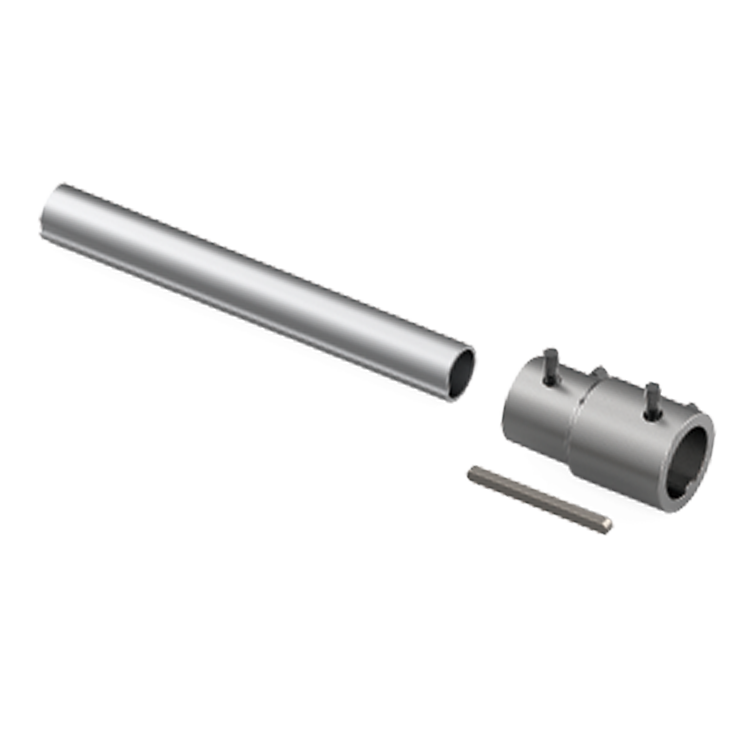

Output shaft/hollow shaftφ25.4mm/φ31.8 mm
Static holding torque400Nm
Door area
≤30m²
Input voltage
380V(1+10%)
Standard Frequency
50Hz
Motor power
0.85KW

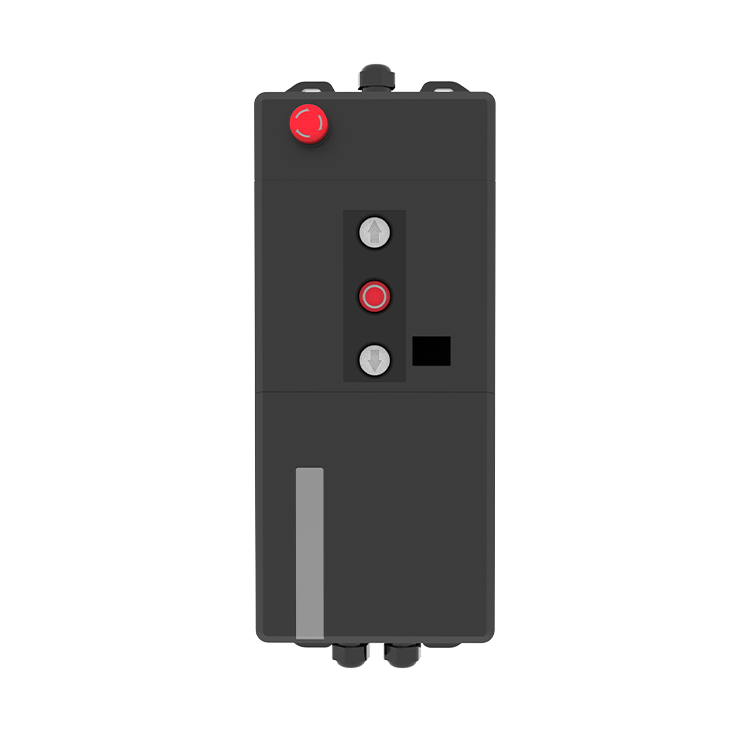

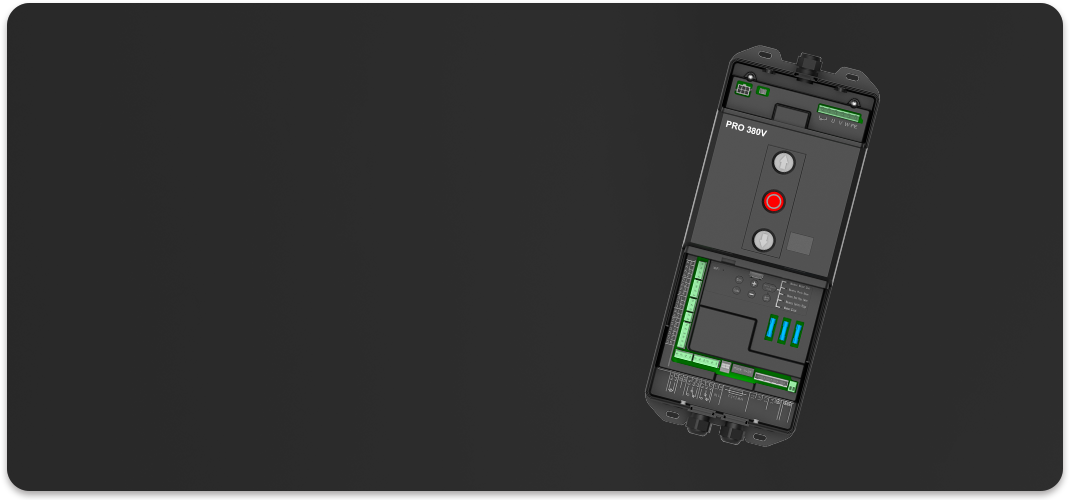

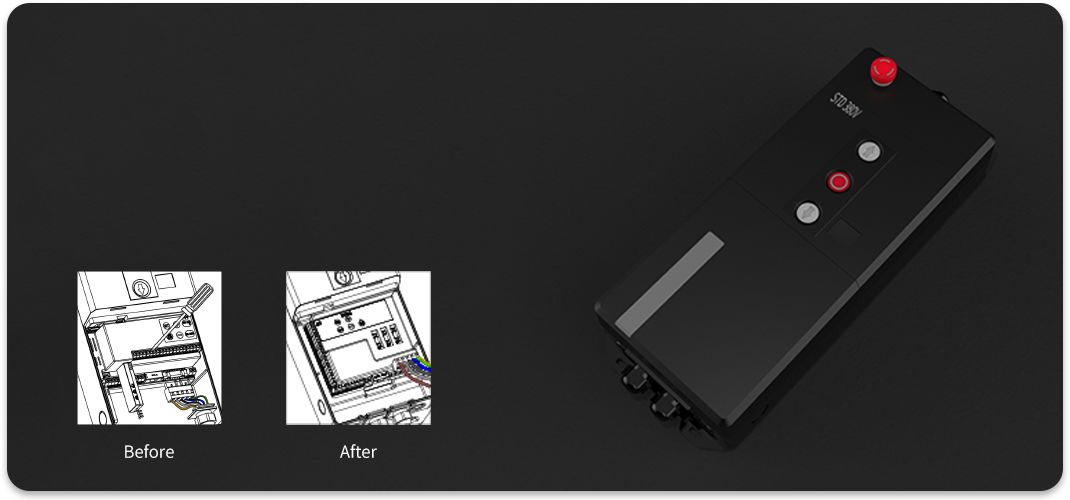

Control system
24V DC
Thermal protection temperature
120 °C
Max. cycles per hour
20 cycles
Class of protection
IP54
Limit switch
15 turns
Duty rating
S3=40%ED
Temperature range
-20°C~+60°C
WiFi
Built-in
Safety receiver
Built-in

RECOMMENDED ACCESSORIES

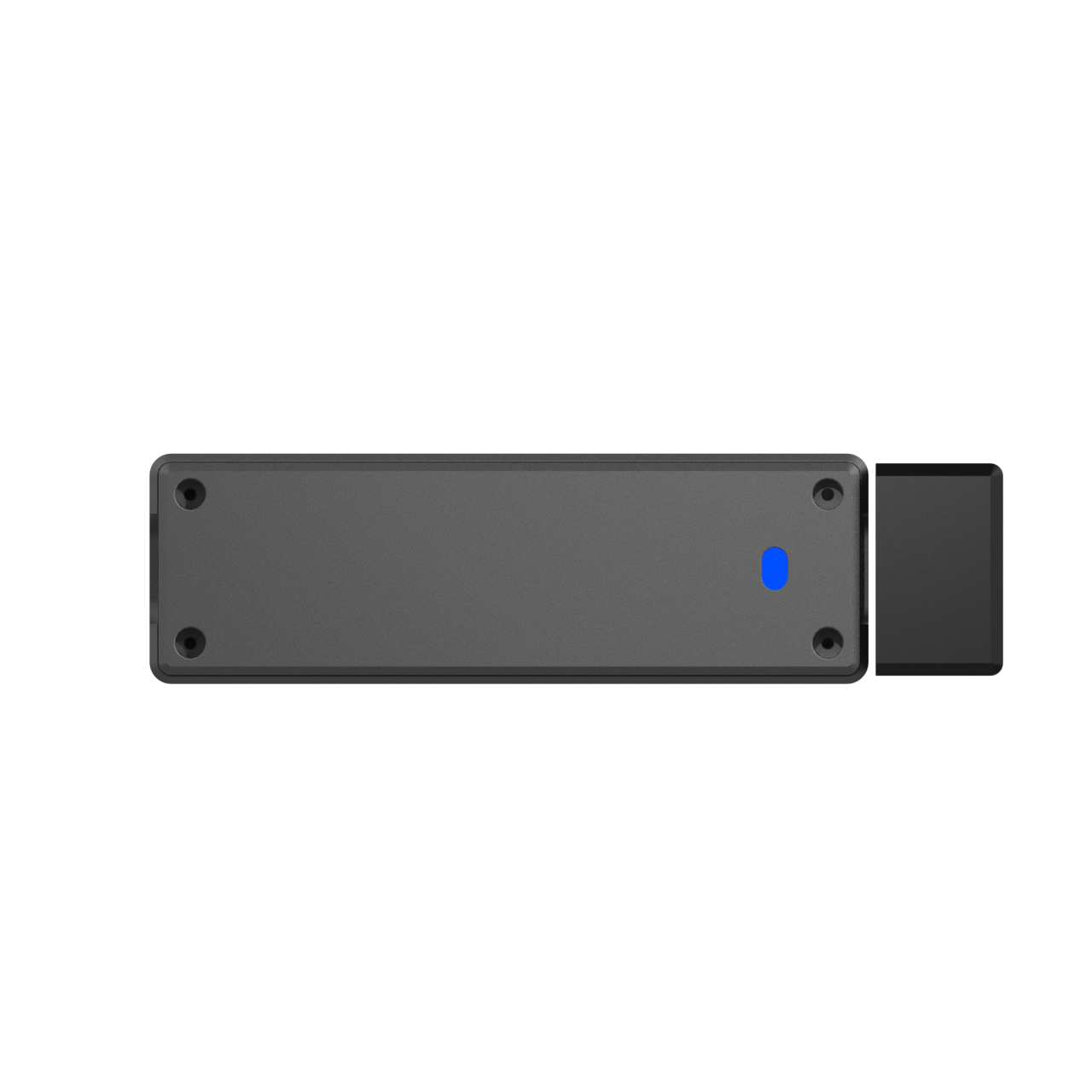

WIRELESS WICKET DOOR

Magnetic sensor, contact-free magnetic detector.

Height adjustable mounting base for the various wicket doors frame.

Trio-Frequency technology for anti-interference.

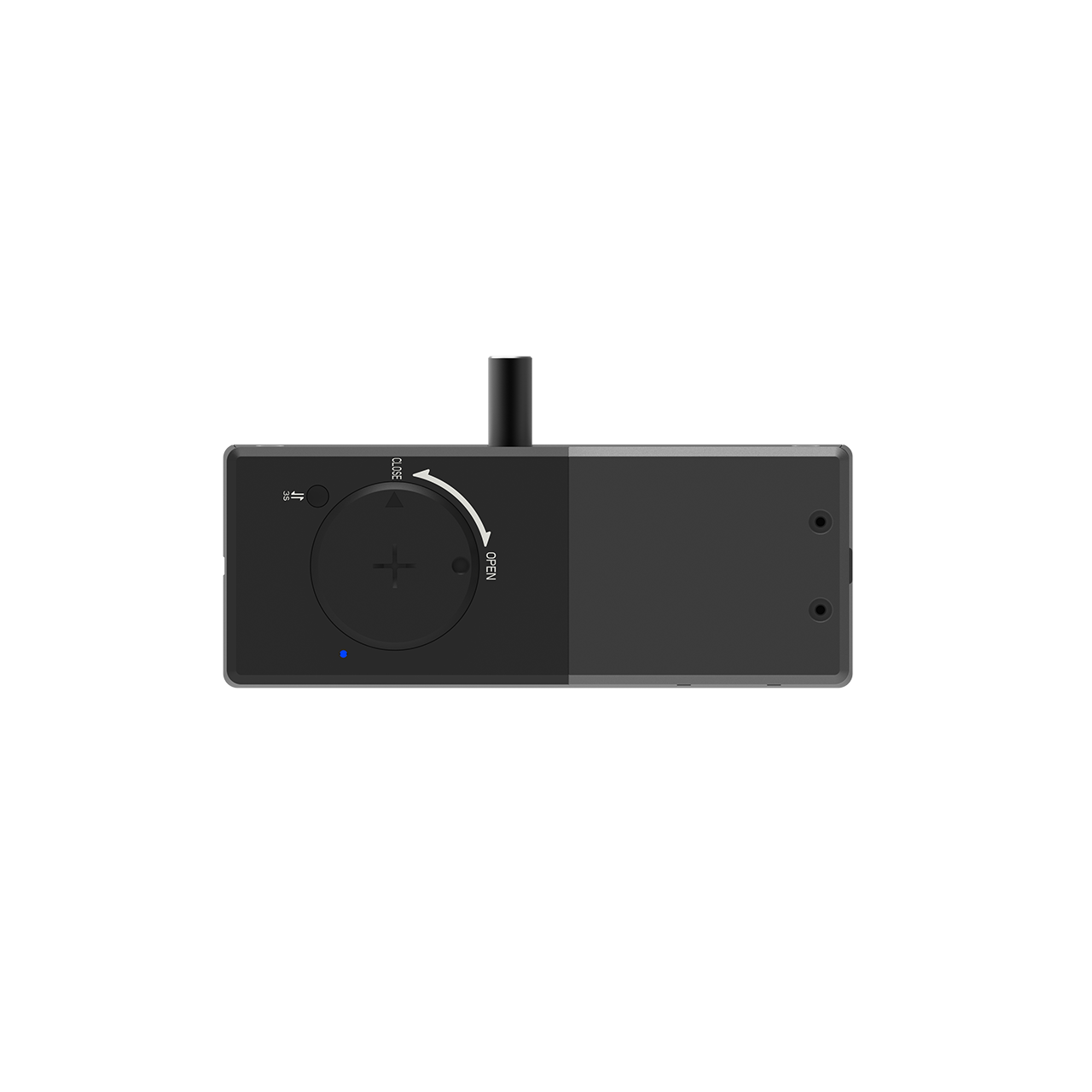

WIRELESS E-LOCK

The wireless E-Lock works automatically with garage door openers PRO version. it always locks and unlocks with every operation of the door.

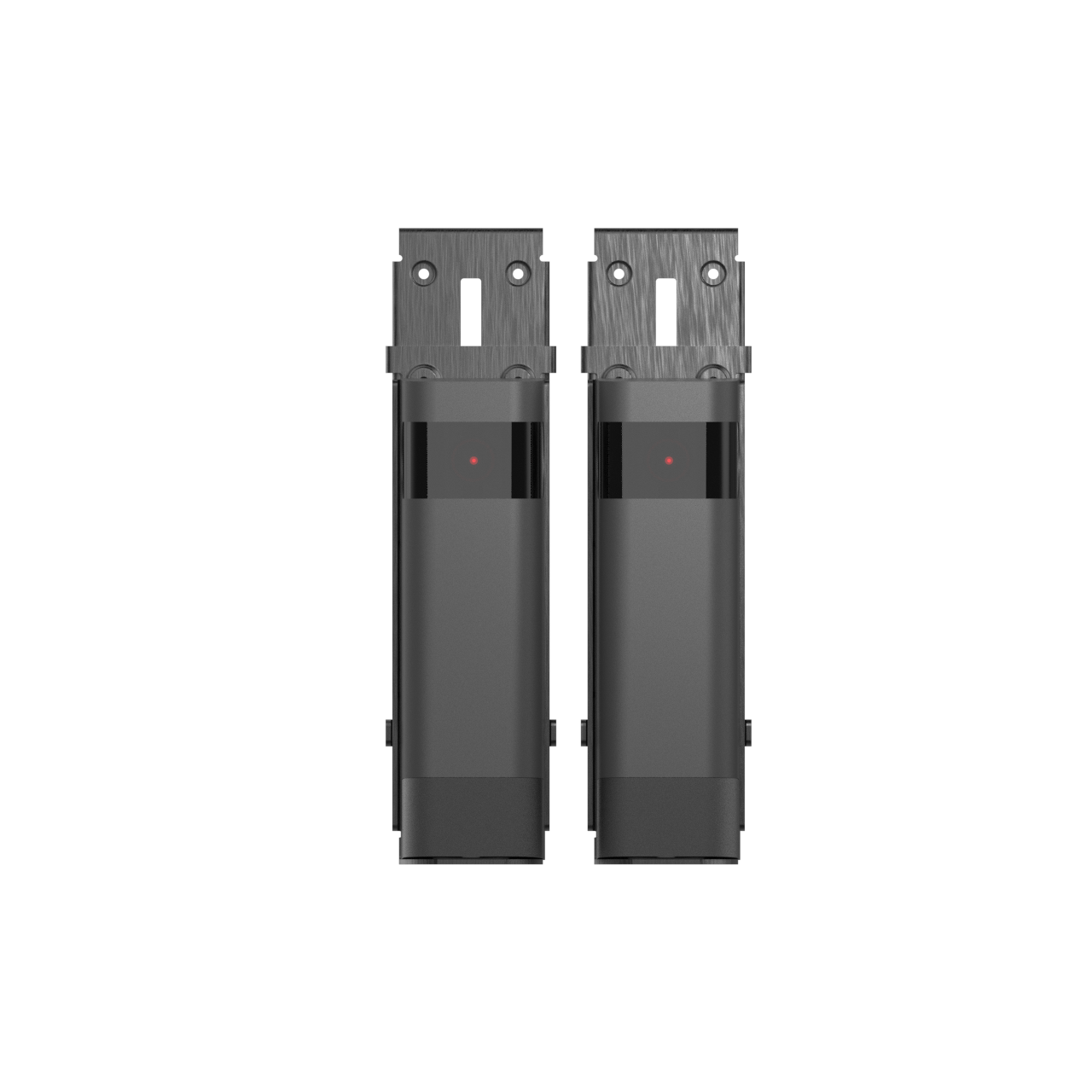

WIRELESS PHOTO BEAM

Complete wireless TX and RX infrared beam with built in 3.6V lithium battery

Trio-Frequency technology for anti-interference.

Adjustable switch to adjust the infrared beam transmitting power for various environment.
