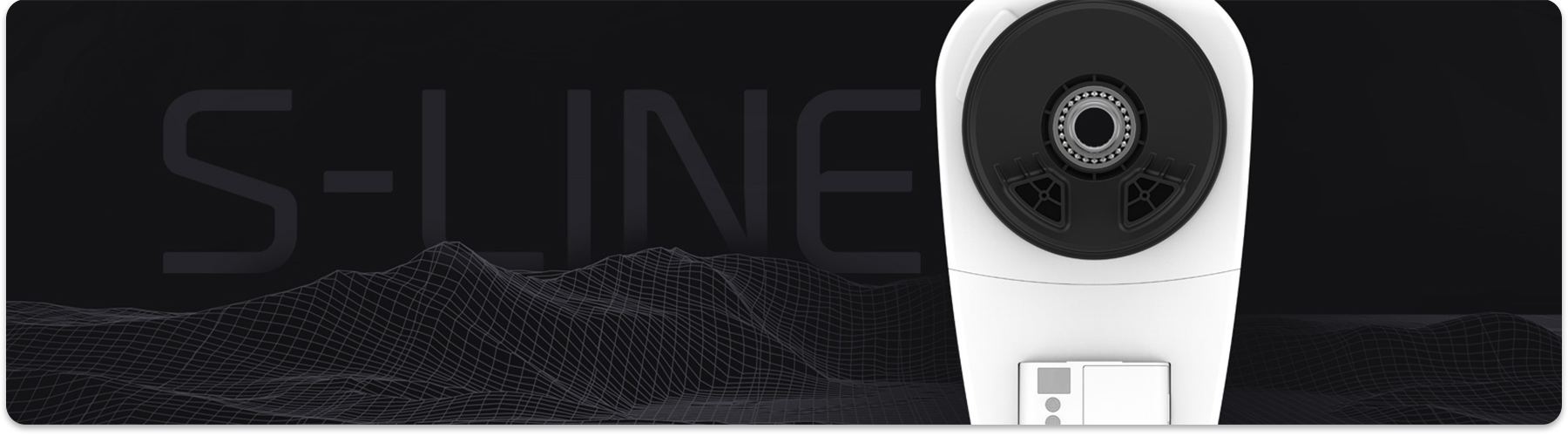

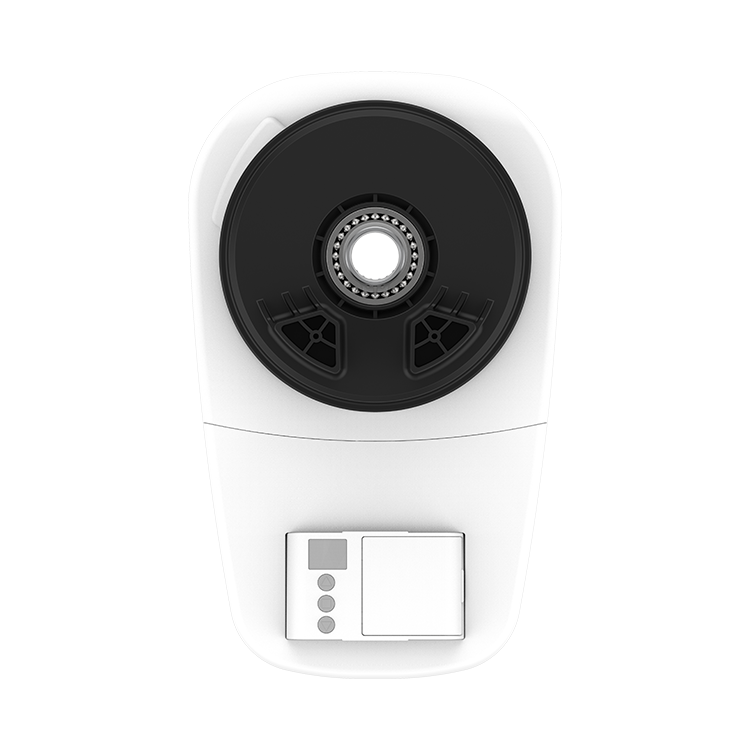

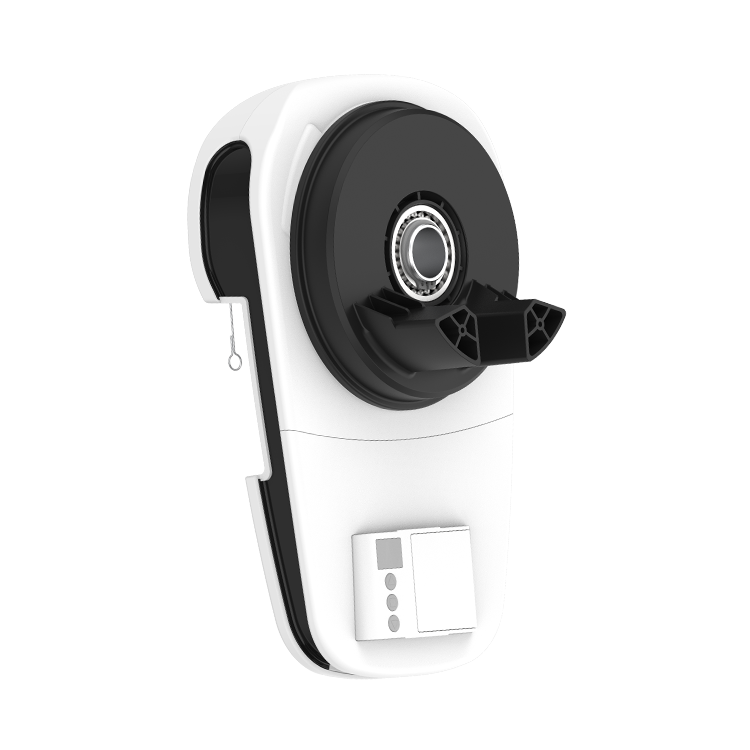

S-Line Electric Roller Garage Door Opener

S-Line

Home / PRODUCTS / Roller door opener

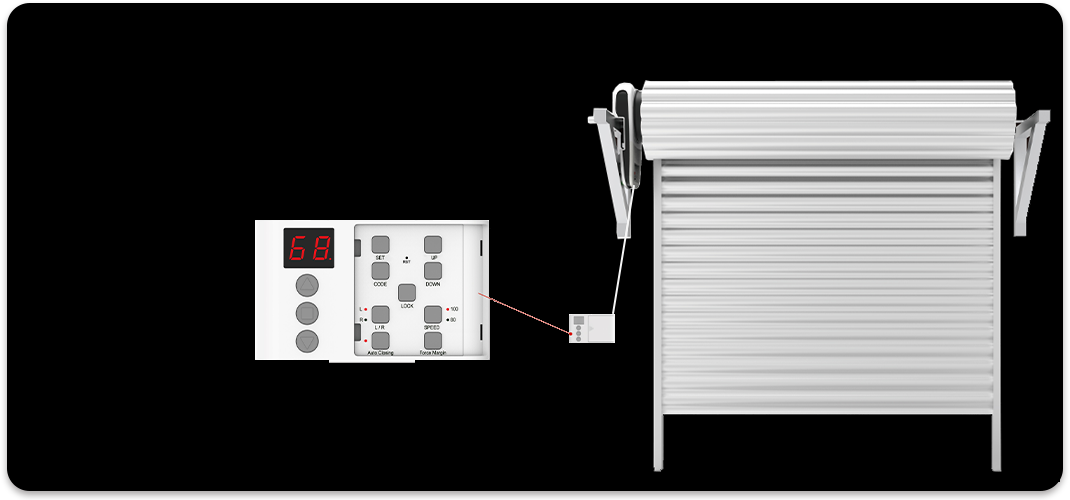

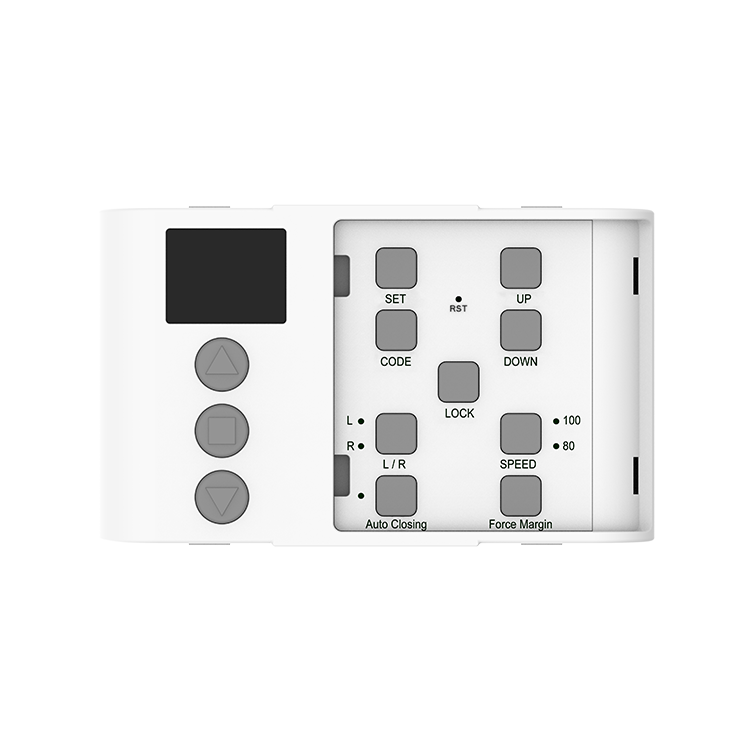

The control box on the opener is detachable and can be fixed on the wall by a bracket. Fix it where you feel comfortable, and then you can easily control your roller door opener.

PARAMETER

Power600N1000N
Input voltage230V/110V,50-60Hz
Standby power2.2W
Motor type24V D.C. permanent magnet
Opening speed160mm/second
Max. door area10m²15m²
Opening / Closing limits travel7 turns
Max. door height5000mm
Side room requirement                85mm
Receiver / Transmitter frequency   433.92MHz / 868.35MHz
Coding system                  Rolling code technology
Transmitter capacity (x 4-button registers)                50

Features

*L.E.D off delay time setting

*Soft stop function during operation

*Automatic closing&time setting




TECHNOLOGY & STANDARDS

All of our door motors garage are CE, RCM & TUV certified for the entire European & Australian market.Our products have EN12453 & EN12445.and include all of the options to make your products smart and compatible in home automation.


RECOMMENDED ACCESSORIES

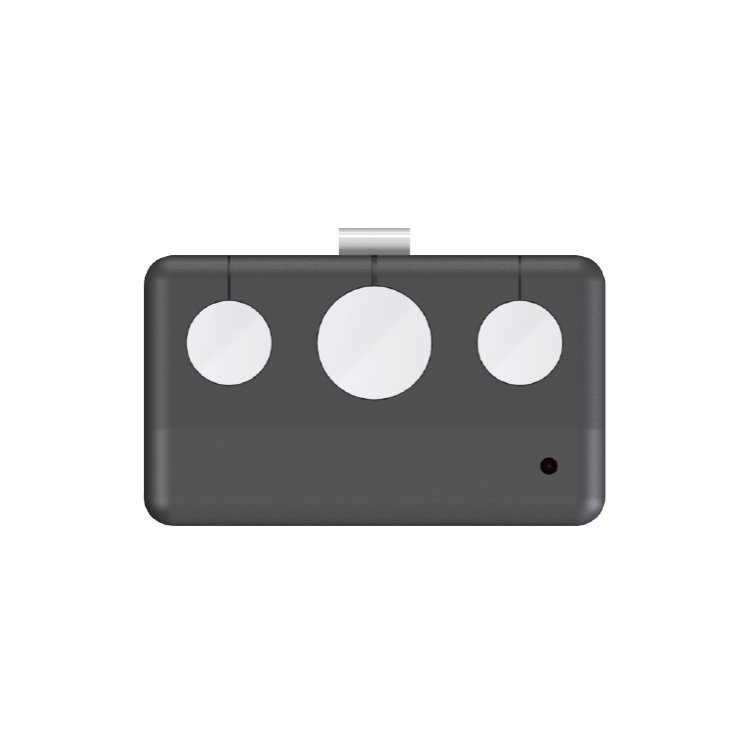

WWS01


Wireless wall switch

3 buttons, 433.92 MHz

Rolling code technology

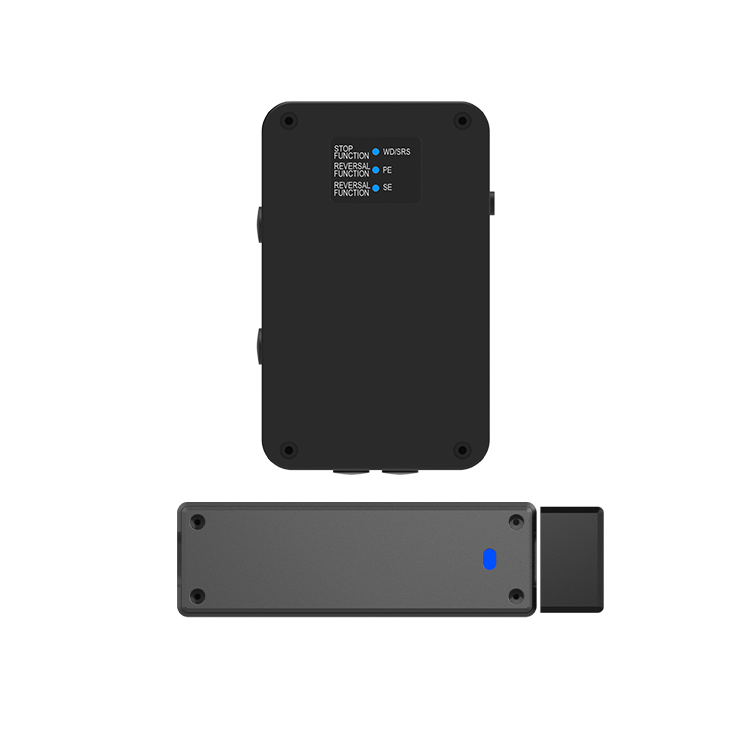

SD PROTECTION 01

Wireless Wicket-door ProtectorIncluding:

Water-Proof Signal Receiver * 1

Wireles Sensor * 1

Magnetic Box * 1

Range(nominal): 50 meters

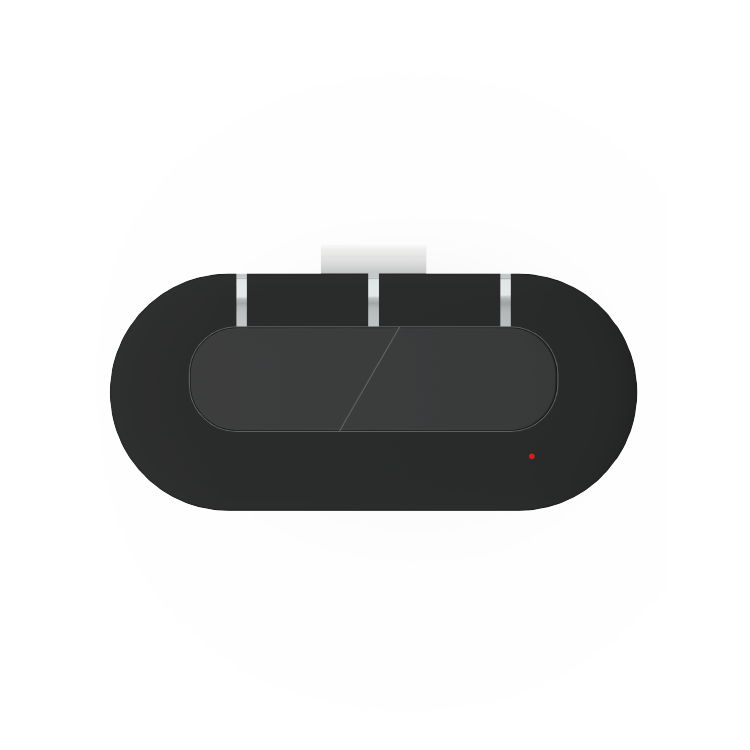

SVR 02


Sun visor remote

2 buttons,433.92 MHz

Rolling code technology
