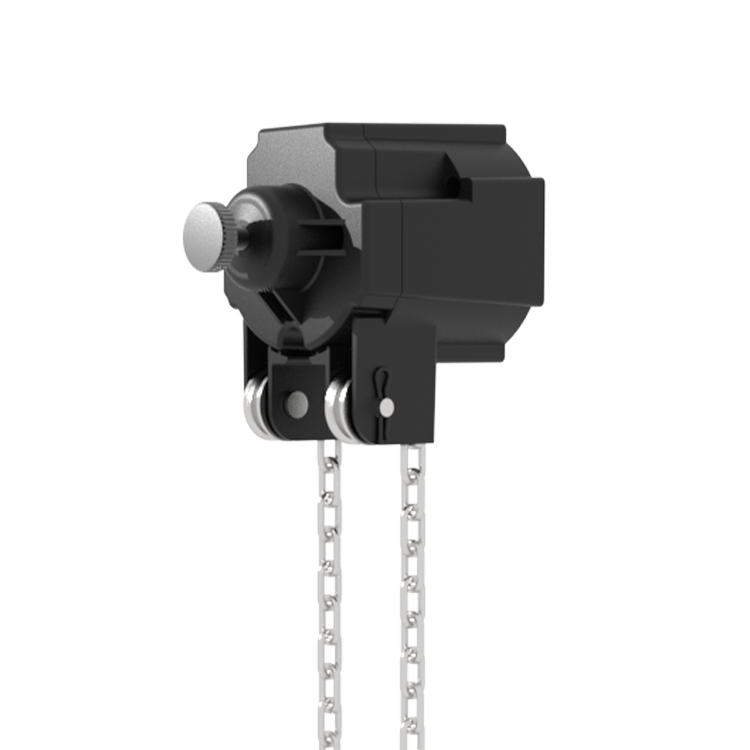

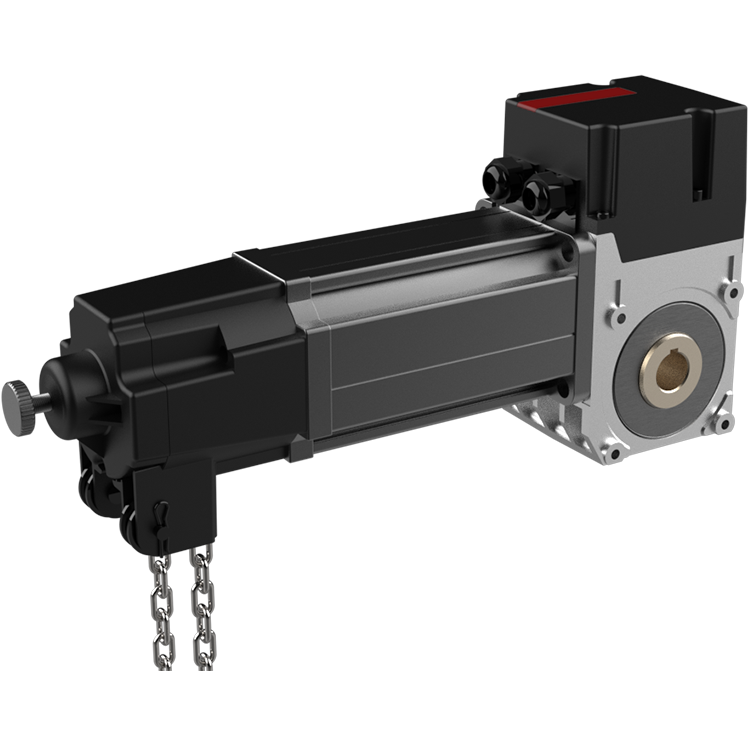

FC 90 Industrial Door Drive

Innovated frequency converter technology brings more smooth and powerful operations,

convenient speed regulation for door manufacturers and installers.

Recommendation:door size & weight

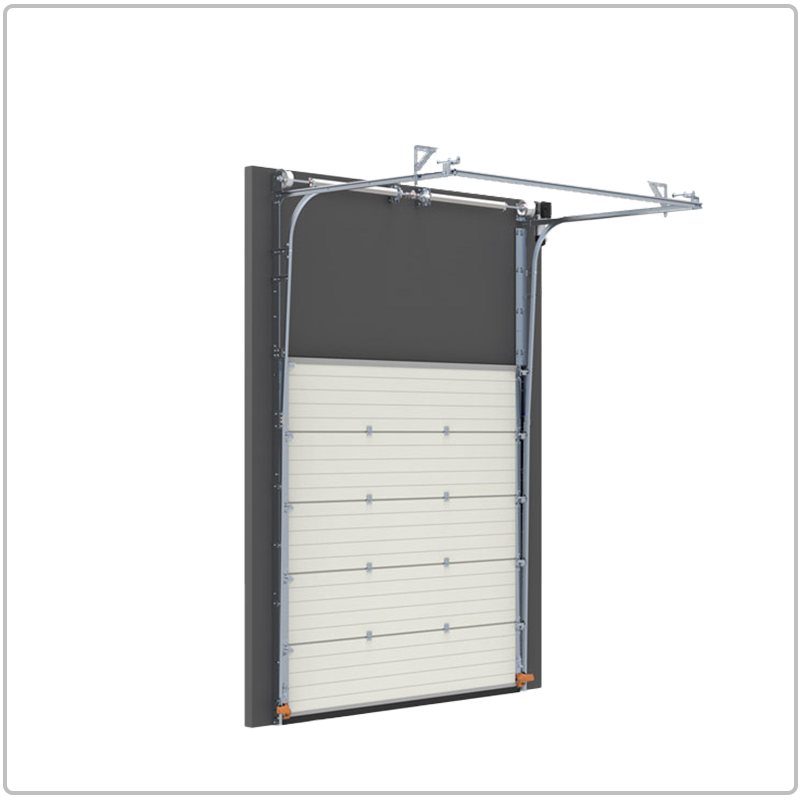

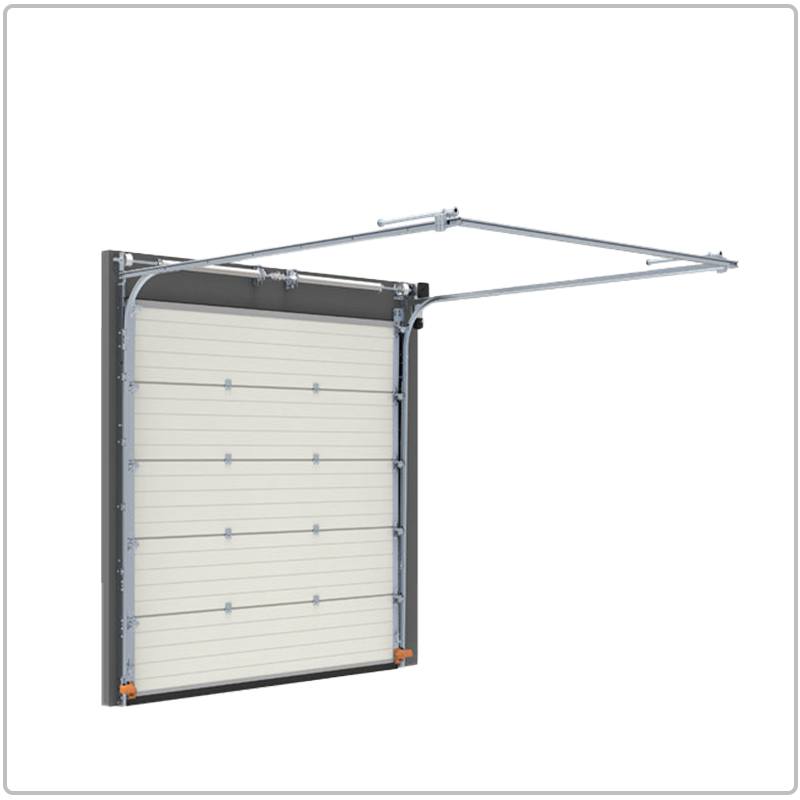

Standard lifting

Size & Weight

- Up To 30 M²

- Up To 390Kgs

High Lifting

Size & Weight

- Up To 30 M²

- Up To 390Kgs

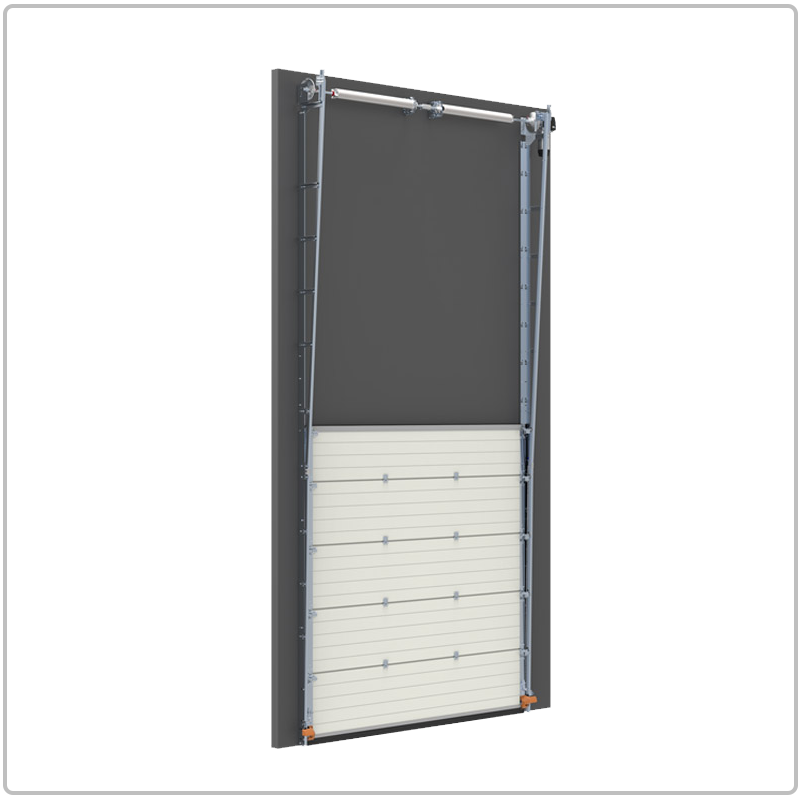

Vertical lifting

Size & Weight

- Up To 30 M²

- Up To 390Kgs

PARAMETER

Max. output torque	100Nm
Rated output torque	90Nm
Output speed	12rpm - 32rpm
Output shaft/hollow shaft	φ25.4mm/φ31.75 mm
Static holding torque	400Nm
Door area		≤30m²
Input voltage		110V/220V(1+10%), 380V-420V
Standard Frequency		50Hz
Motor power		0.6KW
Current		3.0A
Control system		24V DC
Thermal protection temperature		105 °C
Max. cycles per hour		20 cycles
Class of protection		IP54
Limit switch		15 turns
Duty rating		S3=40%ED
Temperature range		-20°C~+60°C

RECOMMENDED ACCESSORIES

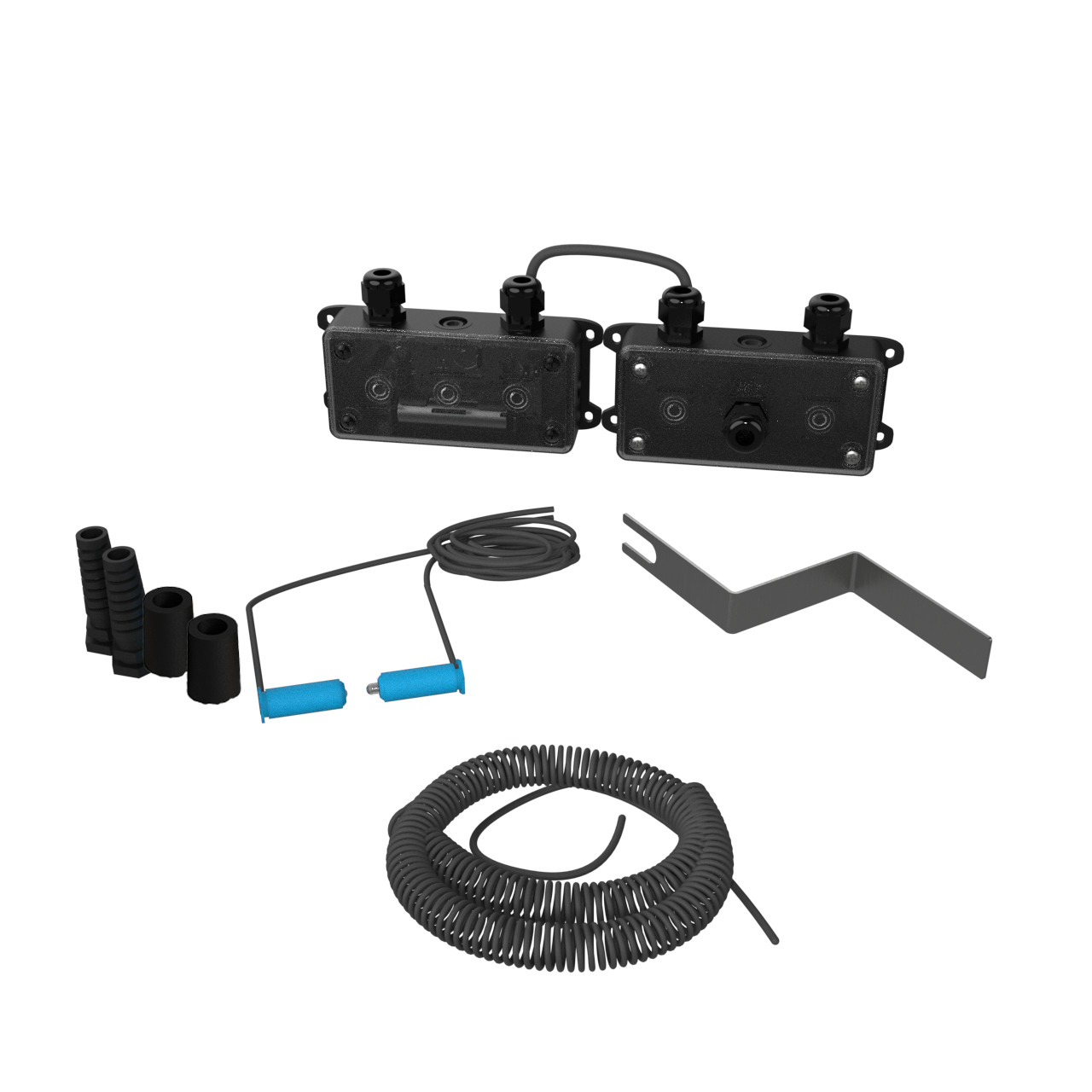

OPTICAL EDGE SENSORS

TX 6m cable,RX Im cable,eletronic box,spiral cable coil cord with 3.5m activelength for 5.0m high doors

TX 10m cable,RX Im cable,eletronic box,spiral cable coil cord with 5.5m activelength for 7.0m high doors

Maximum10m width supported

SD PROTECTION 01

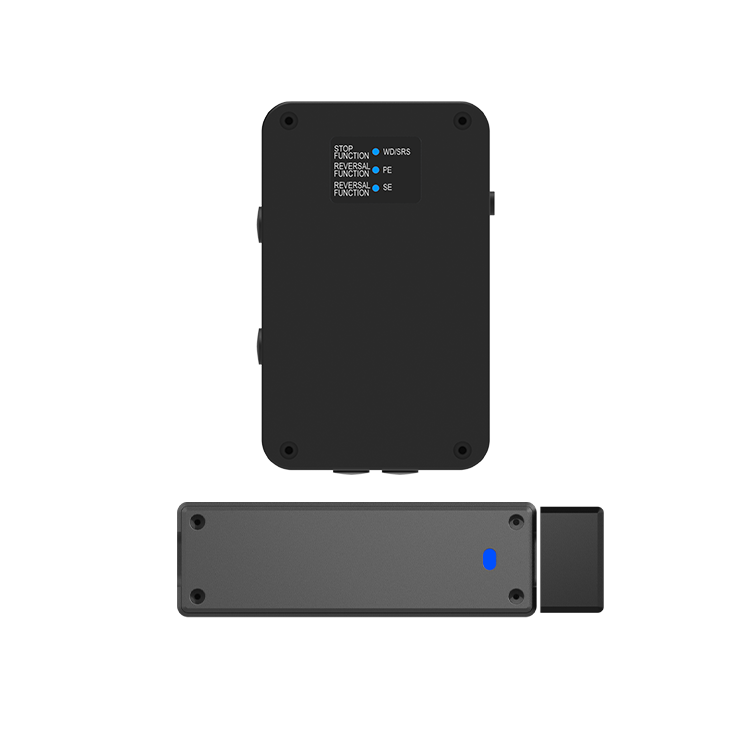

Wireless Wicket-door ProtectorIncluding:

Water-Proof Signal Receiver * 1

Wireles Sensor * 1

Magnetic Box * 1

Range(nominal): 50 meters

Flash light

Working voltage: 24V DC/AC & 80V-250V AC

Flicker frequency: 1 Hz

IP level: IP 64

Working temperature: -20℃ ~ +60℃

Inner antenna to extend the effective distance of controller

Speed Adjustable
Different door sizes and usage scenarios require different door opening and closing speeds.
A proper speed for opening and closing is one of the key points for safety and durability.

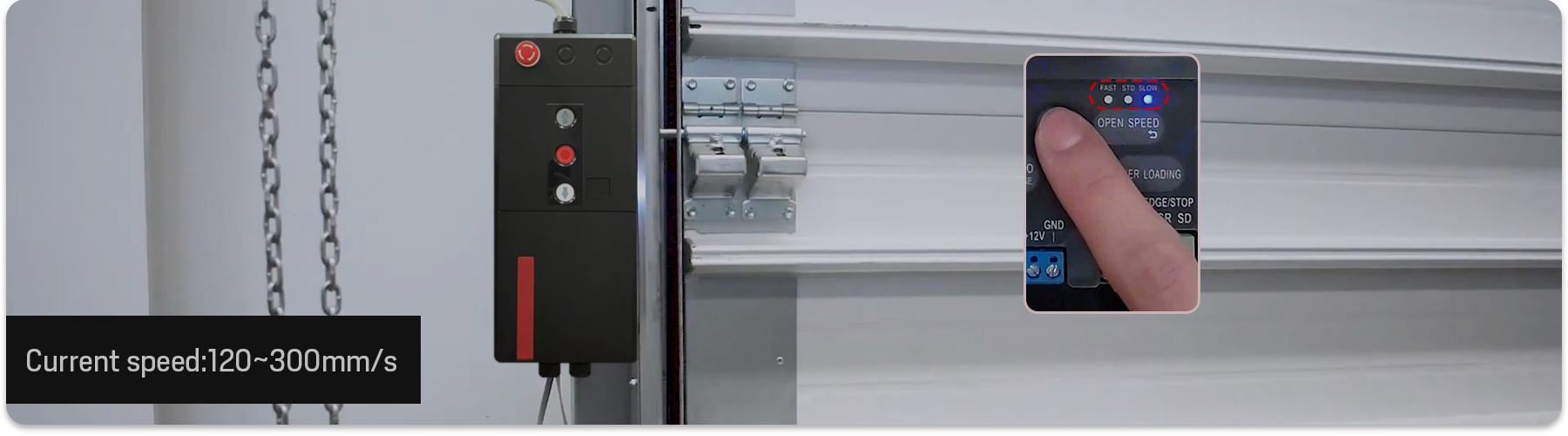

The operation speed can be quick switched between "FAST", "STD" and "LOW" ,
giving users more possibilities to define security.
Soft start & Soft stop
This brings well buffer to all of the mechanical parts and operators, reduce the wearing of entire system. Greatly lengthen the service life of the doors and the operators.
At the same time, reduce unnecessary complaints, provide differentiated product advantages, improve market reputation.
Convenient installation
An easy installing operator would be a great help for the door manufacturer or the installation team.

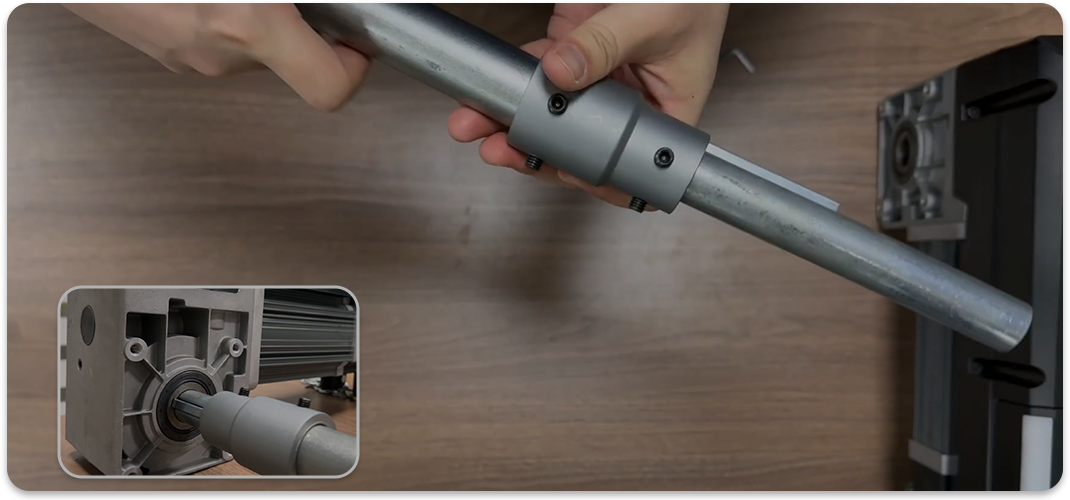

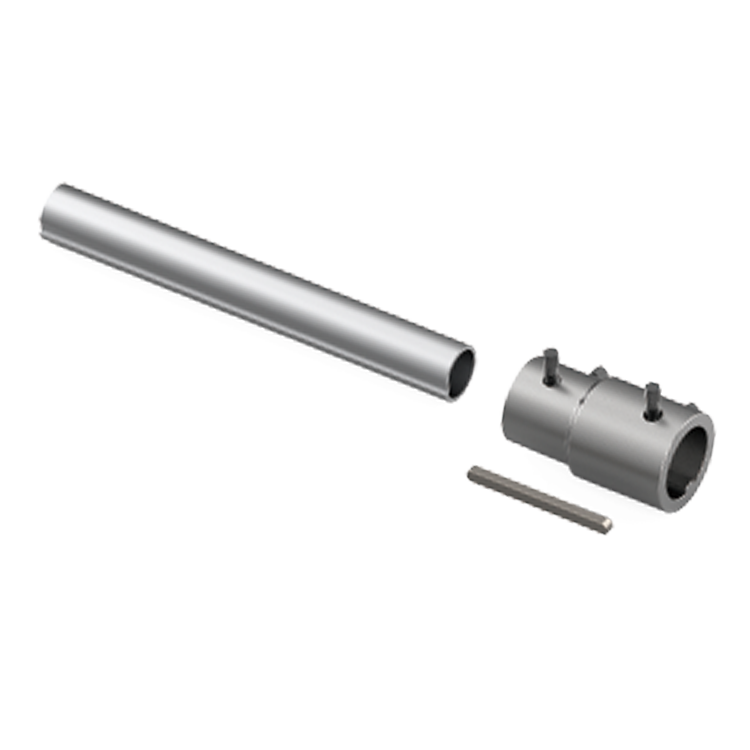

FORCE DOOR FC 90 is designed to be compatible with both 25.4mm and 31.75mm shafts based on a coupler supplied.

ABOUT

PRODUCTS

MULTI DRIVE

SMART & SAFETY SYSTEMS

Frequency converter Industrial Door Drive

FC 90

Recommendation:door size & weight

PARAMETER

FEATURES

Speed Adjustable

Soft start & Soft stop

This brings well buffer to all of the mechanical parts and operators, reduce the wearing of entire system. Greatly lengthen the service life of the doors and the operators.At the same time, reduce unnecessary complaints, provide differentiated product advantages, improve market reputation.

Convenient installation

An easy installing operator would be a great help for the door manufacturer or the installation team. FORCE DOOR FC 90 is designed to be compatible with both 25.4mm and 31.75mm shafts based on a coupler supplied.

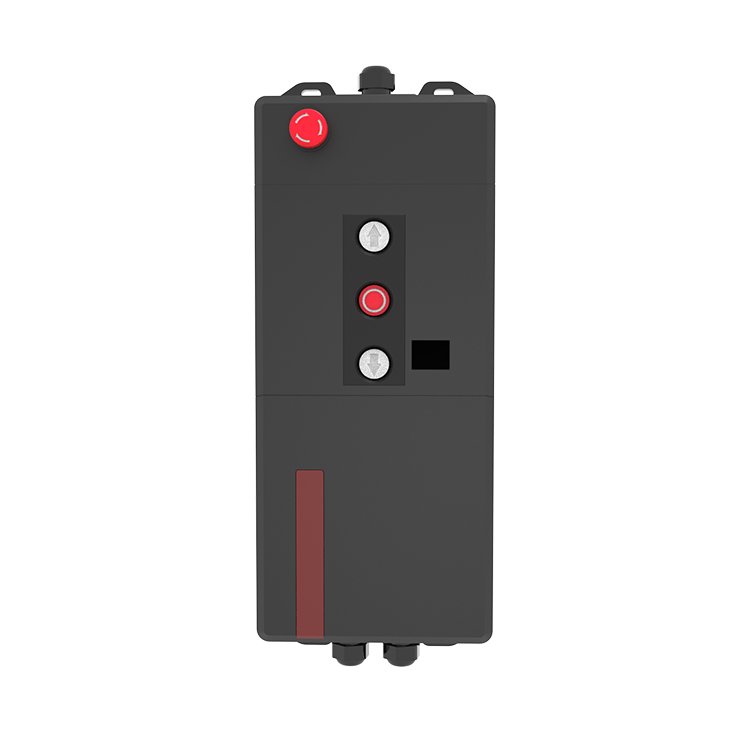

STANDARD KIT

optional accessories

BRING A SAFER EFFECT ON THE DOORS

This brings well buffer to all of the mechanical parts and operators, reduce the wearing of entire system. Greatly lengthen the service life of the doors and the operators.
At the same time, reduce unnecessary complaints, provide differentiated product advantages, improve market reputation.

An easy installing operator would be a great help for the door manufacturer or the installation team.
FORCE DOOR FC 90 is designed to be compatible with both 25.4mm and 31.75mm shafts based on a coupler supplied.
