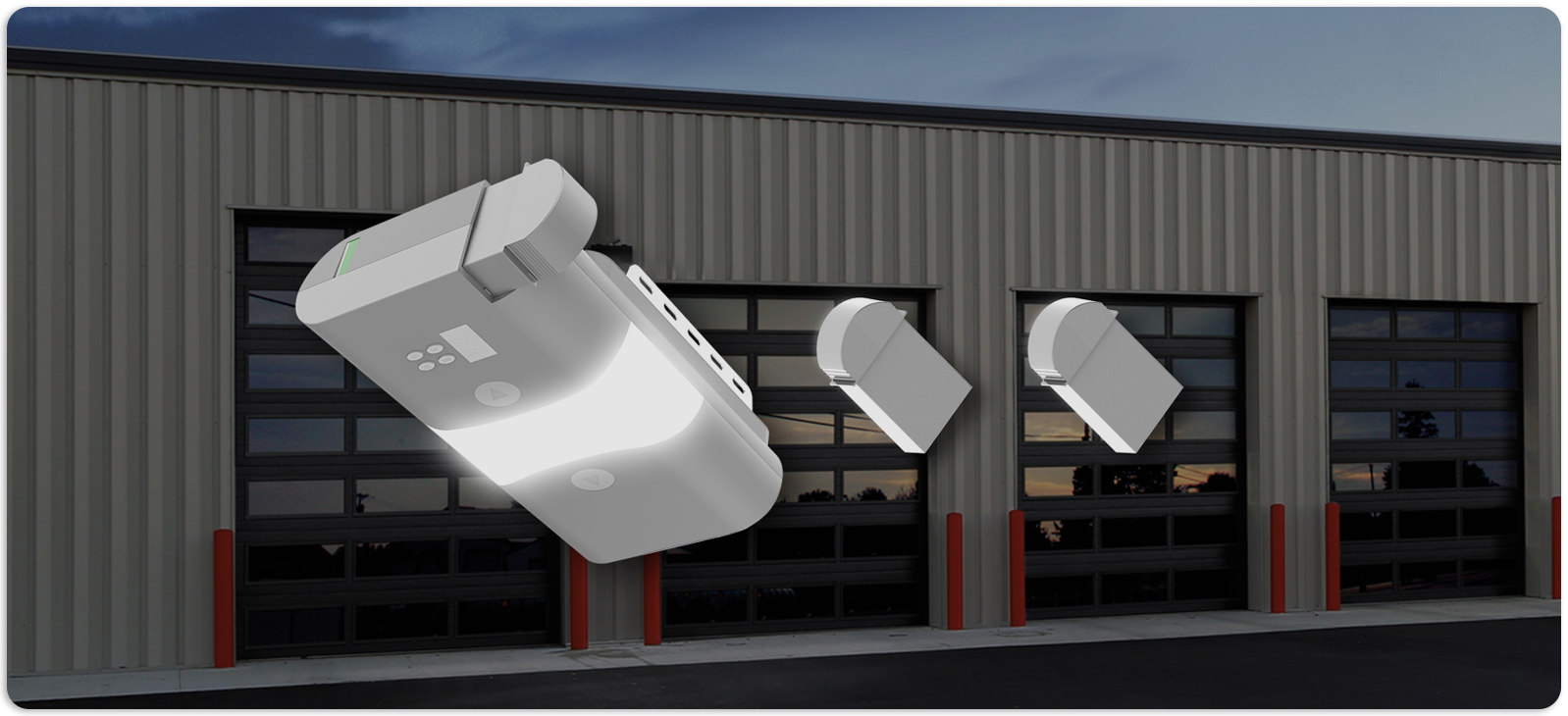

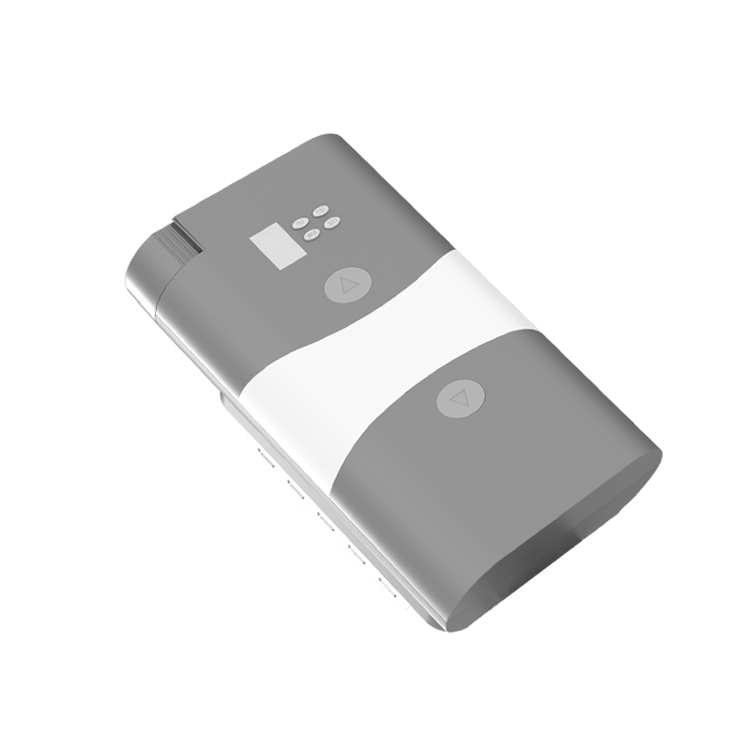

Force-Commercial Door Opener

Our commercial door opener comes in a classic gray and whitecolourway, elegant and atmospheric. 1500N lifting force design can open a maximum 25 square meters door. The aluminum rail provides a luxurious sensory experience for your home garage or public garage. The optional built-in lithium battery can deal with all sudden power outages.

PARAMETER

Model                          1500N
Max. opening speed220-240V/110-127V,50-60Hz
Max. door height160mm/second
Input voltage2400-4200mm
Bottom base material Steel
Track material                Aluminum alloy
Drive mechanism                         Chain
Max. door area
             25m²
Max. door weight                         200kg
Max lift under spring balanced                         50kg
Memory code capacity
            50pcs

TECHNOLOGY & STANDARDS

All of our door motors commercial are CE, RCM & TUV certified for the entire European & Australian market.Our products have EN12453 & EN12445.and include all of the options to make your products smart and compatible in home automation.


ALUMIINUM RAIL






Length(mm)
350040004500
For doors up(mm)
270032003700

RECOMMENDED ACCESSORIES

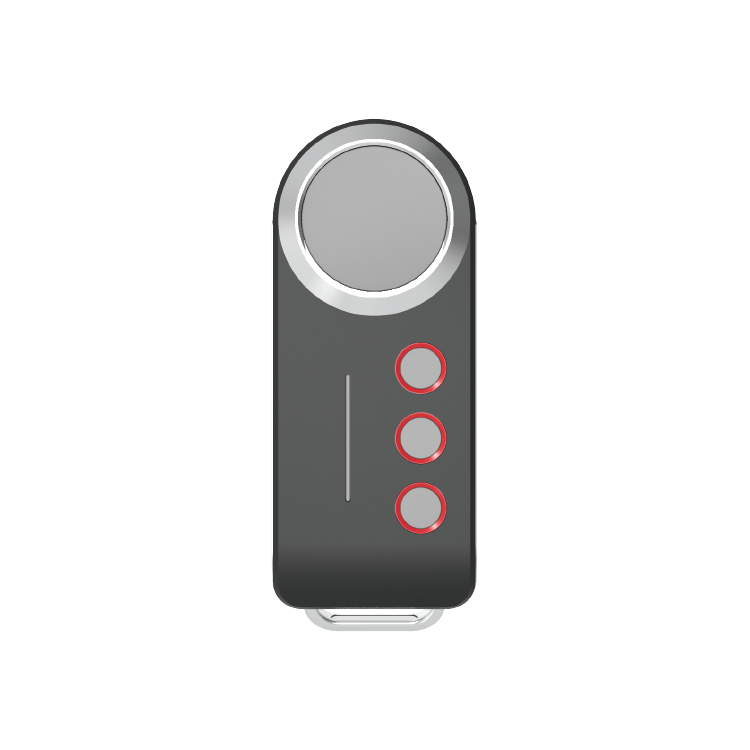

WK02

2 channels,Rolling code technology

built-in LED light (green),IP54 protection

50m control range

Power supply:3V*2

Size（mm）: 90(L)*90(H)*22(D)

Wicket Door Switch

trio-frequency technology for anti-interference

Magnetic sensor, contact-free magnetic detector

Height adjustable mounting base for the various wicket door frame

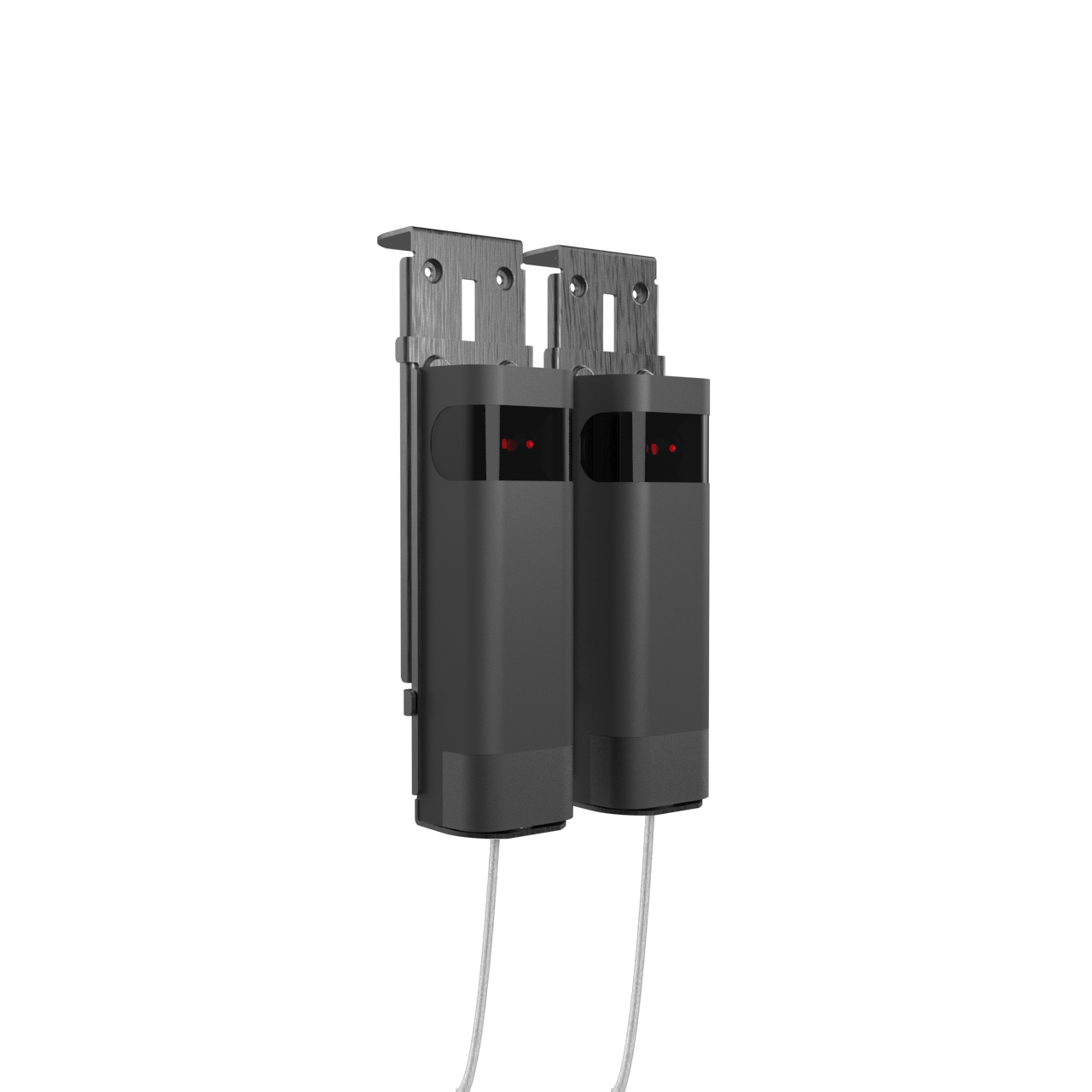

WIRED PHOTO BEAM

Effectively prevents accidents caused by unnoticed obstacles during the door closing and is particularly suitable for use in homes and public places.

Provides flexible switching between NO and NC ports to meet security setting requirements in different scenarios.
