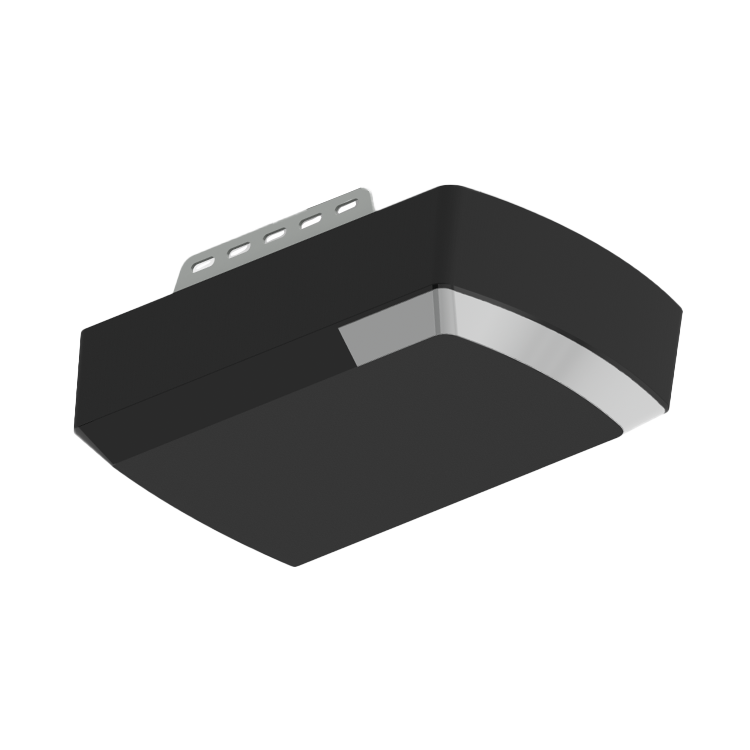

Force-Ultiamte PRO Garage Door Opener

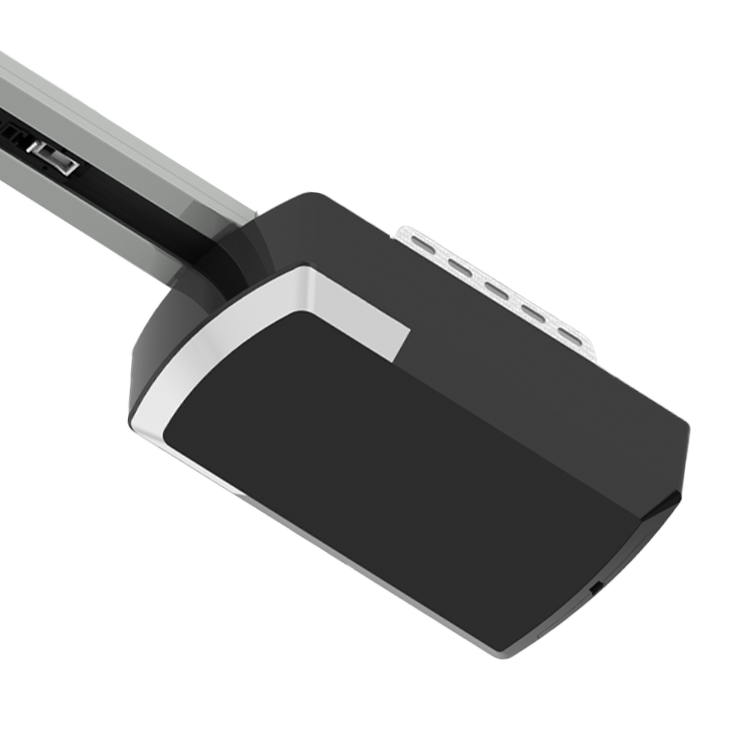

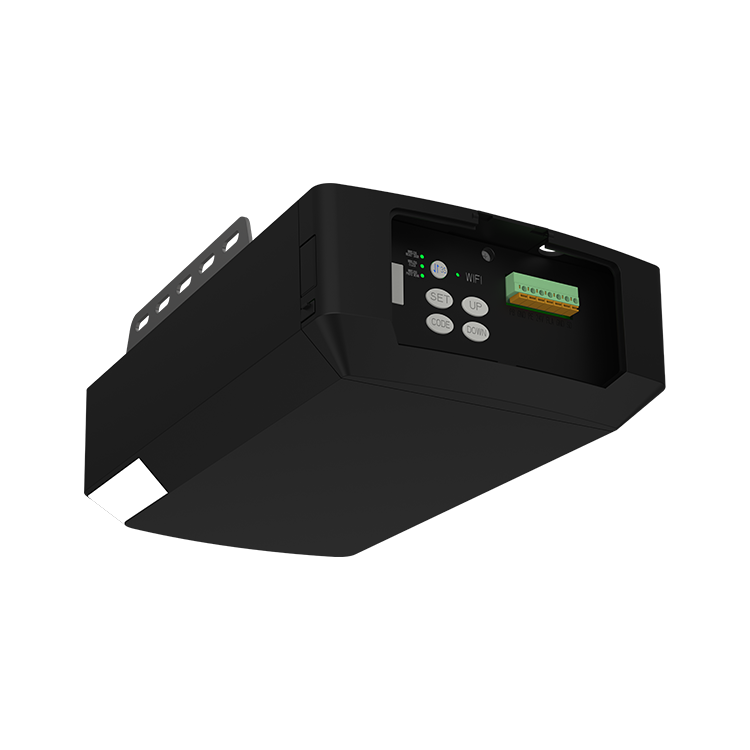

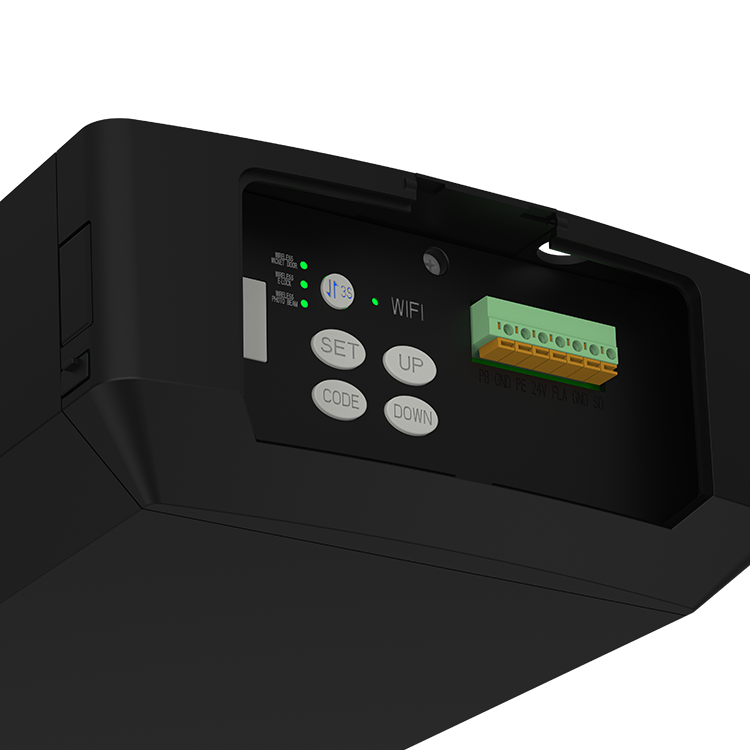

Ultimate series sectional garage door opener adopts a unique U-shaped lamp design on the basis of adhering to the design aesthetics.A bright illumination control to be usability on premium garage doors. The Ultimate series sectional garage door opener have a fast key button and screen interactive interface which is hidden below the dust cover. As a member of our premium line products, it can meet all your requirements for garage door openers.

PARAMETER

Model	600N/600N-Speed	1000N/1000N-Speed	1200N
Input voltage	220-240V/110-127V,50-60Hz
Max. opening speed	160mm/second 200mm/second
Max. door height	2400-5000mm
Bottom base material	Metal
Frequency	220-240V/110-127V,50-60Hz
Max.doorarea	7m²	11m²	13m²
Max. door weight	90kg	140kg	160kg

TECHNOLOGY & STANDARDS

All of our door motors garage are CE, RCM & TUV certified for the entire European & Australian market.Our products have EN12453 & EN12445.and include all of the options to make your products smart and compatible in home automation.

C-RAIL with chain/belt

	Single C rail	C rail-2 pieces	C rail -3 pieces

Length(mm)	3150	3300	3500	3800	4000
For doors up(mm)	2300	2450	2700	3000	3200

T-RAIL with chain

	Single T rail	T rail - 3 pieces

Length(mm)	3150	3300	3500	3800	4000
For doors up(mm)	2300	2450	2700	3000	3200

RECOMMENDED ACCESSORIES

WIRELESS WICKET DOOR

Magnetic sensor, contact-free magnetic detector.

Height adjustable mounting base for the various wicket doors frame.

Trio-Frequency technology for anti-interference.

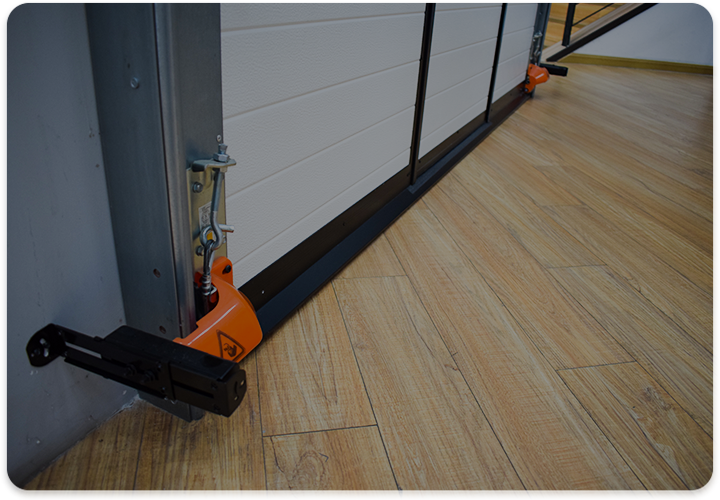

WIRELESS E-LOCK

The wireless E-Lock works automatically with garage door openers PRO version. it always locks and unlocks with every operation of the door.

WIRELESS PHOTO BEAM

Complete wireless TX and RX infrared beam with built in 3.6V lithium battery

Trio-Frequency technology for anti-interference.

Adjustable switch to adjust the infrared beam transmitting power for various environment.

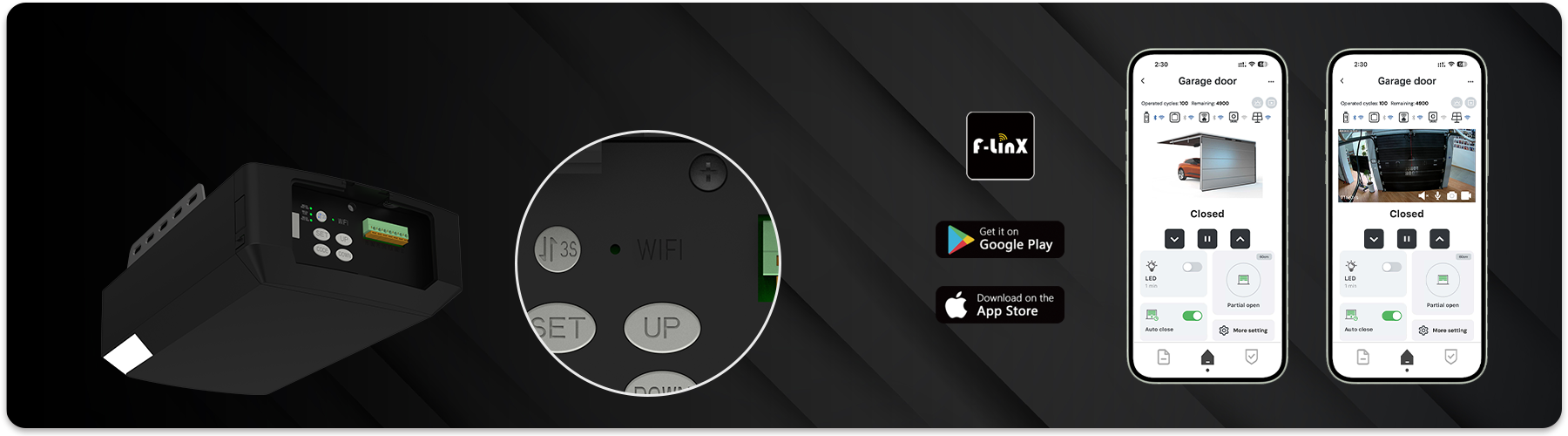

BUILT-IN WIFI
Open, close and check the status of your garage door form anywhere by F-linX APP.
Wrieless photo beam
Wireless communication using multi frequency technology,
ensure stable and reliable signal transmission.

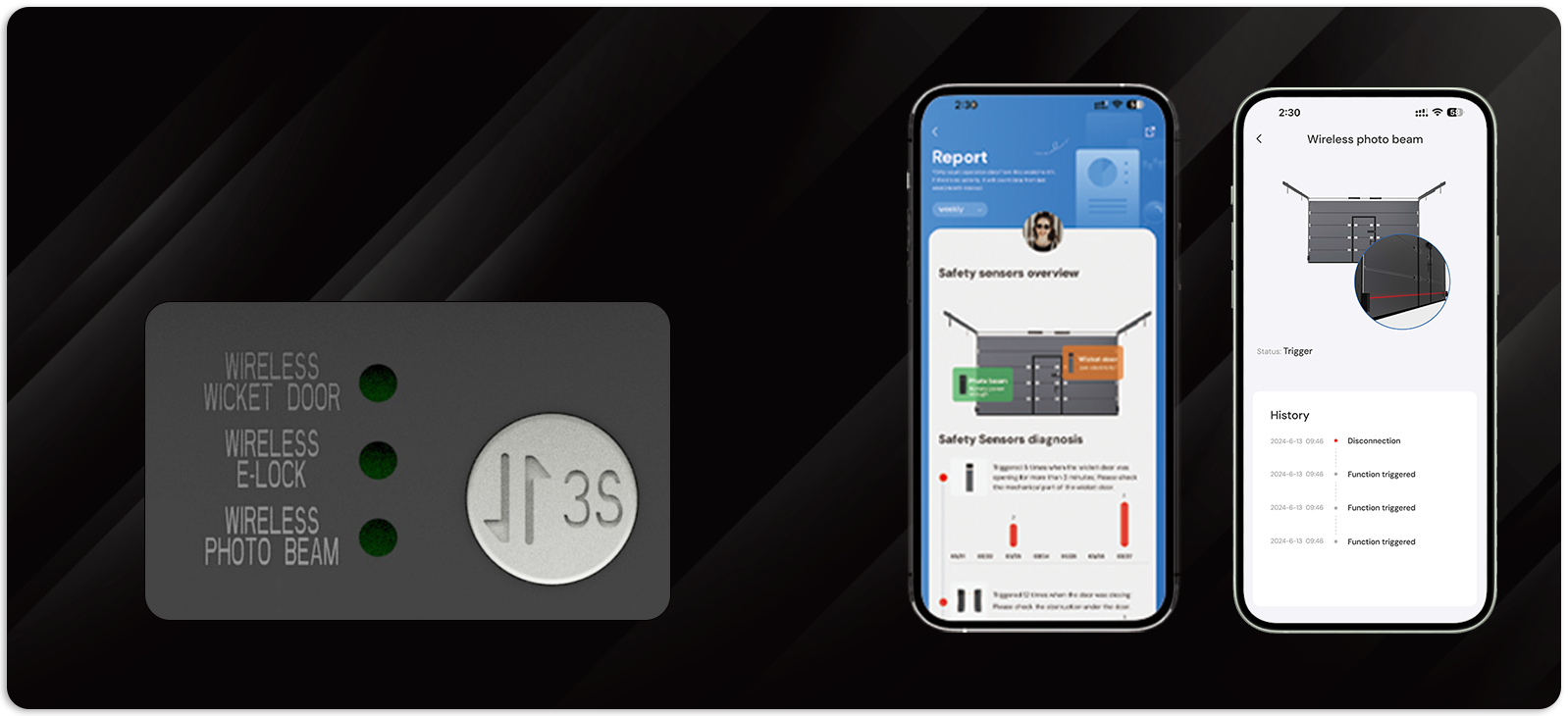

Smart safety systems
Linked with “F-linX”APP for "safety center" to track all data about safety
accessories of the door and gates.

ABOUT

PRODUCTS

MULTI DRIVE

SMART & SAFETY SYSTEMS

Force-Ultiamte Pro Garage Door Opener

FORCE-ULTIAMTE PRO

PARAMETER

TECHNOLOGY & STANDARDS

C-RAIL with chain/belt

T-RAIL with chain

FEATURES

BUILT-IN WIFI

Open, close and check the status of your garage door form anywhere by F-linX APP.

Wrieless photo beam

Wireless communication using multi frequency technology, ensure stable and reliable signal transmission.

Smart safety systems

Linked with “F-linX”APP for "safety center" to track all data about safety accessories of the door and gates.

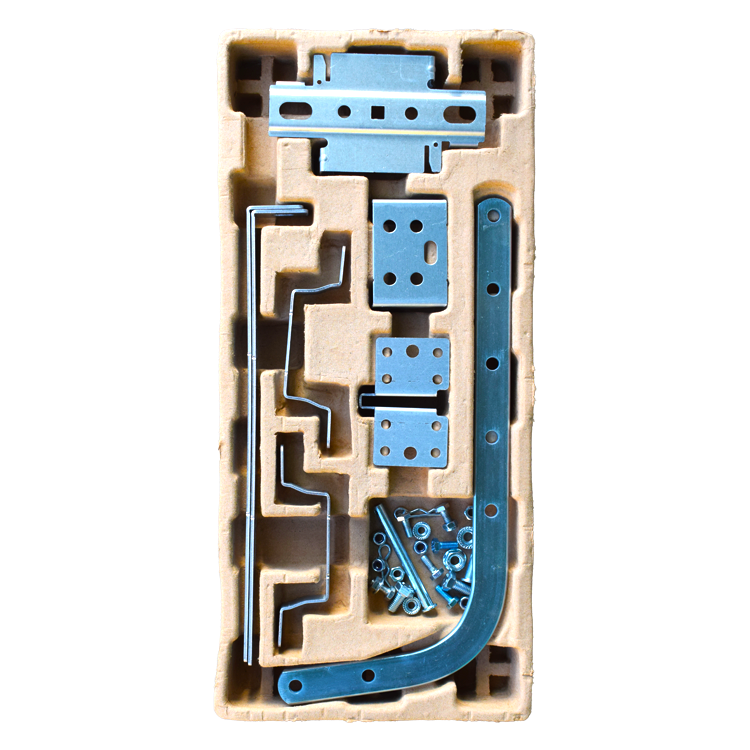

STANDARD KIT
