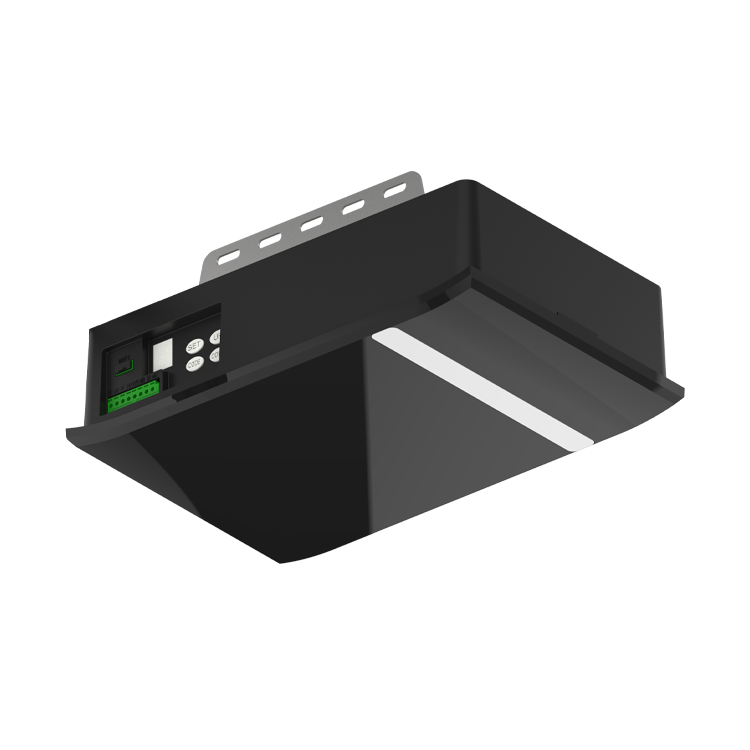

Force-OERO Garage Door Opener

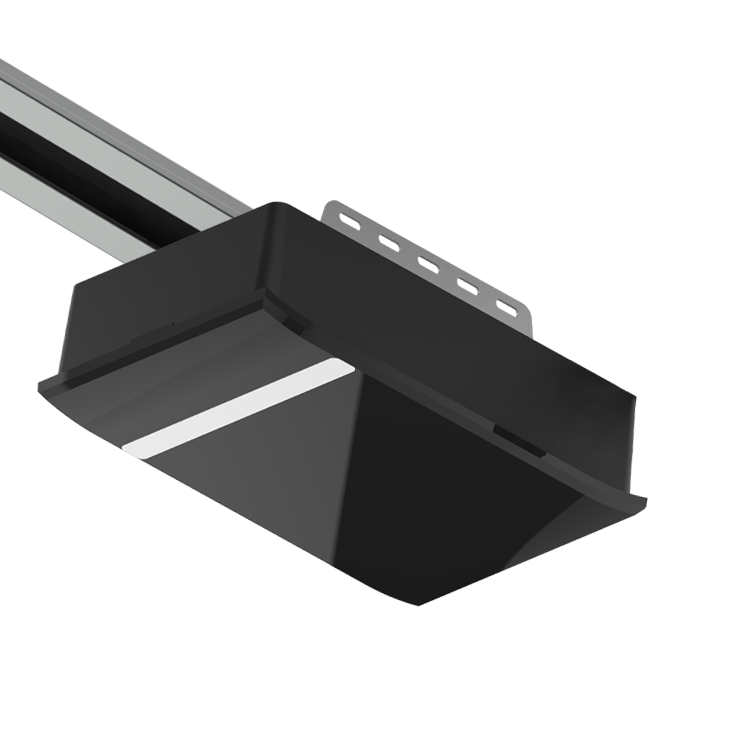

OREO series garage door opener uses an innovative black mirror cover design as well as a white horizontal LED cover design. Depending on the design, it has the compressive and tensile force of 600N, 1000N or 1200N; 600N and 1000N versions are available in the speed variant, which means that they provide faster opening and closing of the garage.

PARAMETER

Model	600N/600N-Speed	1000N/1000N-Speed	1200N
Input voltage	220-240V/110-127V,50-60Hz
Max. opening speed	160mm/second 200mm/second
Max. door height	2400-5000mm
Bottom base material	Metal
Frequency	220-240V/110-127V,50-60Hz
Max.doorarea	7m²	11m²	13m²
Max. door weight	90kg	140kg	160kg

TECHNOLOGY & STANDARDS

All of our door motors garage are CE, RCM & TUV certified for the entire European & Australian market.Our products have EN12453 & EN12445.and include all of the options to make your products smart and compatible in home automation.

C-RAIL with chain/belt

	Single C rail	C rail-2 pieces	C rail -3 pieces

Length(mm)	3150	3500	3800	4000
For doors up(mm)	2300	2700	3000	3200

T-RAIL with chain

	Single T rail	T rail - 3 pieces

Length(mm)	3150	3500	3800	4000
For doors up(mm)	2300	2700	3000	3200

RECOMMENDED ACCESSORIES

Faster opening speed
2071A motor and proper transformer conbination allow our openers reach a maximum opening speed of 240mm/s
Soft-start & Soft-stop
Adjustable speed and distance,The innovated “auto adaptive system” (AAS) brings great convenience for the installers and door manufacturers.
Partial Open Function
All of Force garage door openers with partial open function. The open height could be adjustable from 10cm to 90cm. To work with our smart phone APP and camera, easier to enter “postman mode”

ABOUT

PRODUCTS

MULTI DRIVE

SMART & SAFETY SYSTEMS

RESOURCES

Force-OERO Garage Door Opener

Force-OREO

PARAMETER

TECHNOLOGY & STANDARDS

C-RAIL with chain/belt

T-RAIL with chain

FEATURES

Faster opening speed

2071A motor and proper transformer conbination allow our openers reach a maximum opening speed of 240mm/s

Soft-start & Soft-stop

Adjustable speed and distance,The innovated “auto adaptive system” (AAS) brings great convenience for the installers and door manufacturers.

Partial Open Function

All of Force garage door openers with partial open function. The open height could be adjustable from 10cm to 90cm. To work with our smart phone APP and camera, easier to enter “postman mode”

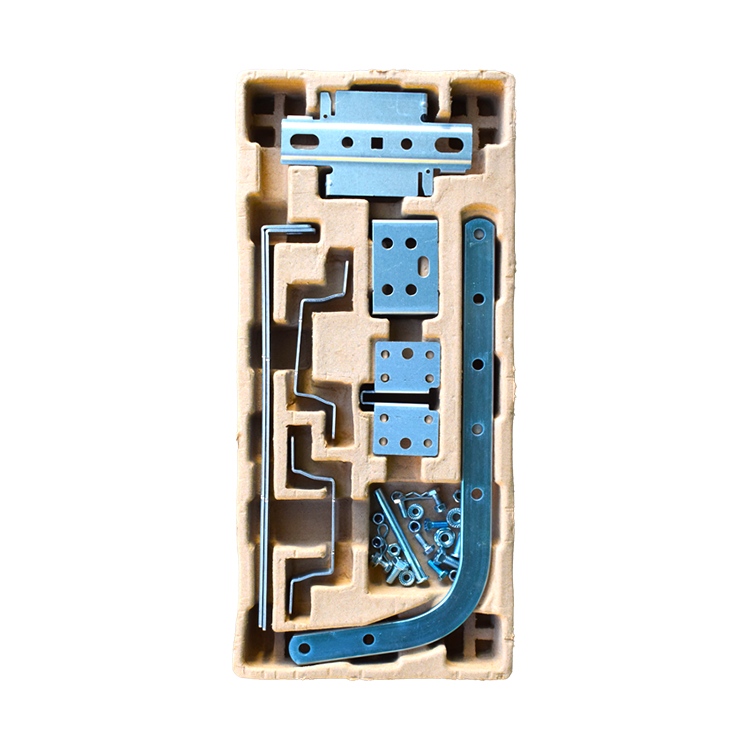

STANDARD KIT
