Force-OERO Garage Door Opener

Force-OREO

Force-OERO Garage Door Opener

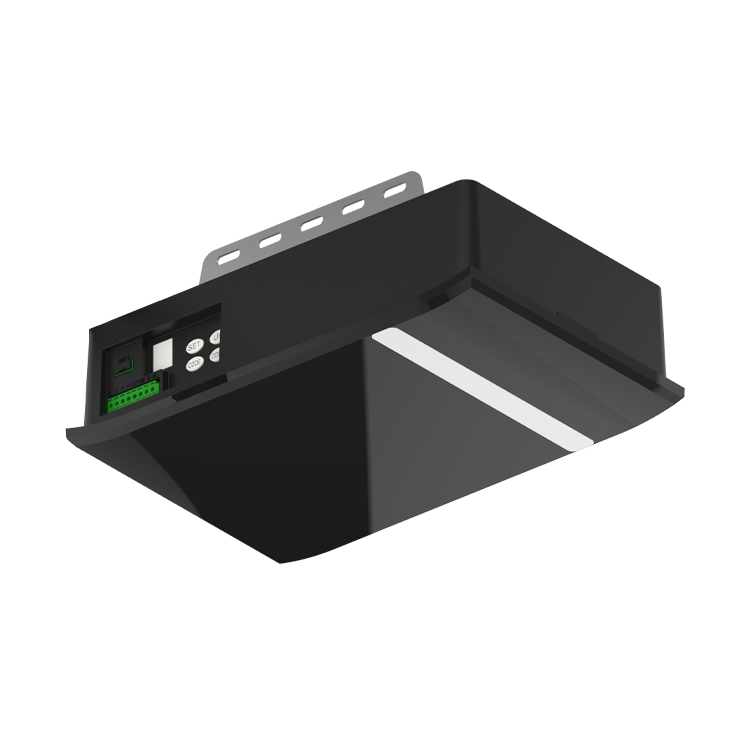

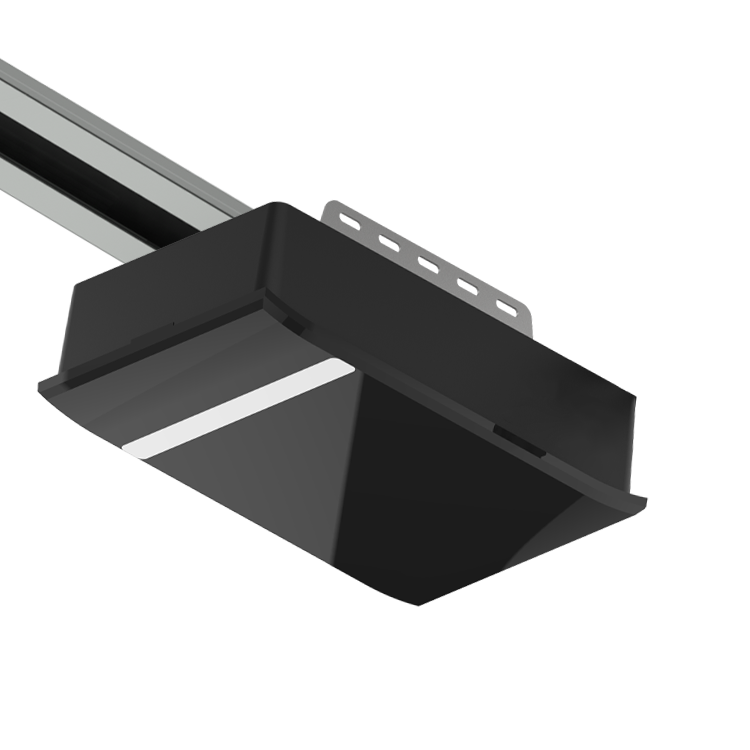

OREO series garage door opener uses an innovative black mirror cover design as well as a white horizontal LED cover design. Depending on the design, it has the compressive and tensile force of 600N, 1000N or 1200N; 600N and 1000N versions are available in the speed variant, which means that they provide faster opening and closing of the garage.

PARAMETER

Model600N/600N-Speed1000N/1000N-Speed1200N
Input voltage220-240V/110-127V,50-60Hz
Max. opening speed160mm/second 200mm/second
Max. door height2400-5000mm
Bottom base materialMetal
Frequency220-240V/110-127V,50-60Hz
Max.doorarea7m²11m² 13m²
Max. door weight90kg140kg160kg

TECHNOLOGY & STANDARDS

All of our door motors garage are CE, RCM & TUV certified for the entire European & Australian market.Our products have EN12453 & EN12445.and include all of the options to make your products smart and compatible in home automation.


C-RAIL with chain/belt


Single C railC rail-2 piecesC rail -3 pieces

Length(mm)3150350038004000
For doors up(mm)2300270030003200

T-RAIL with chain


Single T railT rail - 3 pieces

Length(mm)3150350038004000
For doors up(mm)2300270030003200
