WUXI FORCE TECHNOLOGY CO.,LTD.

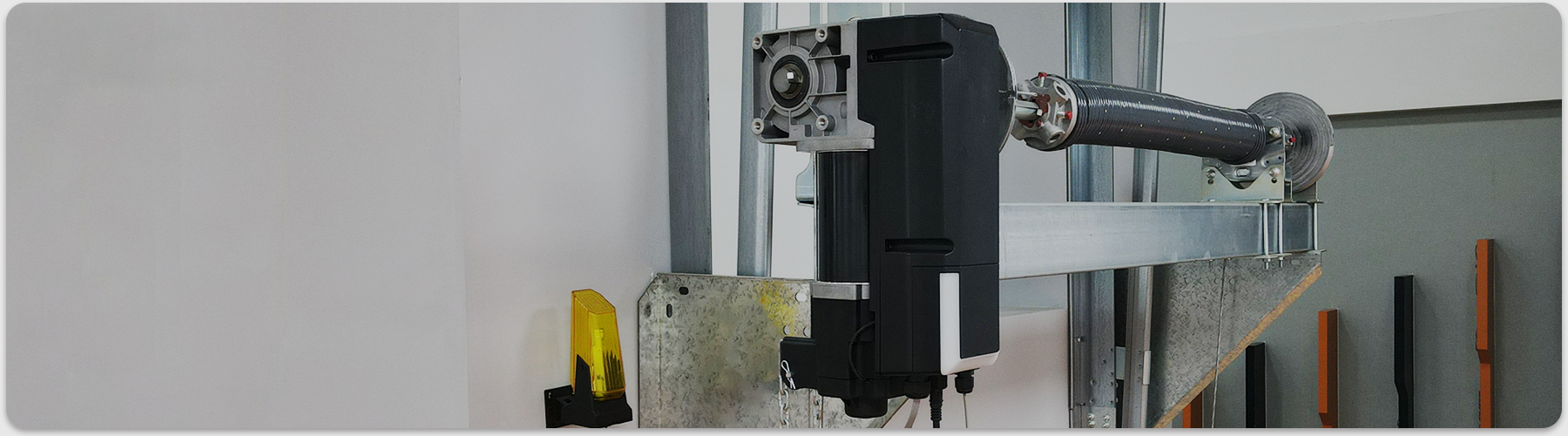

BASE 70 Industrial Door Drive

Force Door DC series industrial door operator is based on DC technology which is much safer for

the installers and end users. Besides, convenient installation provides a better choice for door

manufacturers and installers.

Recommendation:door size & weight

Standard lifting

Size & Weight

- Up To 28 M²

- Up To 364Kgs

High Lifting

Size & Weight

- Up To 28 M²

- Up To 364Kgs

Vertical lifting

Size & Weight

- Up To 24 M²

- Up To 312Kgs

PARAMETER

Max. opening speed	70Nm
Max. door height	50Nm
Input voltage	110/220(1+10%)V 50HZ
Control system	24V DC
Input voltage	0.55KW
Static holding torque		400Nm
Max. output speed		24rpm - 32rpm
Operation limit turns (limit travel)		15 turns of output shaft (max. 5.0m lifting height recommend)
Sleeve shaft diameter (standard)		Φ25.4mm
Keyway size		6.3mm
Thermal protection temperature		105℃
Continuous sound pressure level		＜70DB
Max. cycles per hour		20
IP protection class		IP54
Temperature range		- 20℃ ~ + 60℃

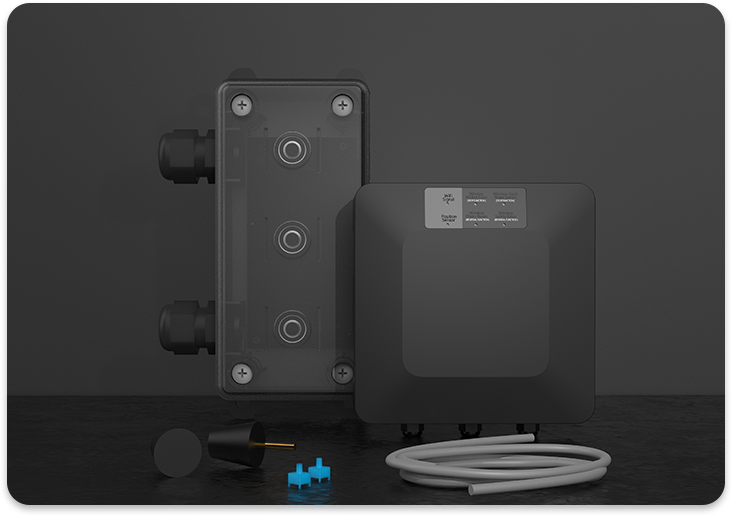

Standard kit		Drive motor & wired control box
Chain hoist module		Including
Optional edge sensors kit		Optional

RECOMMENDED ACCESSORIES

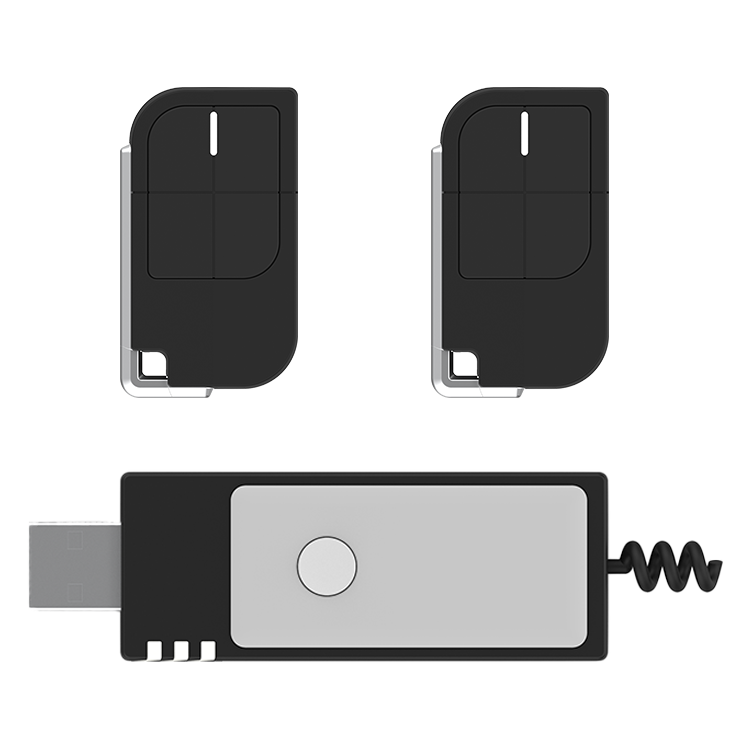

RADIO KIT

Radio kit 433 MHz

RC07 transmitter*2,433.92MHz,4 channels

Plug-in receiver*1,433.92MHz

Radio kit 868 MHz

RC07 transmitter *2,868MHz,4 channels

Plug-in receiver*1,868MHz

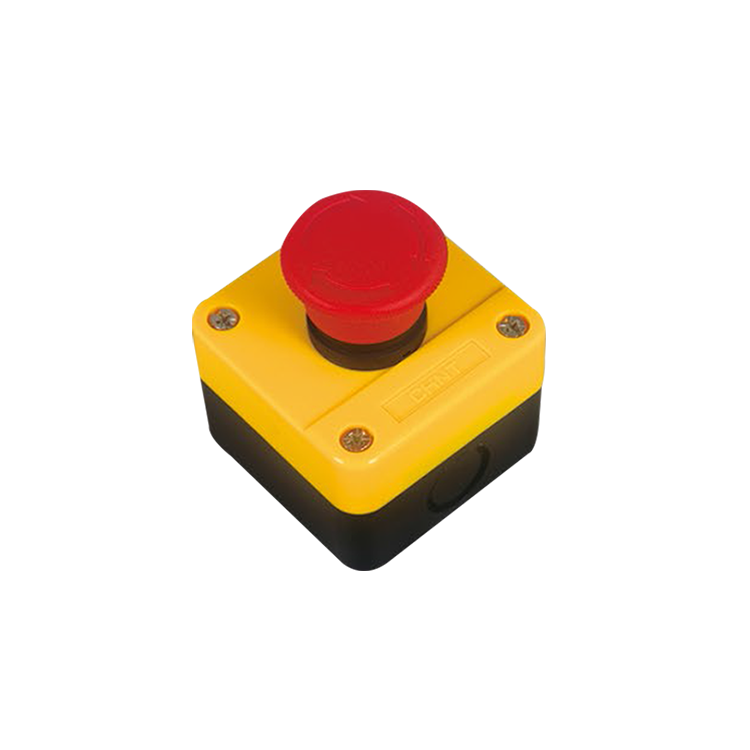

EMERGENCY STOP ASSY(POWER STOP)

Emergency stop assy-power stop with 4.5m cable

Emergency stop assy-power stop with 5.5m cable

Emergency stop assy-power stop with 6.5m cable

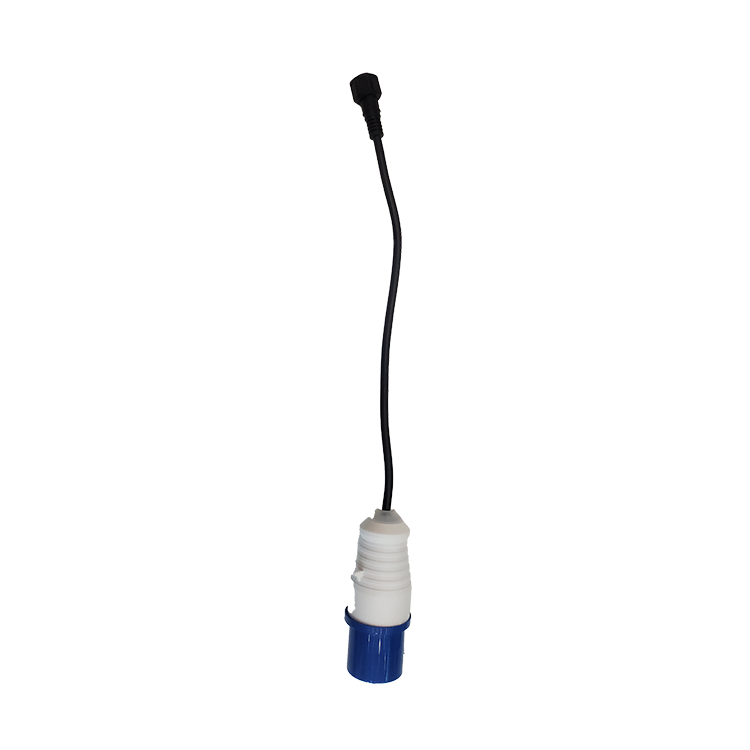

BLUE POWER PLUG

230V CEE power Blue plug with 1.5m cable

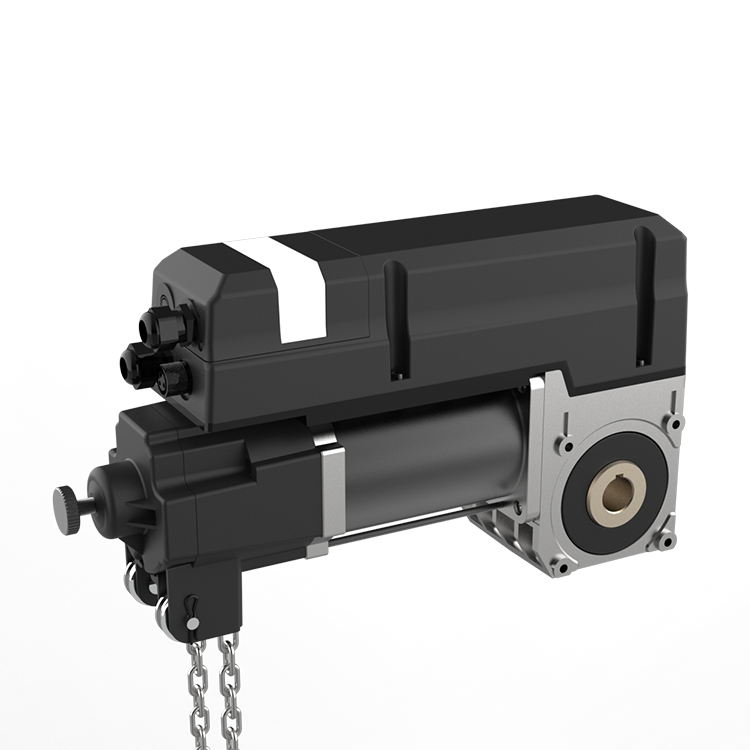

Integrated Designed Chain Hoist
The chain hoist is designed with integrated without the manual cord release,
pull or release the chain to manual dirve the garage door or industrial doors
directly.

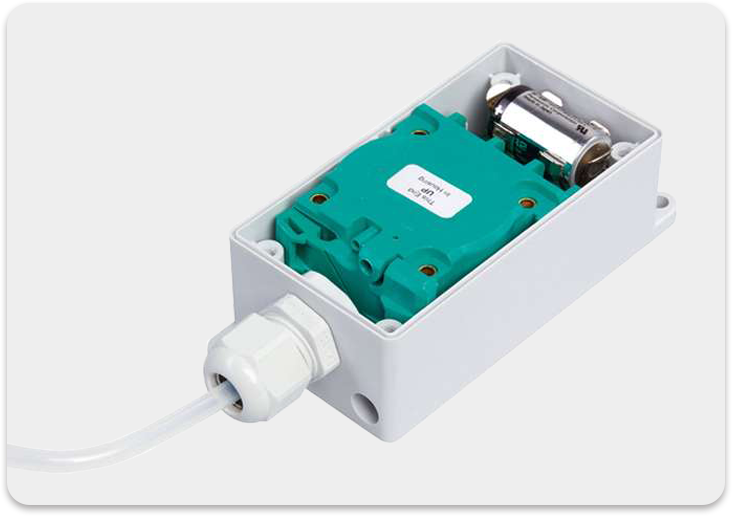

Support Air Switch (DW) Self Testing
F-LinX Wifi Monitor And Control
Fast USB wifi module is optional supplied to allow the garage door and industrial
door driver will be controlled by smart phones from "F-LinX" App.

ABOUT

PRODUCTS

MULTI DRIVE

SMART & SAFETY SYSTEMS

70Nm DC Industrial Door Drive

BASE 70

Recommendation:door size & weight

PARAMETER

FEATURES

Integrated Designed Chain Hoist

The chain hoist is designed with integrated without the manual cord release, pull or release the chain to manual dirve the garage door or industrial doors directly.

Support Air Switch (DW) Self Testing

F-LinX Wifi Monitor And Control

Fast USB wifi module is optional supplied to allow the garage door and industrial door driver will be controlled by smart phones from "F-LinX" App.

STANDARD KIT

optional accessories

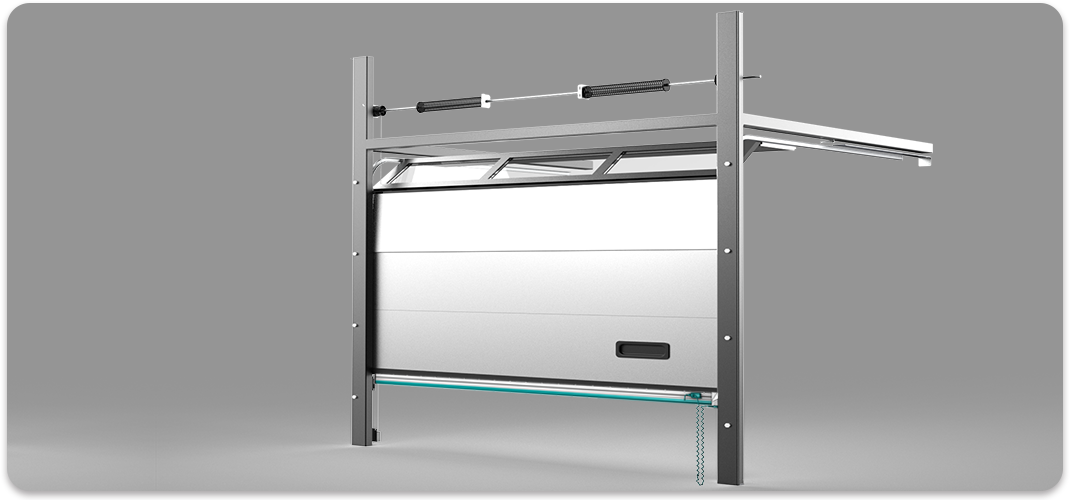

BRING A SAFER EFFECT ON THE DOORS

The chain hoist is designed with integrated without the manual cord release,
pull or release the chain to manual dirve the garage door or industrial doors
directly.

Fast USB wifi module is optional supplied to allow the garage door and industrial
door driver will be controlled by smart phones from "F-LinX" App.
