Load Shedding Protection In SA

2023-06-15

Motor standby powe 0.2W/H

Lithium Battery

Using lithium battery to drive the motor,

after 72 hours of power failure, the motor

can still operate normally




When powered on, reverse charging is

implemented, and the full charging time

≤ 4 hours






















Circuit Board

The circuit board adopts load shedding protection technology, support voltage fluctuations of 220V ↗  280V




Beneficial for self-protection

of motors and protection of

the South African power grid

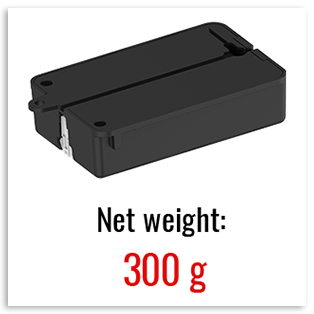

Lithium Battery







Installation Method

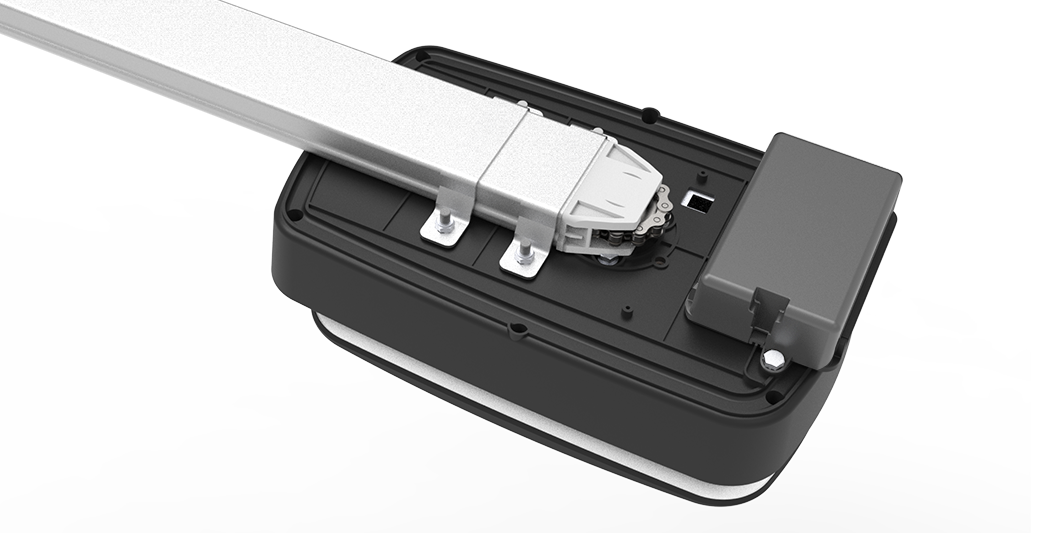

Side Installation
(with metal bottom base)

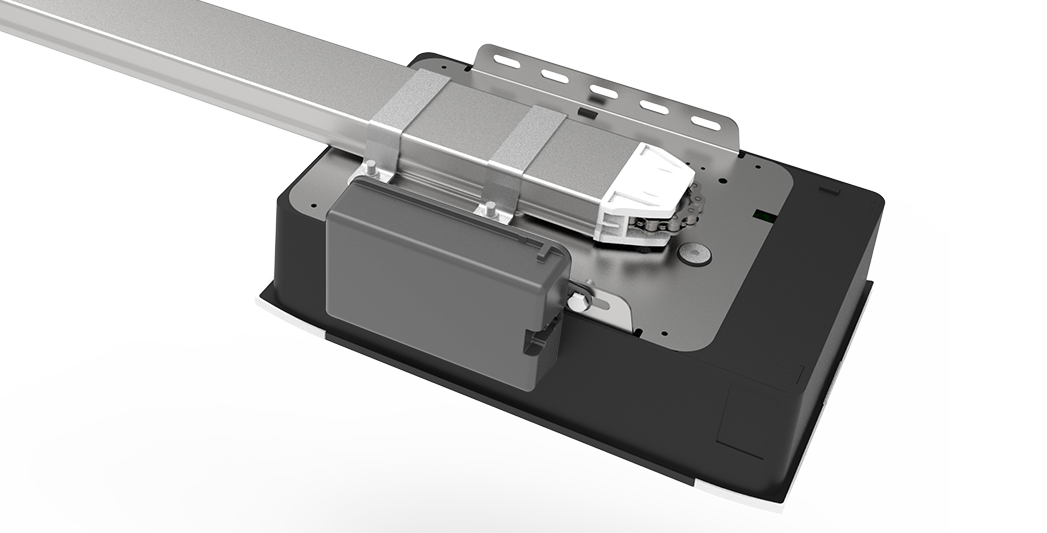

Top Installation
(with plastic bottom base)

Parameter

  • ◪Input voltage: 24 V

  • ◪Standby power (working state): Max 30.00uA

  • ◪Max. continuous charging/discharging current ≤ 10A

  • ◪PCM internal resistance: ≤ 60.00 mΩ

  • ◪Capacity: 2.0Ah

  • ◪Working temperature: -40℃ ~ +85℃

  • ◪0V charging supported
